Sutton D180SM3 25 Piece R40 Inox Jobber Drill Set - HSS
Available

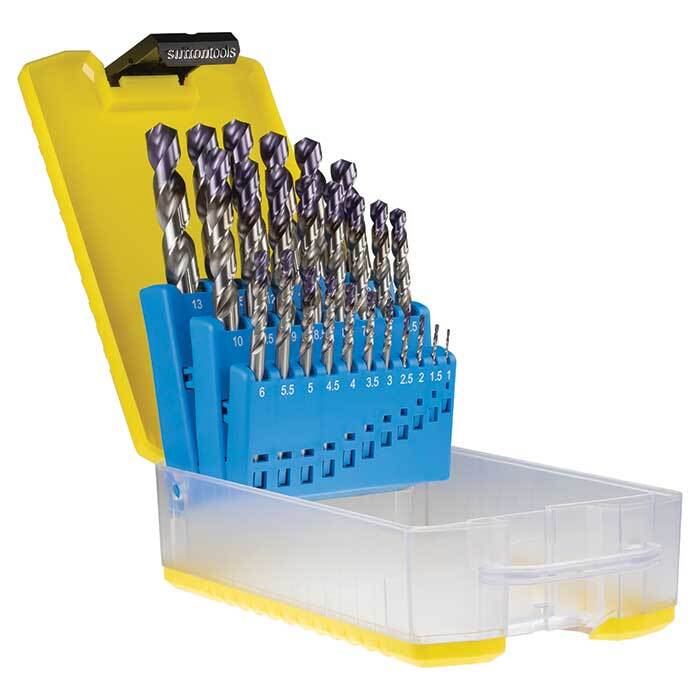

The Sutton D180SM3 is a 25-piece set of D180 R40 Inox drills in High Speed Steel (HSS), in a ABS plastic case. The set covers 1.0 – 13.0 mm × 0.5 mm steps.

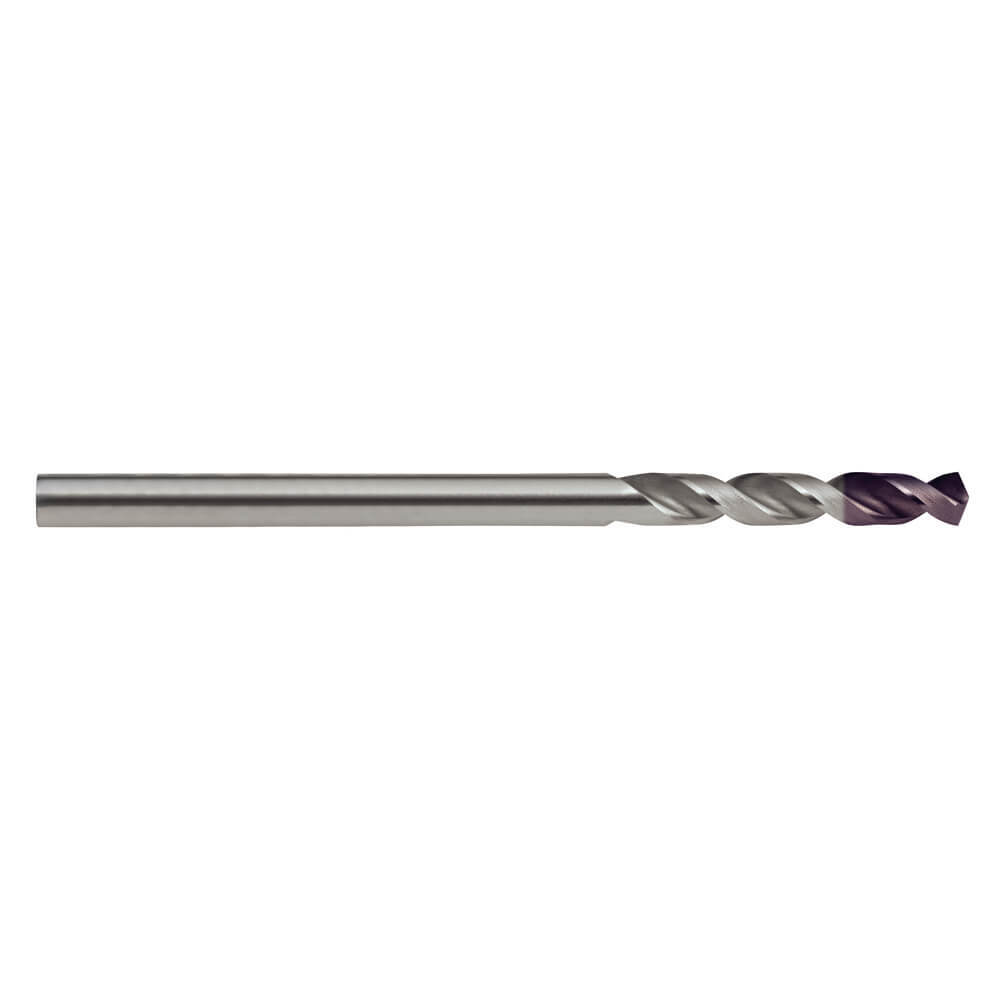

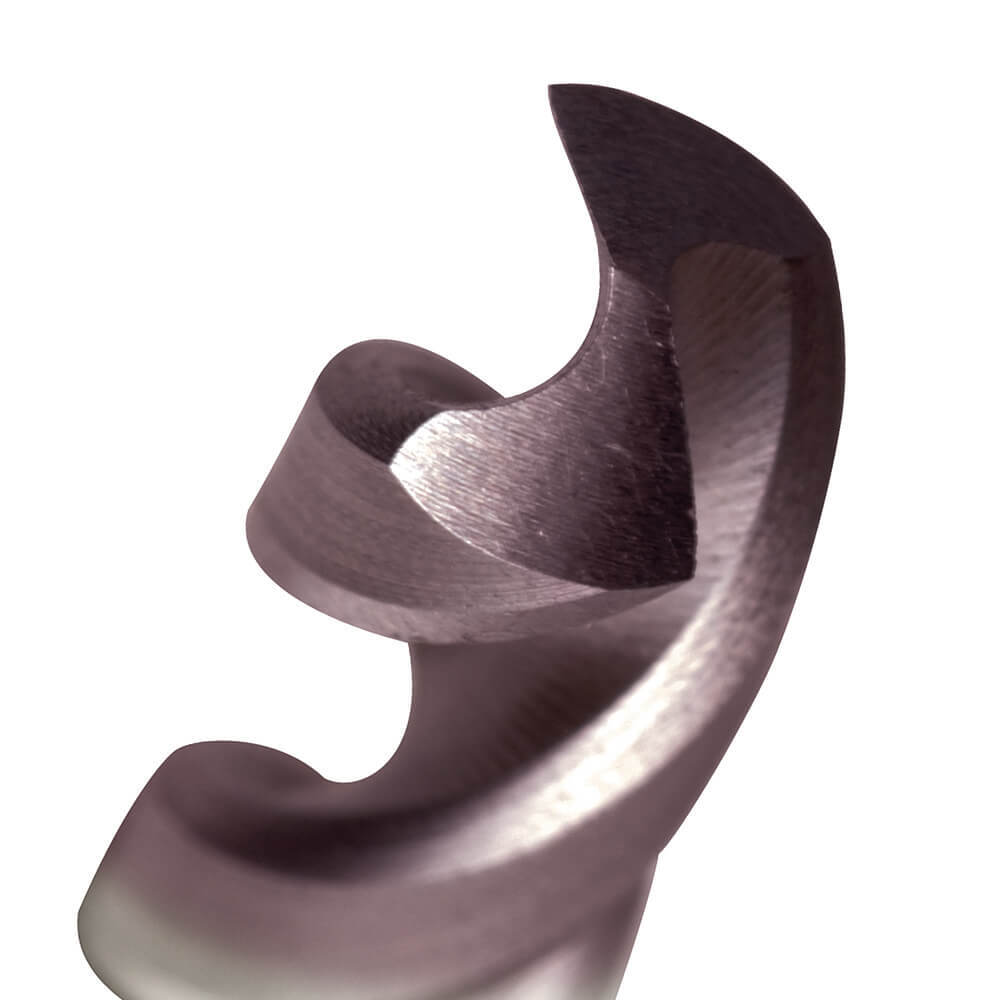

Each drill in the set has 40° right-hand helix flutes (R40), a 130° point, a TiAlN-coated tip and is made to approximately DIN 338.
What is in the set
- 25 drills: 1, 1.5, 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5, 7, 7.5, 8, 8.5, 9, 9.5, 10, 10.5, 11, 11.5, 12, 12.5, 13 mm
Drills in this set

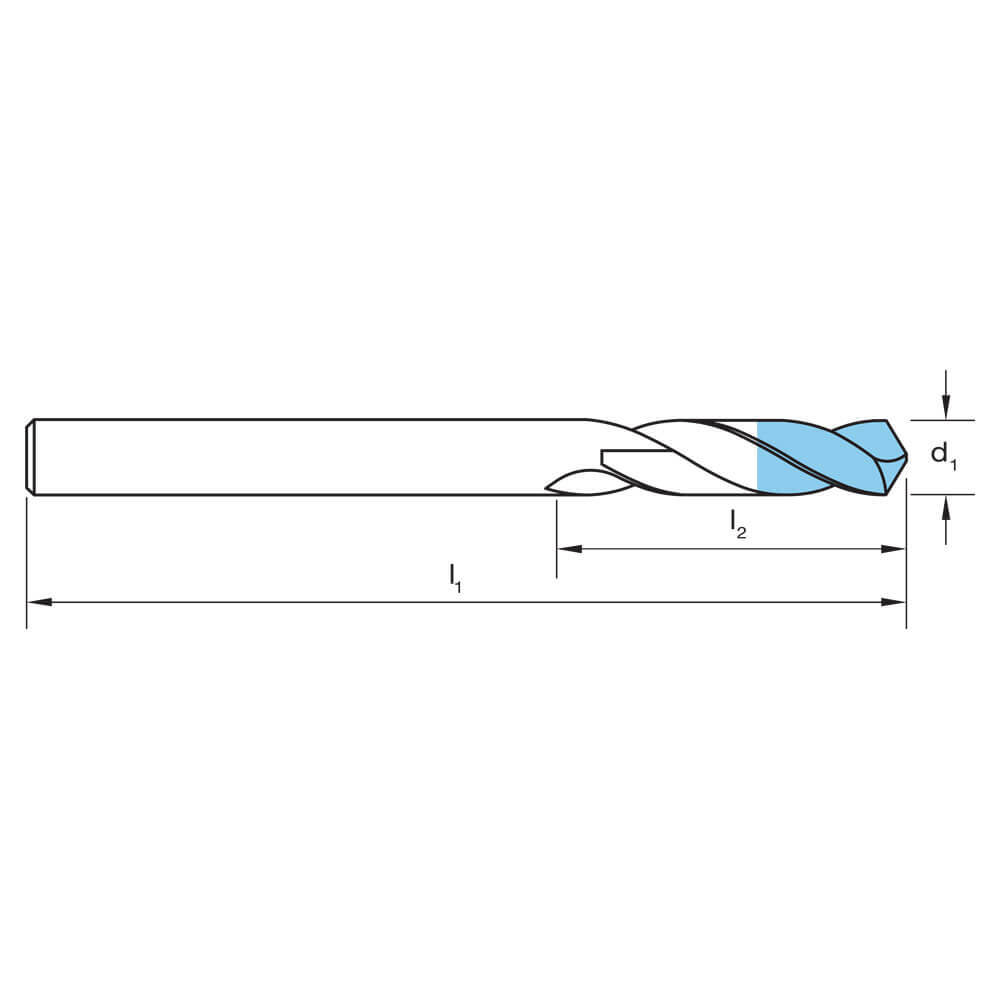

Dimensions of each drill in the set, from the individual D180 R40 Inox items of the same sizes.
| Size | Item no. | Flute length l2 (mm) | Overall length l1 (mm) |
|---|---|---|---|
| 1 mm | D180 0100 | 8 | 34 |
| 1.5 mm | D180 0150 | 11 | 40 |
| 2 mm | D180 0200 | 14 | 49 |
| 2.5 mm | D180 0250 | 16 | 57 |
| 3 mm | D180 0300 | 18 | 61 |
| 3.5 mm | D180 0350 | 22 | 70 |
| 4 mm | D180 0400 | 25 | 75 |
| 4.5 mm | D180 0450 | 28 | 80 |
| 5 mm | D180 0500 | 32 | 86 |
| 5.5 mm | D180 0550 | 36 | 93 |
| 6 mm | D180 0600 | 36 | 93 |
| 6.5 mm | D180 0650 | 40 | 101 |
| 7 mm | D180 0700 | 45 | 109 |
| 7.5 mm | D180 0750 | 45 | 109 |
| 8 mm | D180 0800 | 51 | 117 |
| 8.5 mm | D180 0850 | 51 | 117 |
| 9 mm | D180 0900 | 57 | 125 |
| 9.5 mm | D180 0950 | 57 | 125 |
| 10 mm | D180 1000 | 63 | 133 |
| 10.5 mm | D180 1050 | 63 | 133 |
| 11 mm | D180 1100 | 71 | 142 |
| 11.5 mm | D180 1150 | 71 | 142 |
| 12 mm | D180 1200 | 78 | 151 |
| 12.5 mm | D180 1250 | 78 | 151 |
| 13 mm | D180 1300 | 78 | 151 |
Where this product is used
- General drilling across the materials rated for D180 R40 Inox drills.
- Materials rated Optimal for the D180: non-alloy steel, about 0.15 %C, annealed; non-alloy steel, about 0.45 %C, annealed; low-alloy steel (under 5% alloying elements), annealed; austenitic stainless steel; duplex stainless steel; wrought aluminium and magnesium alloys; and cast aluminium and magnesium alloys (up to 12% Si).
- Austenitic stainless steels and soft materials, the main targets of this drill (short flute length for rigidity, stepped core for penetration).
Finish
TiAlN tip. TiAlN has a microhardness of 3300 HV and thermal stability to about 900 °C (1652 °F), and is used for difficult-to-machine materials such as stainless steel and for higher speeds and feeds.
Cutting speeds and feeds
Cutting speeds (Vc) and feed numbers are given for the D180. Speed (rpm) = Vc × 1000 ÷ (π × Ø); treat these as starting values.
| Material (VDI 3323 group) | Rating | Vc (m/min) | Feed no. | Ø6 mm: rpm / feed | Ø10 mm: rpm / feed |
|---|---|---|---|---|---|
| Non-alloy steel, about 0.15 %C, annealed | Optimal | 20 | 4 | 1,060 rpm / 0.1 mm/rev | 635 rpm / 0.16 mm/rev |
| Non-alloy steel, about 0.45 %C, annealed | Optimal | 16 | 4 | 850 rpm / 0.1 mm/rev | 510 rpm / 0.16 mm/rev |
| Non-alloy steel, about 0.45 %C, quenched and tempered | Effective | 12 | 4 | 635 rpm / 0.1 mm/rev | 380 rpm / 0.16 mm/rev |
| Non-alloy steel, about 0.75 %C, annealed | Effective | 12 | 4 | 635 rpm / 0.1 mm/rev | 380 rpm / 0.16 mm/rev |
| Low-alloy steel (under 5% alloying), annealed | Optimal | 12 | 4 | 635 rpm / 0.1 mm/rev | 380 rpm / 0.16 mm/rev |
| Low-alloy steel, quenched and tempered (275 HB) | Effective | 12 | 4 | 635 rpm / 0.1 mm/rev | 380 rpm / 0.16 mm/rev |
| Ferritic / martensitic stainless steel | Effective | 7 | 4 | 370 rpm / 0.1 mm/rev | 225 rpm / 0.16 mm/rev |
| Austenitic stainless steel | Optimal | 12 | 4 | 635 rpm / 0.1 mm/rev | 380 rpm / 0.16 mm/rev |
| Duplex stainless steel | Optimal | 10 | 4 | 530 rpm / 0.1 mm/rev | 320 rpm / 0.16 mm/rev |
| Precipitation-hardening stainless steel | Effective | 7 | 3 | 370 rpm / 0.08 mm/rev | 225 rpm / 0.125 mm/rev |
| Wrought aluminium and magnesium, non heat treatable | Optimal | 50 | 6 | 2,650 rpm / 0.16 mm/rev | 1,590 rpm / 0.24 mm/rev |
| Wrought aluminium and magnesium, heat treatable | Optimal | 50 | 6 | 2,650 rpm / 0.16 mm/rev | 1,590 rpm / 0.24 mm/rev |
| Cast aluminium and magnesium (up to 12% Si), non heat treatable | Optimal | 40 | 5 | 2,120 rpm / 0.125 mm/rev | 1,270 rpm / 0.19 mm/rev |
| Cast aluminium over 12% Si | - | 30 | 5 | 1,590 rpm / 0.125 mm/rev | 955 rpm / 0.19 mm/rev |
| Copper alloys, free cutting (Pb > 1%) | Effective | 50 | 5 | 2,650 rpm / 0.125 mm/rev | 1,590 rpm / 0.19 mm/rev |
| Bronze (CuSn) | Effective | 30 | 5 | 1,590 rpm / 0.125 mm/rev | 955 rpm / 0.19 mm/rev |
| Thermosetting and fibre-reinforced plastics | Effective | 50 | 4 | 2,650 rpm / 0.1 mm/rev | 1,590 rpm / 0.16 mm/rev |
Key specifications
| Specification | Detail |
|---|---|
| Set number | D180SM3 |
| Catalogue code | D180 R40 Inox |
| Pieces | 25 |
| Size range | 1.0 – 13.0 mm × 0.5 mm rises |
| Case | ABS plastic case |
| Material | High Speed Steel (HSS) |
| Finish | TiAlN tip |
| Flute geometry | 40° right-hand helix (R40) |
| Standard | ~DIN 338 |
Related drilling products
Individual drills from this range are in the Jobber Drill Bits collection; sets are in the Metric Jobber Drill Sets and Imperial Jobber Drill Sets collections. Our speeds and feeds chart and troubleshooting guide help with speeds and problem solving.
