Description

Descriptions

  • Short flute length jobber drill
  • Cost effective solution for austenitic stainless steels and soft materials

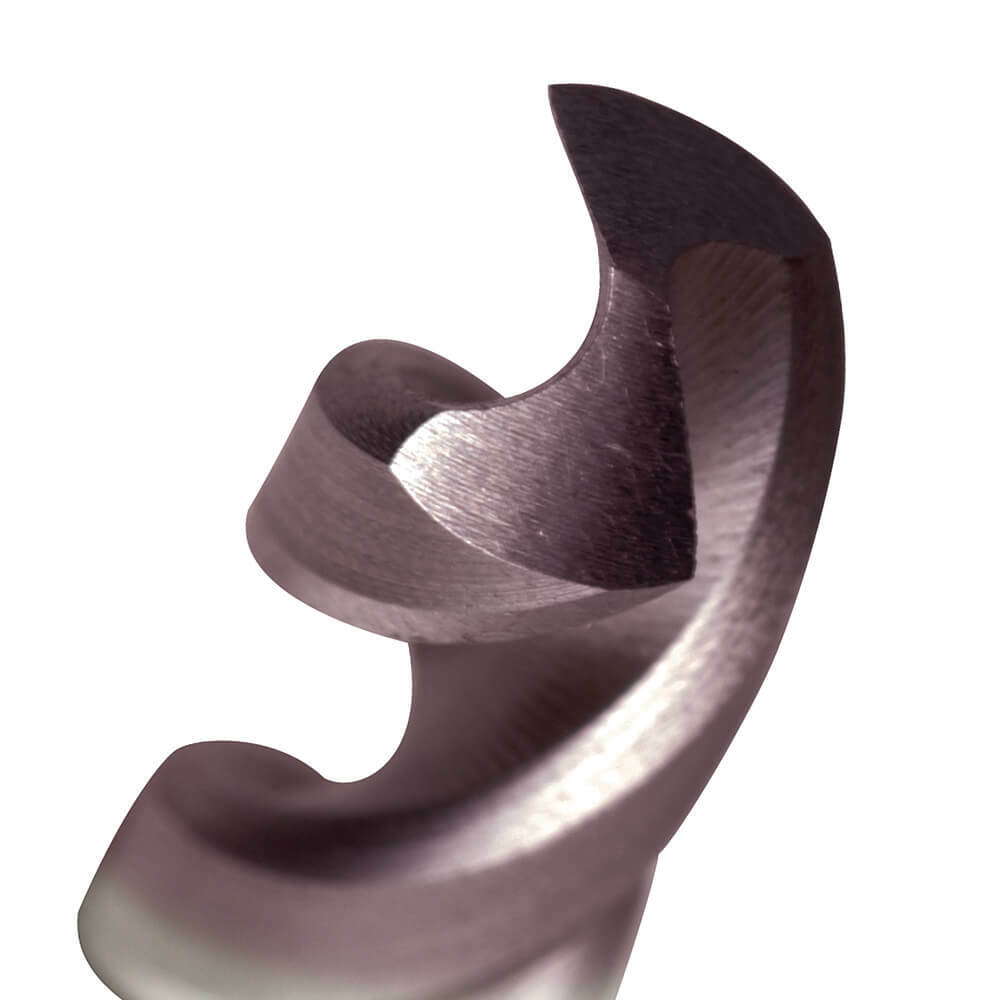

  • Unique stepped core for excellent penetration
  • TiAlN tip for good wear resistance

Features

  • Jobber Drill R40 InOx unique stepped core
  • For excellent penetration tiAlN tip
  • For good wear resistance

Specifications

  • Designation: VA
  • Material: High Speed Steel
  • Finish: TiAIN Tip
  • Maximum Cut Depth: 3XD
  • Shank Form: A
  • Helix Angle: R40
  • X: als
  • Point Tolerance: h8
  • Point Angle: 130°
  • Point Form: Form B
  • Cutting Edges: ul
  • Standard: DIN 338

Applications

  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
  • Optimal for Stainless Steel – Austenitic- 180 HB
  • Optimal for Stainless Steel – Duplex- 250 HB
  • Optimal for Aluminum & Magnesium, wrought alloy - Non Heat Treatable – 60 HB
  • Optimal for Aluminum & Magnesium, wrought alloy - Heat Treatable – 100 HB
  • Optimal for Aluminum & Magnesium, cast alloy ≤12% Si - Non Heat Treatable – 75 HB
  • Optimal for Aluminum & Magnesium, cast alloy ≤12% Si - Heat Treatable – 90 HB

Specifications

  • AIMS SKU A0006344
  • Brand Sutton Tools
  • Model Number D1801230
  • Barcode Number 9311963441597

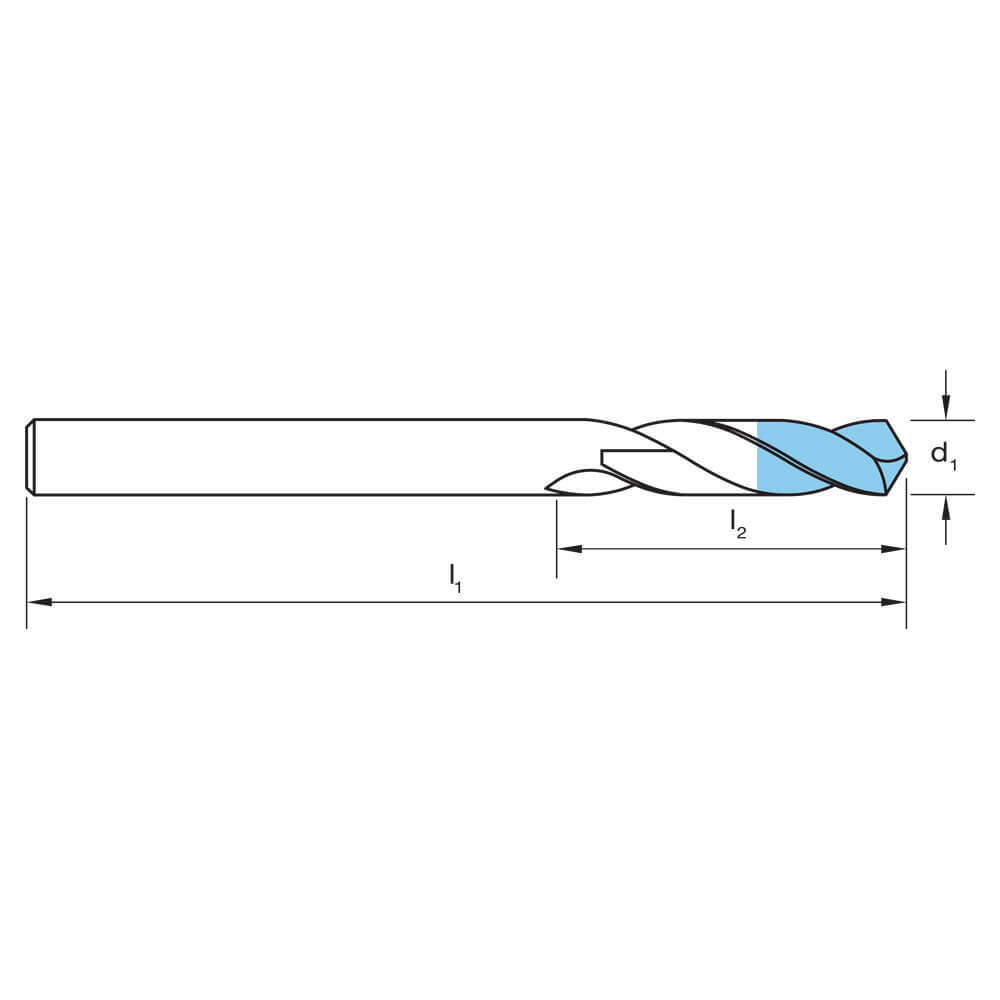

  • Thread Diameter (mm) 12.3
  • Overall Length (mm) 151
  • Flute Length (mm) 78
  • Group Code D180
  • Type Jobber Drill Bit
  • System of Measurement Metric,DIN 338
  • Material High Speed Steel (HSS)
  • Finish Titanium Aluminium Nitride Tip (TiAIN Tip)
  • Helix Angle R40
  • Maximum Cut Depth 3XD
  • Shank Form A
  • Point Form B
  • Point Tolerance h8
  • Point Angle 130
SKU: A0006344

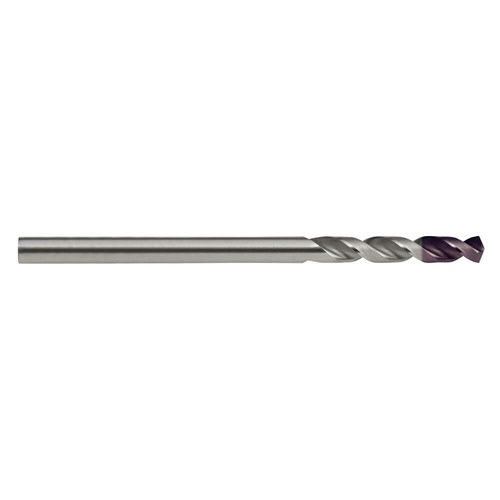

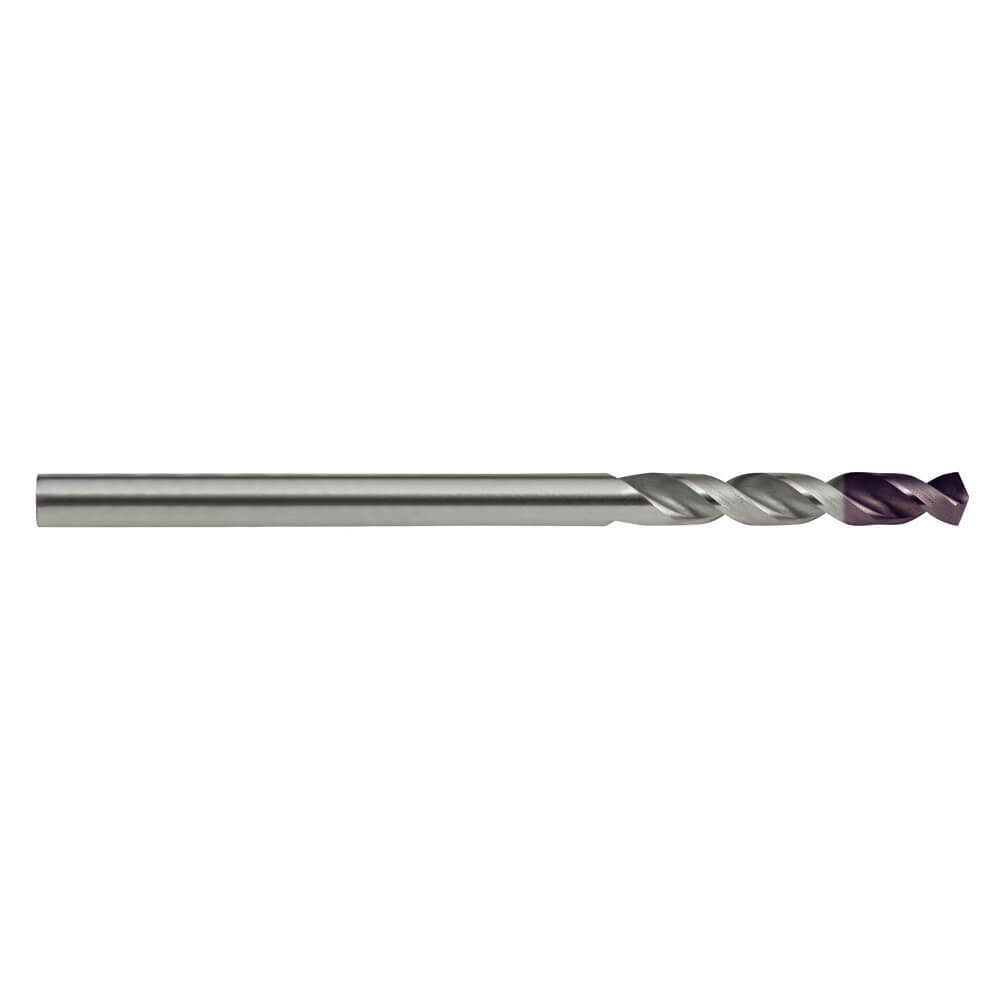

Sutton D1801230 12.3mm R40 Inox Jobber Drill Bit - HSS TiAlN - Pack of 5

Sutton Tools Jobber Drill Bits - R40 Inox

$205.21
RRP $320.05
SAVE $114.84 (36%)
