Description

Descriptions

  • General purpose drill
  • Split point for easier penetration
  • Designed for machine and hand-held drilling

Features

  • Jobber Drill Viper Plus for easier penetration
  • Split point for easier penetration
  • Designed for machine and hand-held drilling
  • TiAlN for longer tool life

Specifications

  • Designation: N
  • Material: High Speed Steel
  • Finish: TiAIN Tip
  • Maximum Cut Depth: 5XD
  • Shank Form: A
  • Helix Angle: R30
  • X: als
  • Point Tolerance: h8
  • Point Type: 118° Form C
  • Cutting Edges: ul
  • Standard: ANSI B94-11/DIN 338

Applications

  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 250 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 270 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 275 HB
  • Optimal for Steel - High alloy, cast & tool- 200 HB
  • Optimal for Cast Iron, Grey (GG) - Ferritic / Pearlitic- 180 HB
  • Optimal for Cast Iron, Nodular (GGG) - Ferritic- 160 HB
  • Optimal for Cast Iron, Malleable – Ferritic- 130 HB

Specifications

  • AIMS SKU A0006073
  • Brand Sutton Tools
  • Model Number D1790180
  • Barcode Number 9311963578552
  • Thread Diameter (mm) 1.8
  • Overall Length (mm) 46
  • Flute Length (mm) 22
  • Group Code D179
  • Type Jobber Drill Bit
  • System of Measurement Metric,ANSI B94-11,DIN 338
  • Material High Speed Steel (HSS)
  • Finish Titanium Aluminium Nitride Tip (TiAIN Tip)
  • Helix Angle R30
  • Point Tolerance h8
  • Shank Form A
  • Maximum Cut Depth 5XD
  • Point Form 118 Form C
SKU: A0006073 On Sale

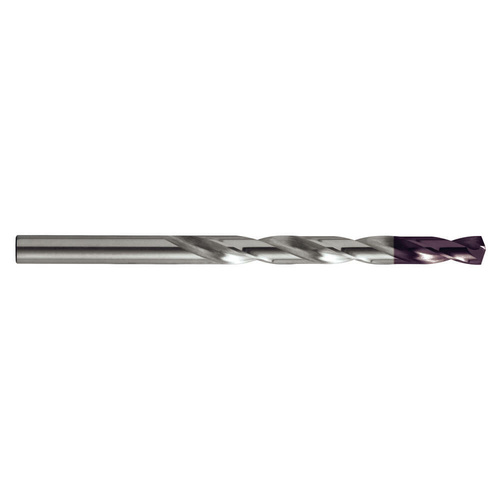

Sutton D1790180 1.8mm Jobber Viper Plus Drill Bit - HSS TiAlN - Pack of 10

Sutton Tools Jobber Drill Bits - Viper Plus

$23.10
$33.00
