Description

Descriptions

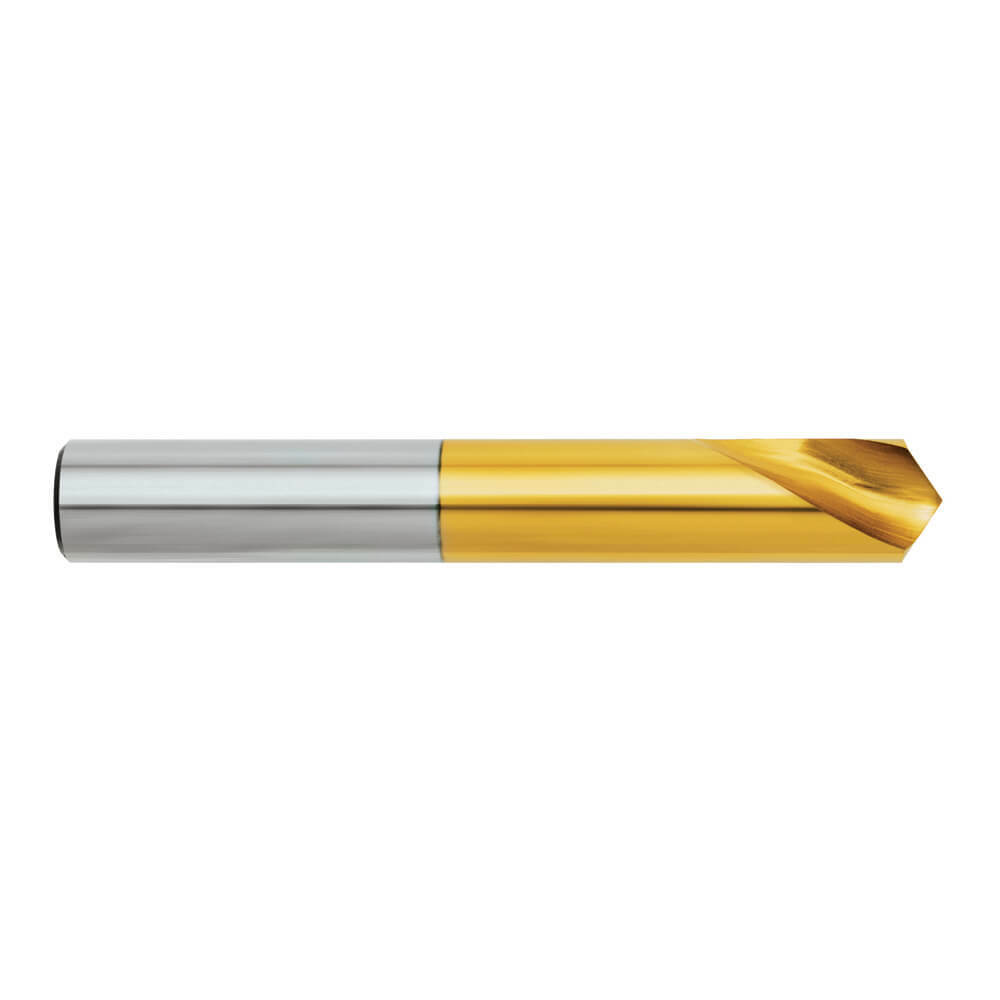

  • Precision drill for machine use
  • Refer to Carbide Drill section for VHM Spotting Drills

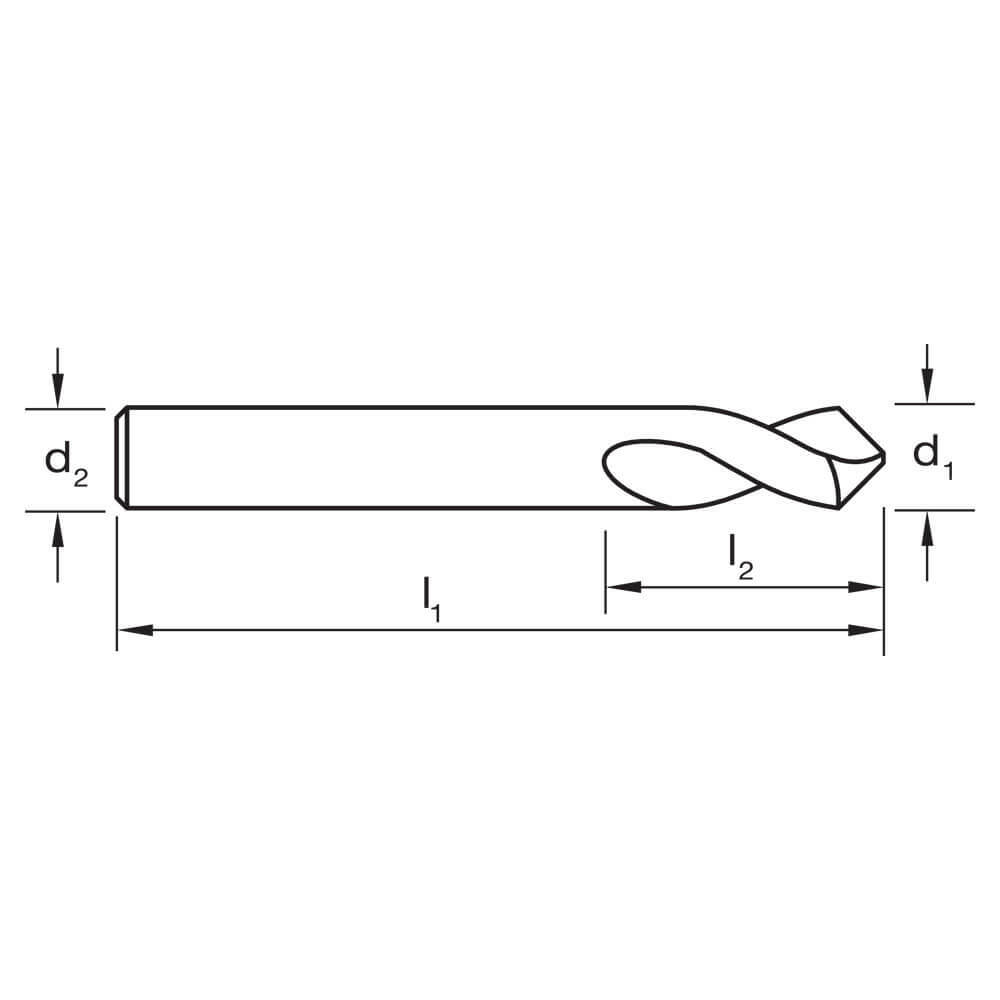

Dimensions

  • d1 (mm): 6, 8, 10, 12
  • Pack Quantity: 4

Features

  • Spotting Drill for “seat” position accuracy
  • 90° offers hole chamfering & spotting with the one tool
  • 120° for spotting, matching a typical drill point
  • Only drill to the depth of the point

Specifications

  • Designation: N
  • Material: High Speed Steel Cobalt
  • Finish: TiN
  • Shank Form: A
  • X: als
  • Point Tolerance: h8
  • Shank Tolerance: h9
  • Point Type: 120°
  • Cutting Edges: ul
  • Standard: DIN 1897

Applications

  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 250 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 270 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 275 HB
  • Optimal for Stainless Steel – Austenitic- 180 HB
  • Optimal for Stainless Steel – Duplex- 250 HB
  • Optimal for Cast Iron, Grey (GG) - Ferritic / Pearlitic- 180 HB
  • Optimal for Cast Iron, Nodular (GGG) - Ferritic- 160 HB
  • Optimal for Aluminum & Magnesium, wrought alloy - Non Heat Treatable – 60 HB
  • Optimal for Aluminum & Magnesium, wrought alloy - Heat Treatable – 100 HB
  • Optimal for Aluminum & Magnesium, cast alloy ≤12% Si - Non Heat Treatable – 75 HB
  • Optimal for Aluminum & Magnesium, cast alloy ≤12% Si - Heat Treatable – 90 HB
  • Optimal for Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1 -110 HB
  • Optimal for Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn) – 100 HB
SKU: A0005909

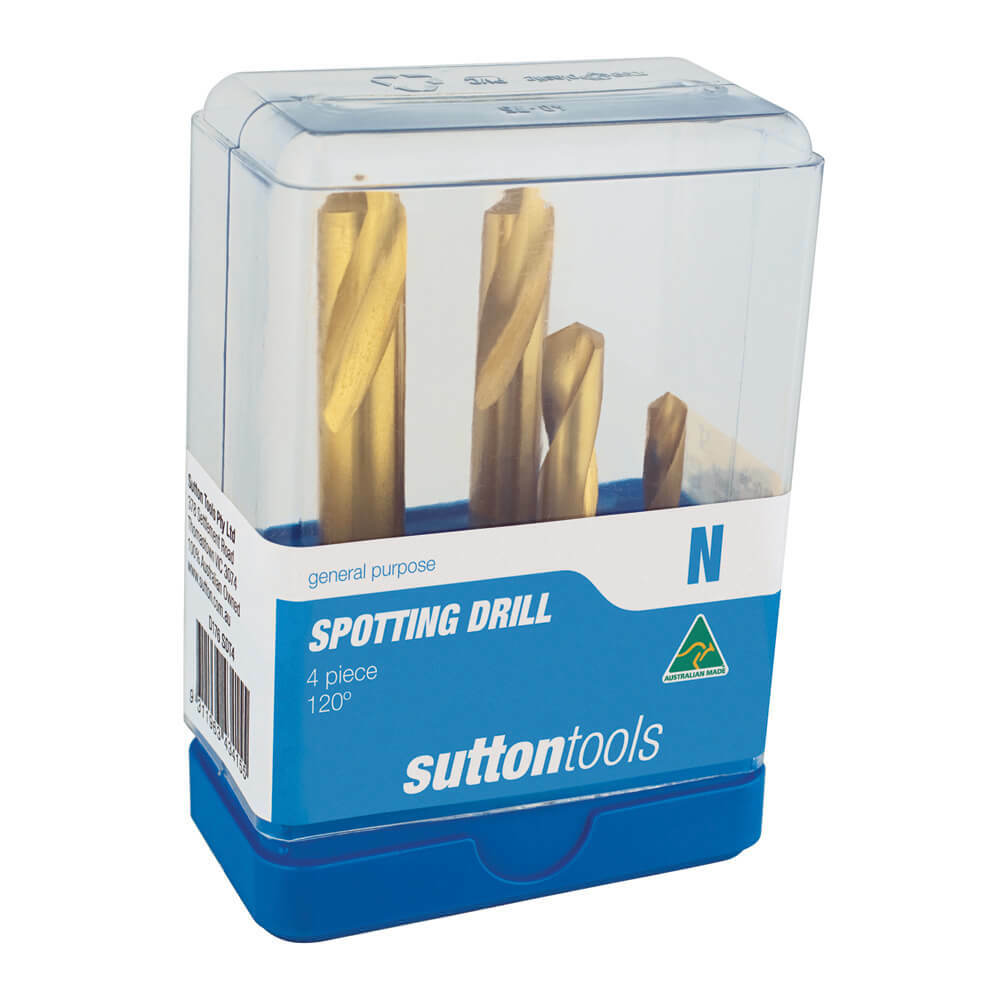

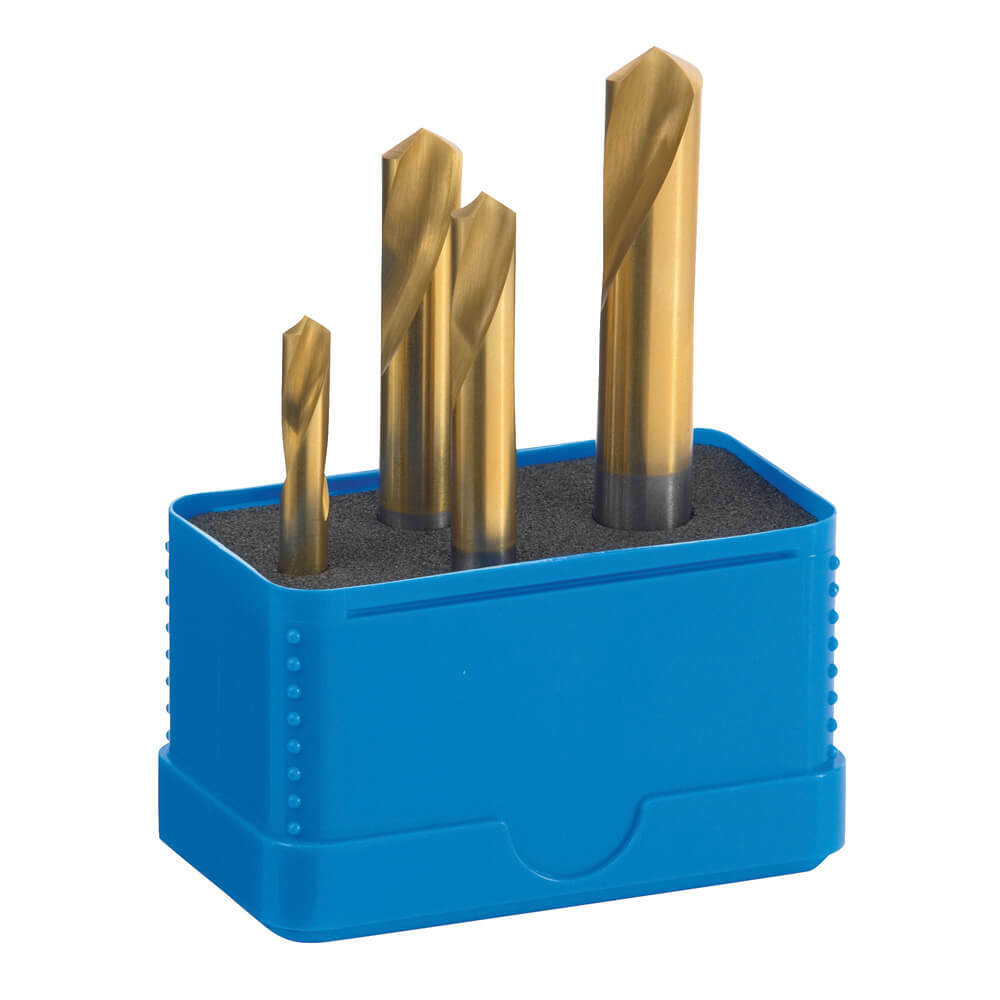

Sutton D1760004 120° Spotting Drill Set 4 piece - 5% Cobalt HSS - TiN

Sutton Tools 120° Spot Drill Set

$129.16

How it works.

Make 4 payments of $32.29 over 8 weeks and get it now!


Buy now, pay later.

Specifications

  • AIMS SKU A0005909
  • Brand Sutton Tools
  • Model Number D1760004
  • Barcode Number 9311963434155
  • Type Spotting Drill Set
  • System of Measurement DIN 1897,Metric
  • Material High Speed Steel Cobalt (HSS Co5%)
  • Finish Titanium Nitride (TiN)
  • Point Tolerance h8
  • Shank Form A
  • Shank Tolerance h9
  • Pieces in a Set 4
  • Point Angle 120
