Sutton D136 SCD1 Centre Drill Set 5 Piece #1-#5 HSS
Regular price
$100.71
Sale price
$100.71
Regular price
Inc. GST
Available

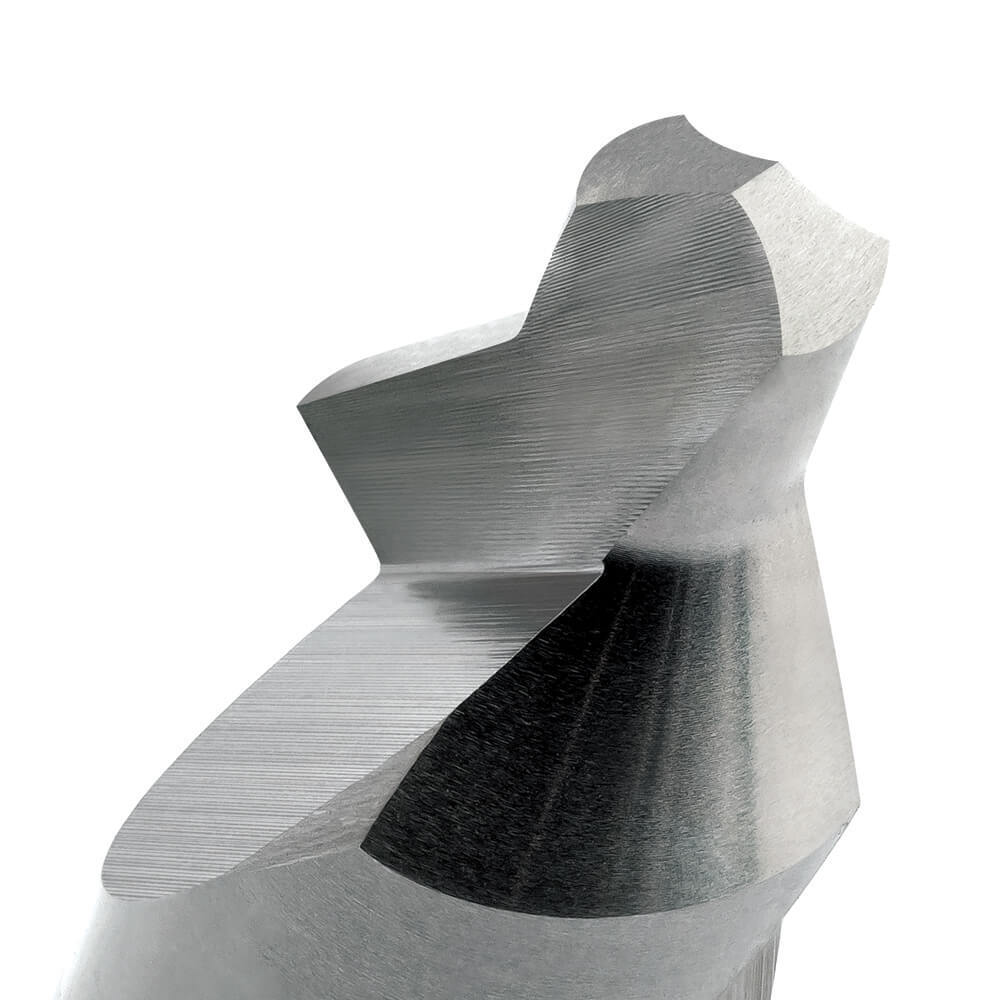

The Sutton D136 SCD1 is a 5-piece set of plain-type (ANSI B94-11) HSS centre drills, sizes #1, #2, #3, #4 and #5, each with a 60° point and a bright finish.
What is in the set
- Centre drills #1, #2, #3, #4 and #5 (5 pieces)
Drills in this set
Dimensions of the five plain-type centre drills in the set, from the individual D136 items of the same sizes.
| Size | Item no. | Pilot Ø d1 | Overall l1 | l2 | Body Ø d2 |
|---|---|---|---|---|---|
| #1 | D136 0001 | 3/64 in (1.19 mm) | 1-1/4 in (31.75 mm) | 3/64 in (1.19 mm) | 1/8 in (3.18 mm) |
| #2 | D136 0002 | 5/64 in (1.98 mm) | 1-7/8 in (47.63 mm) | 5/64 in (1.98 mm) | 3/16 in (4.76 mm) |
| #3 | D136 0003 | 7/64 in (2.78 mm) | 2 in (50.8 mm) | 7/64 in (2.78 mm) | 1/4 in (6.35 mm) |
| #4 | D136 0004 | 1/8 in (3.18 mm) | 2-1/8 in (53.98 mm) | 1/8 in (3.18 mm) | 5/16 in (7.94 mm) |
| #5 | D136 0005 | 3/16 in (4.76 mm) | 2-3/4 in (69.85 mm) | 3/16 in (4.76 mm) | 7/16 in (11.11 mm) |
Where this product is used
- Drilling 60° centre holes in the ends of shafts, which is the use of centre drills.
- A compact set of the five plain-type sizes for a toolroom or workshop drawer.
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | D136 (SCD1 set) |
| Pieces | 5 |
| Sizes | #1, #2, #3, #4, #5 |
| Type | Plain-type centre drill |
| Material | High Speed Steel (HSS) |
| Finish | Bright |
| Point | 60° |
| Standard | ANSI B94-11 |
Related products
See the Centre Drill Bit Sets collection and our centre drill bit guide.
