Description

Descriptions

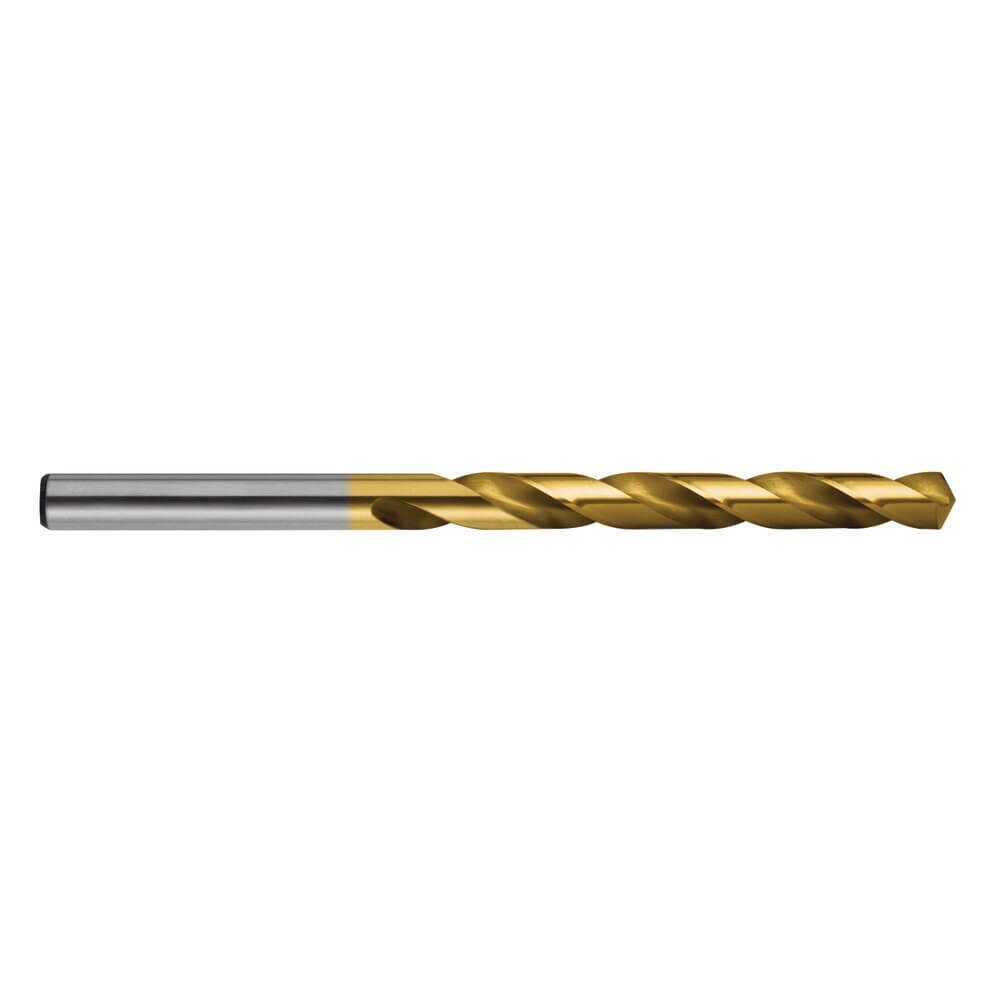

  • Sutton Tools TiNite® jobber drills are for high performance drilling
  • Lasts up to 6 times longer than standard HSS drill bits
  • For drilling metal & tougher alloy steels such as steel, stainless steel, copper, brass, aluminum & cast iron

Dimensions

  • Range (mm): 1.0-10.0 x 0.5
  • Pack Quantity: 25

Features

  • Cuts faster at higher speeds

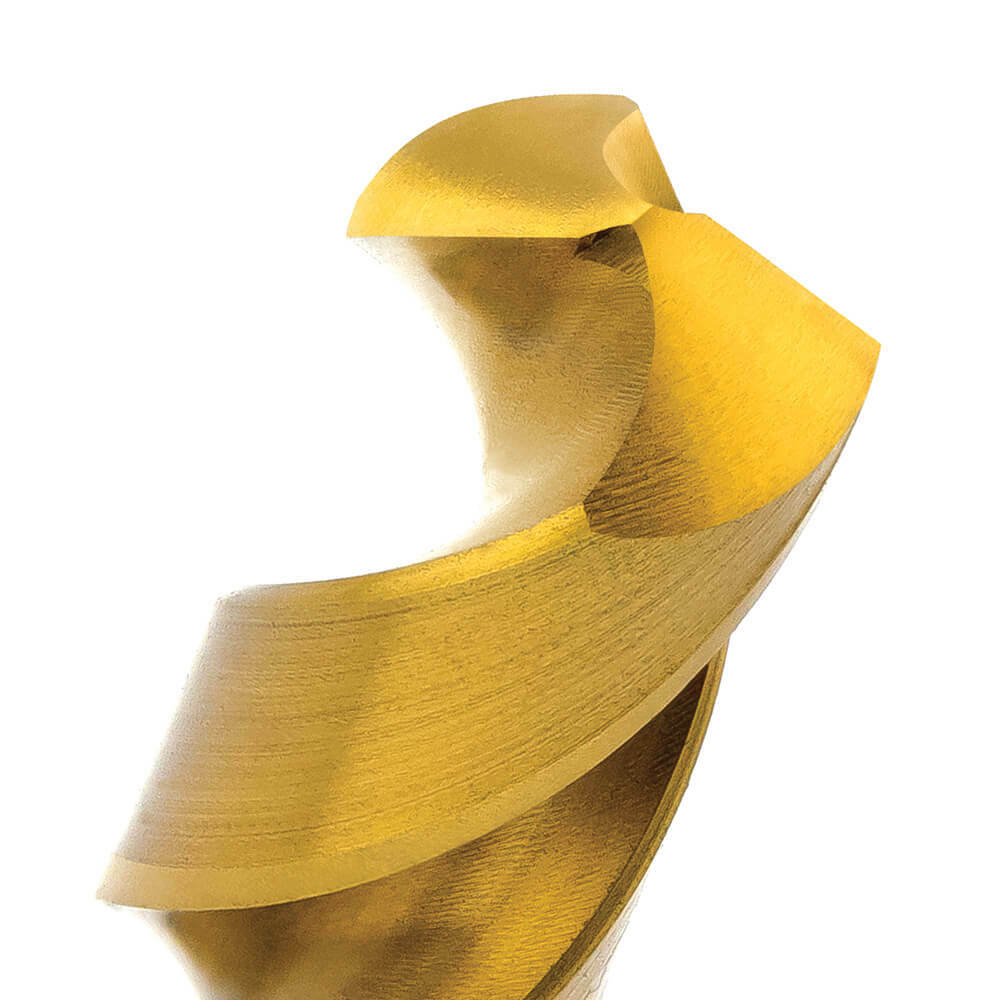

  • 118° web thinned point reduces the amount of thrust required
  • Precision ground flute offers high accuracy drilling and fast chip removal
  • Made from M2 High Speed Steel (HSS) offering the best combination of strength, heat & wear resistance
  • TiN coating provides 3 to 6 times longer tool life than uncoated tools and is suitable for general purpose use in a wide range of applications

Specifications

  • Designation: N
  • Material: High Speed Steel
  • Finish: TiN
  • Point Angle: 118°
  • Point Form: Form A
  • Standard: ANSI B94-11

Applications

  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 250 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 270 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 300 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 275 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 300 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 350 HB
  • Optimal for Steel - High alloy, cast & tool- 200 HB
  • Optimal for Steel - High alloy, cast & tool- 325 HB
  • Optimal for Steel - Corrosion resistant & cast - Ferritic / Martensitic- 200 HB
  • Optimal for Steel - Corrosion resistant & cast - Martensitic- 240 HB
  • Optimal for Stainless Steel - Austenitic- 180 HB
  • Optimal for Stainless Steel - Duplex- 250 HB

Specifications

  • AIMS SKU A0003423
  • Brand Sutton Tools
  • Model Number D103SM3
  • Barcode Number 9311963071435
  • Type Jobber Drill Set
  • System of Measurement Metric
  • Material High Speed Steel (HSS)
  • Finish Titanium Nitride (TiN)
  • Pieces in a Set 25
SKU: A0003423

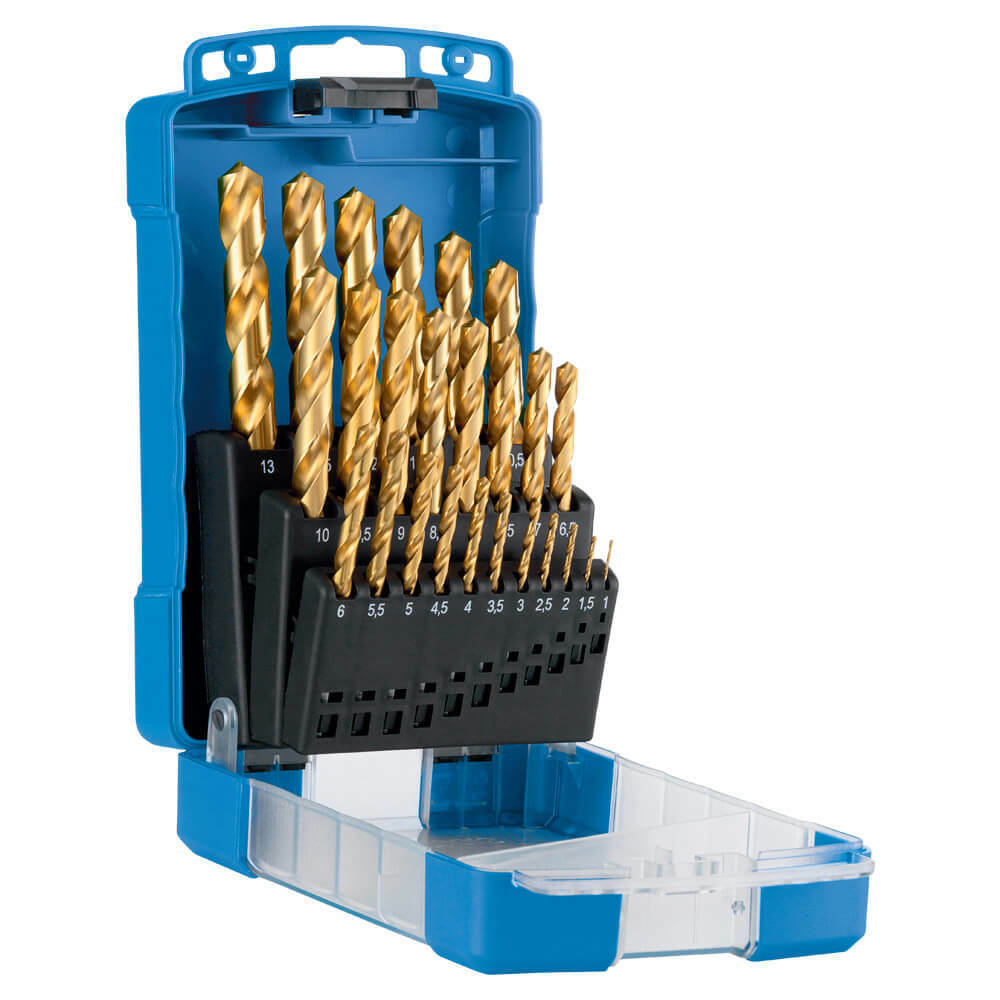

Sutton D103SM3 25 piece Tinite Jobber Metric Drill Set - HSS TiN

Sutton Tools Jobber Drill Sets - TiNite

$736.15
