Description

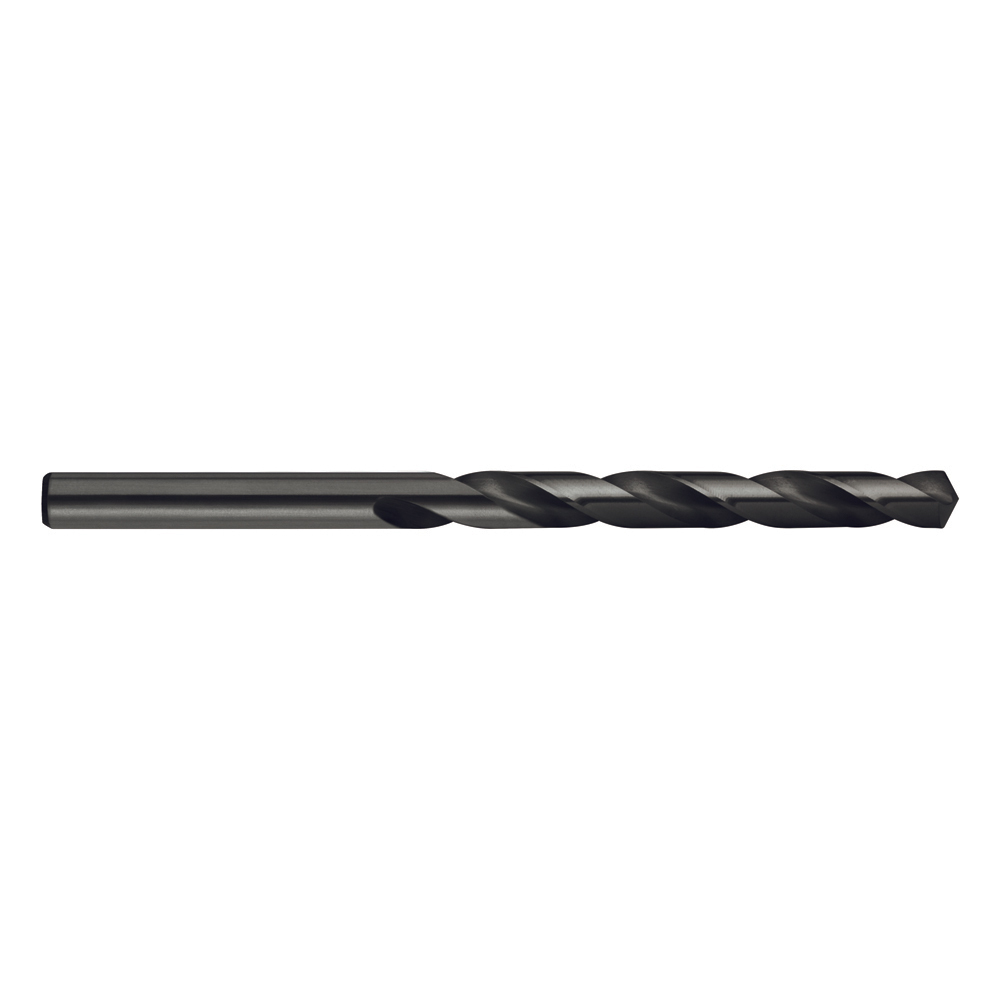

Sutton Tools Blue Bullet jobber drills are a general purpose drill bit designed for machine and hand held drilling ferrous metals. The blue finish reduces chip build up on the cutting edge and is a better choice when drilling ferrous materials.

  • Description: SM3
  • Pieces: 25
  • Range: 1.0 – 13.0mm x 0.5mm rises
  • Case: ABS

Features

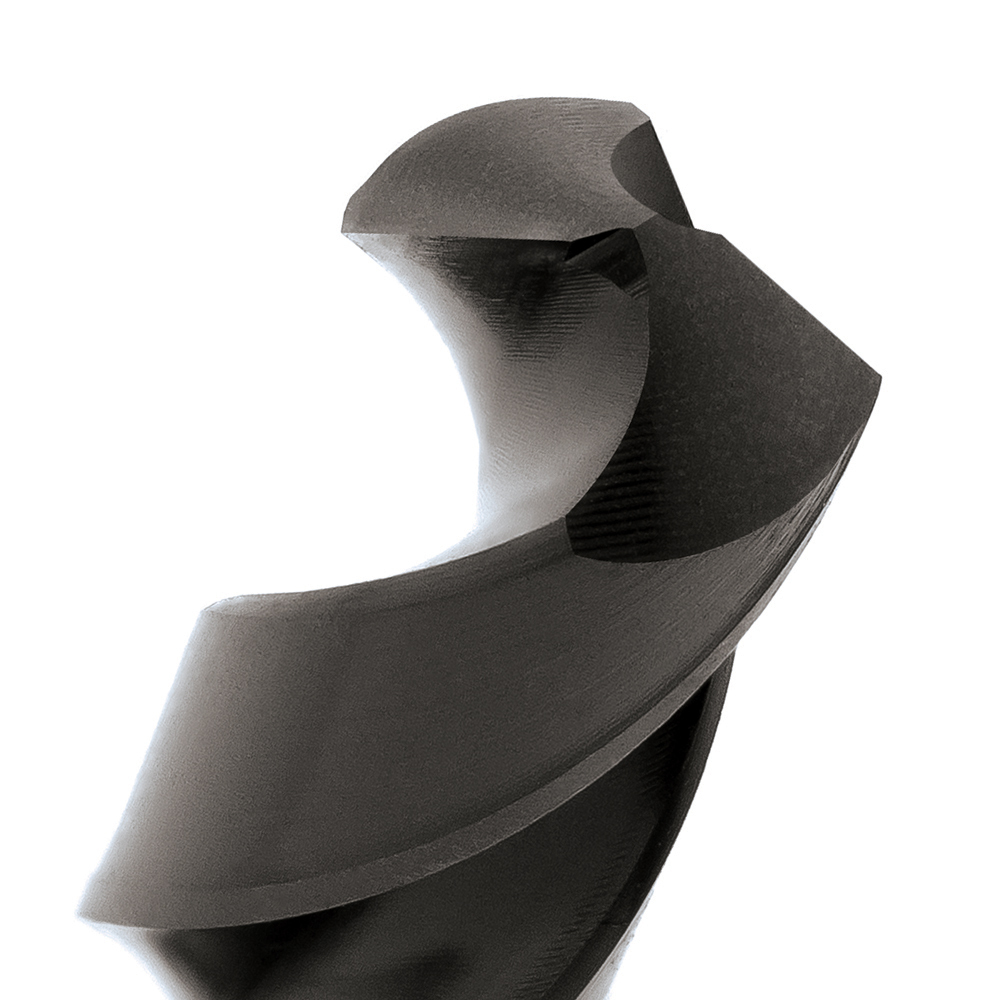

  • 118° web thinned point reduces the amount of thrust required
  • Precision engineered parallel shank for accurate hole size
  • Made from M2 High Speed Steel (HSS) offering the best combination of strength, heat & wear resistance
  • Blue surface finish for ferrous applications. The steam oxide finish prevents chip build-up on the cutting edges and reduces cutting friction, especially in low carbon steels

Specifications

  • Designation: N
  • Material: HSS
  • Finish: Blu
  • Max Cut Depth: 5 x D
  • Shank Form: A
  • Helix Angle: R30
  • Point Tolerance: h8
  • Point Angle: 118°
  • Point Form: Form A
  • Standard: ANSI B94-11 / DIN338

Applications

  • ISO: H
  • VDI: 41
  • Description: Cast Iron
  • Condition: Hardened and Tempered
  • Hardness: 55HRC

Specifications

  • AIMS SKU A0003273
  • Brand Sutton Tools
  • Model Number D102SM3
  • Barcode Number 9311963047058
  • Type Jobber Drill Set
  • System of Measurement Metric
  • Material High Speed Steel (HSS)
  • Finish Steam Oxide (Blue)
  • Pieces in a Set 25
SKU: A0003273

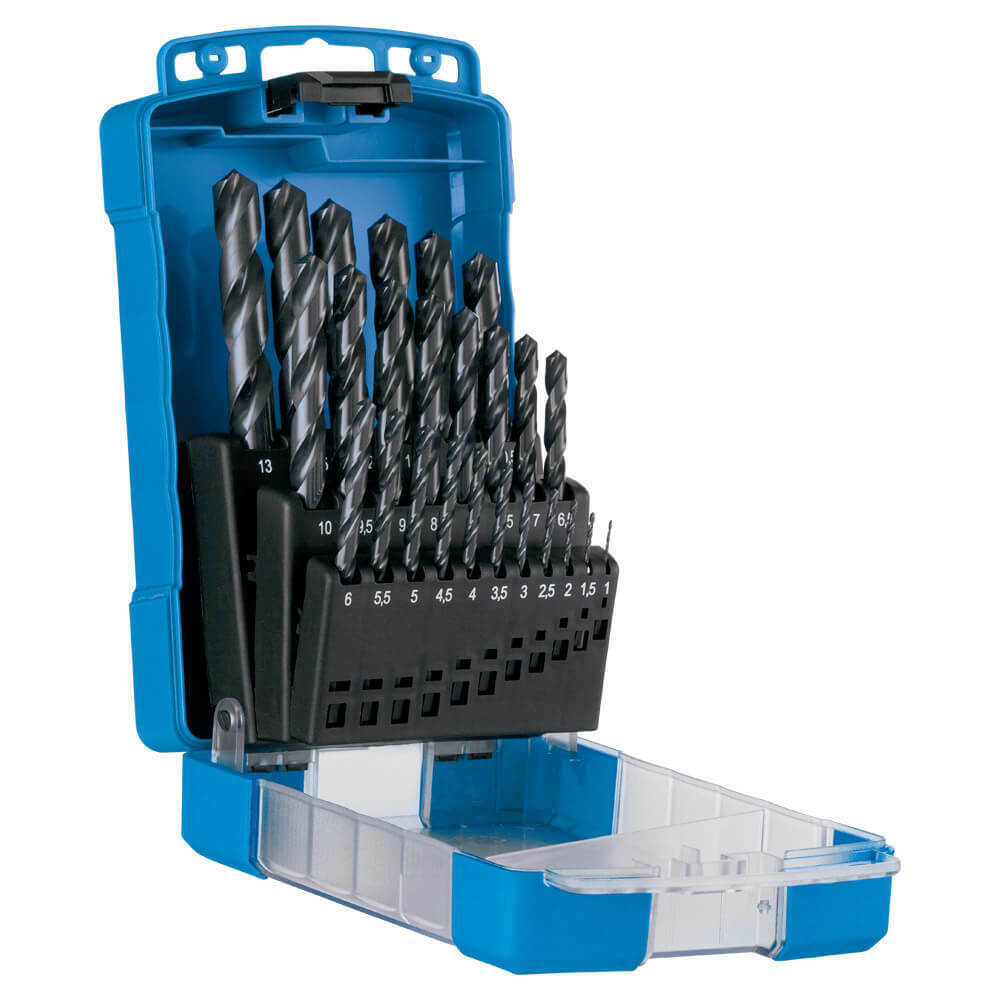

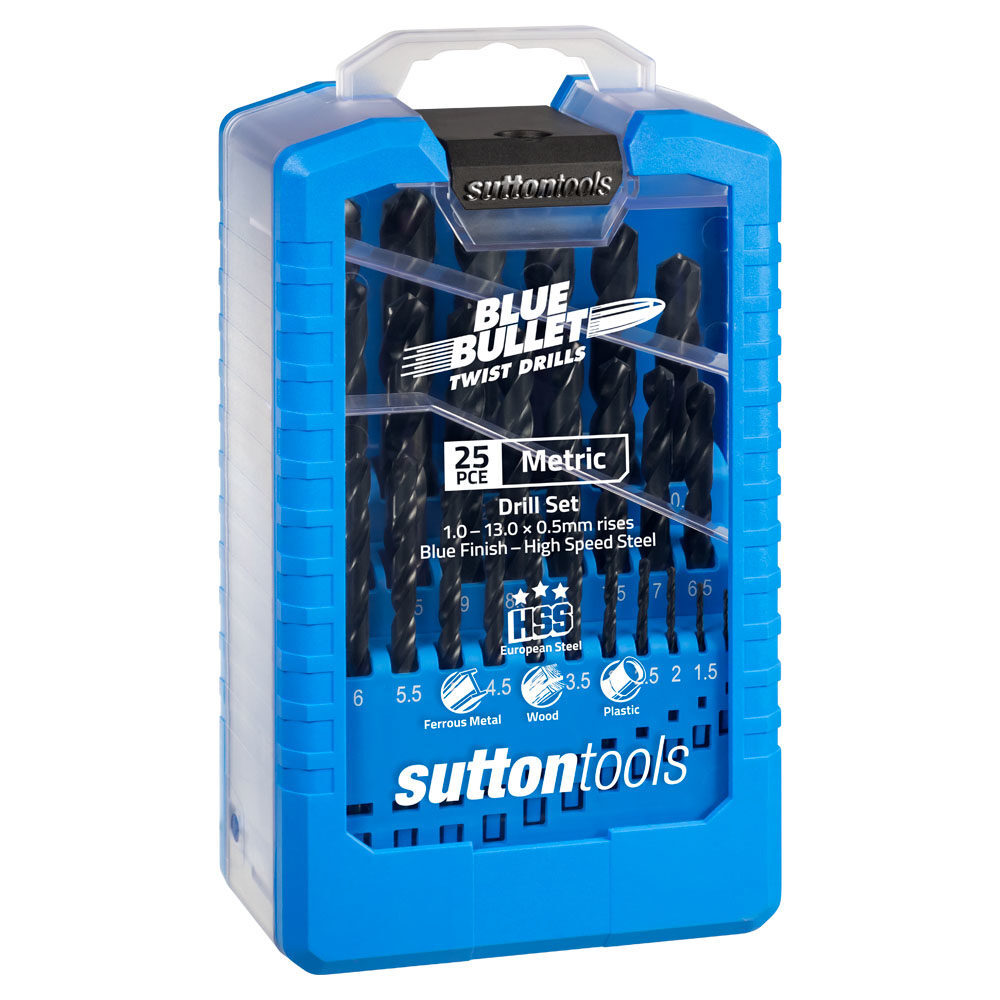

Sutton D102SM3 25 piece Blue Bullet Metric Jobber Drill Set HSS

Sutton Tools Jobber Drill Sets - Blue Bullet

$203.51
RRP $473.80
SAVE $270.29 (57%)
