Sutton D101SM1 13 Piece Silver Bullet Jobber Drill Set - HSS
Available

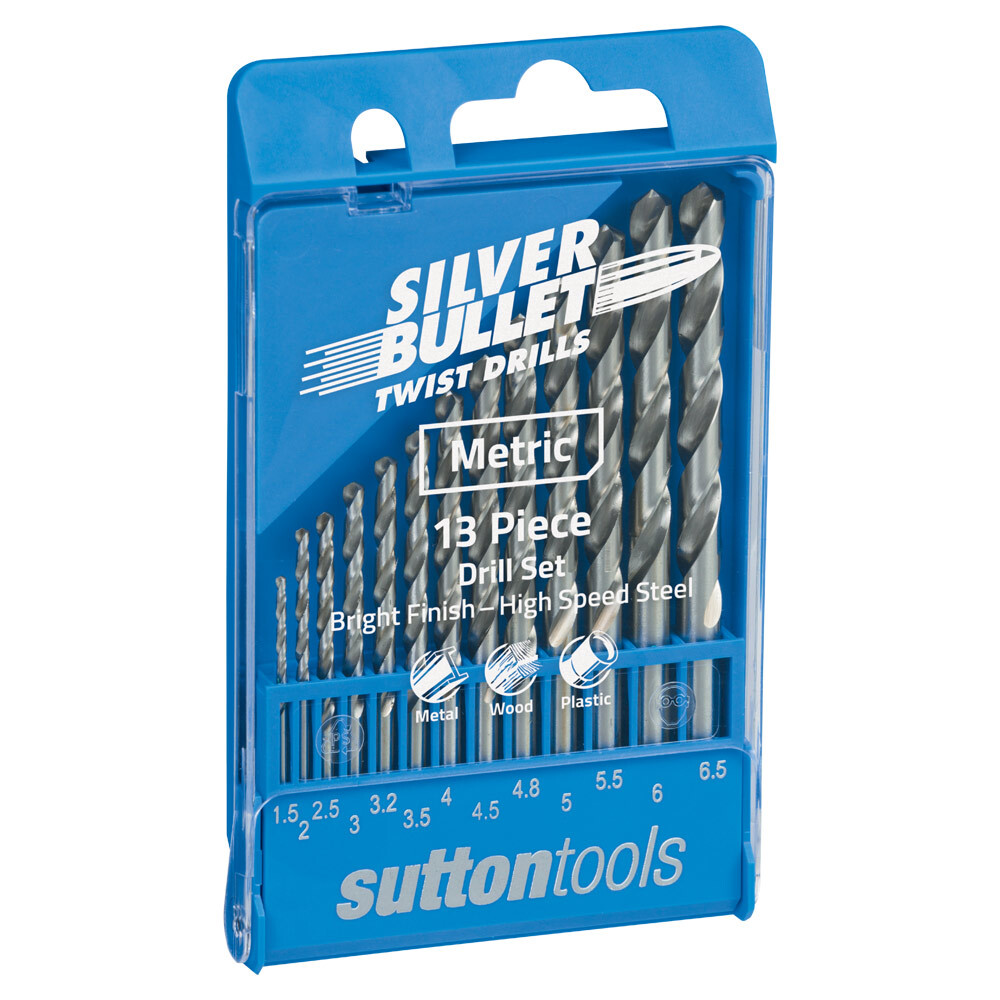

The Sutton D101SM1 is a 13-piece set of D101 Silver Bullet drills in High Speed Steel (HSS), in a ABS plastic case. The set covers 1.5 – 6.5 mm × 0.5 mm steps + 3.2, 4.8 mm.

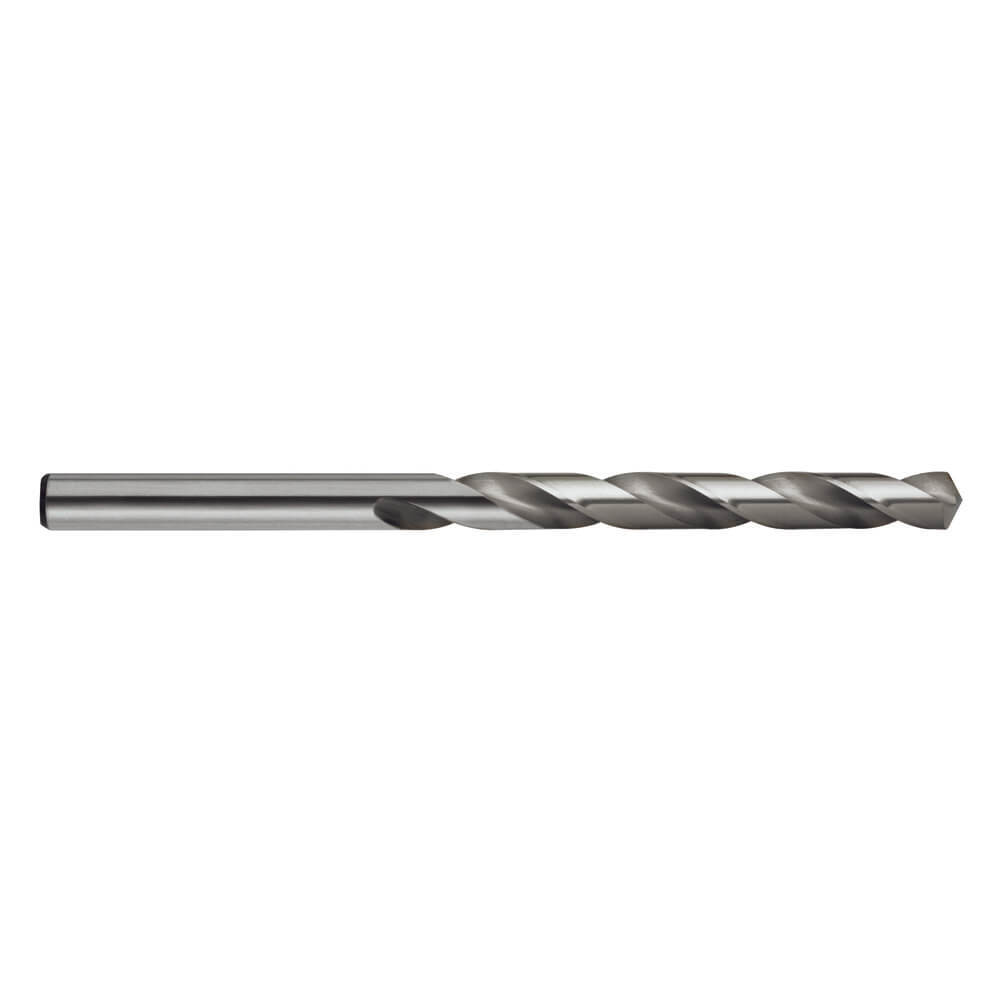

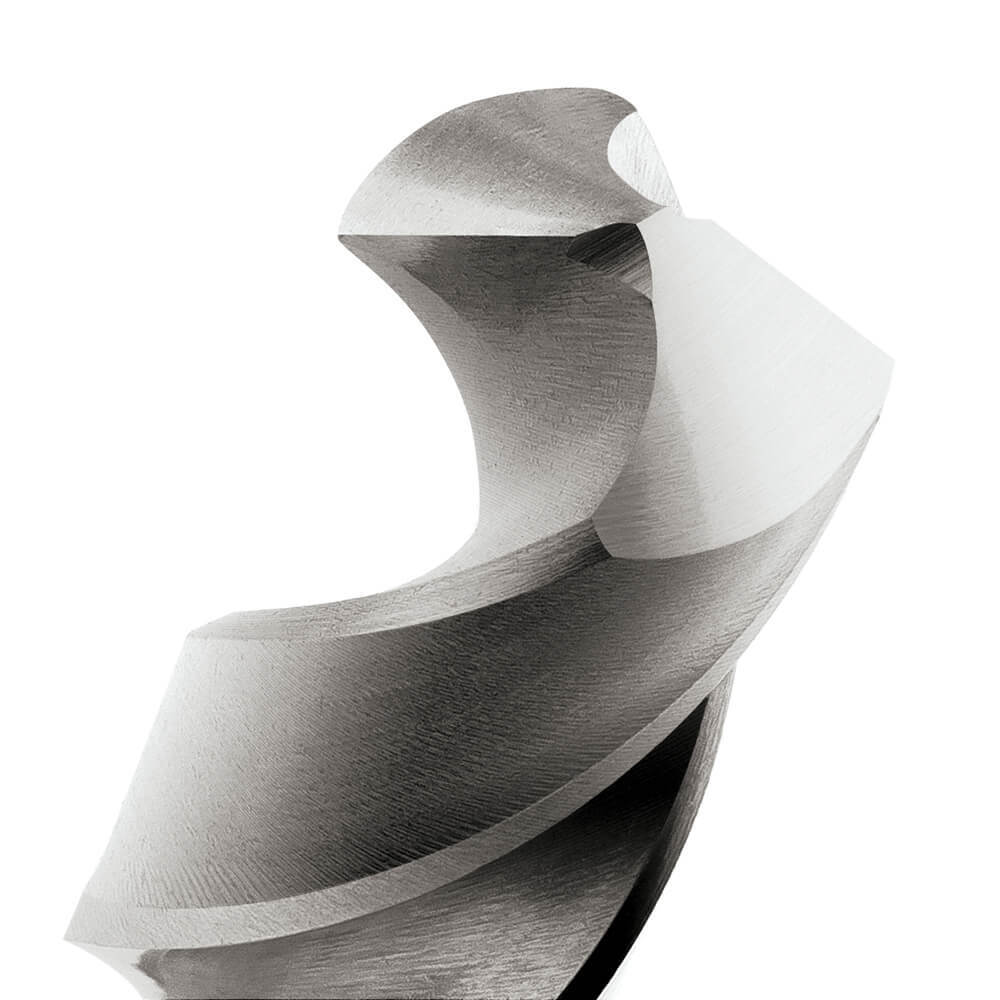

Each drill in the set has 30° right-hand helix flutes (R30), a 118° point, a bright (uncoated) finish and is made to DIN 338.
What is in the set

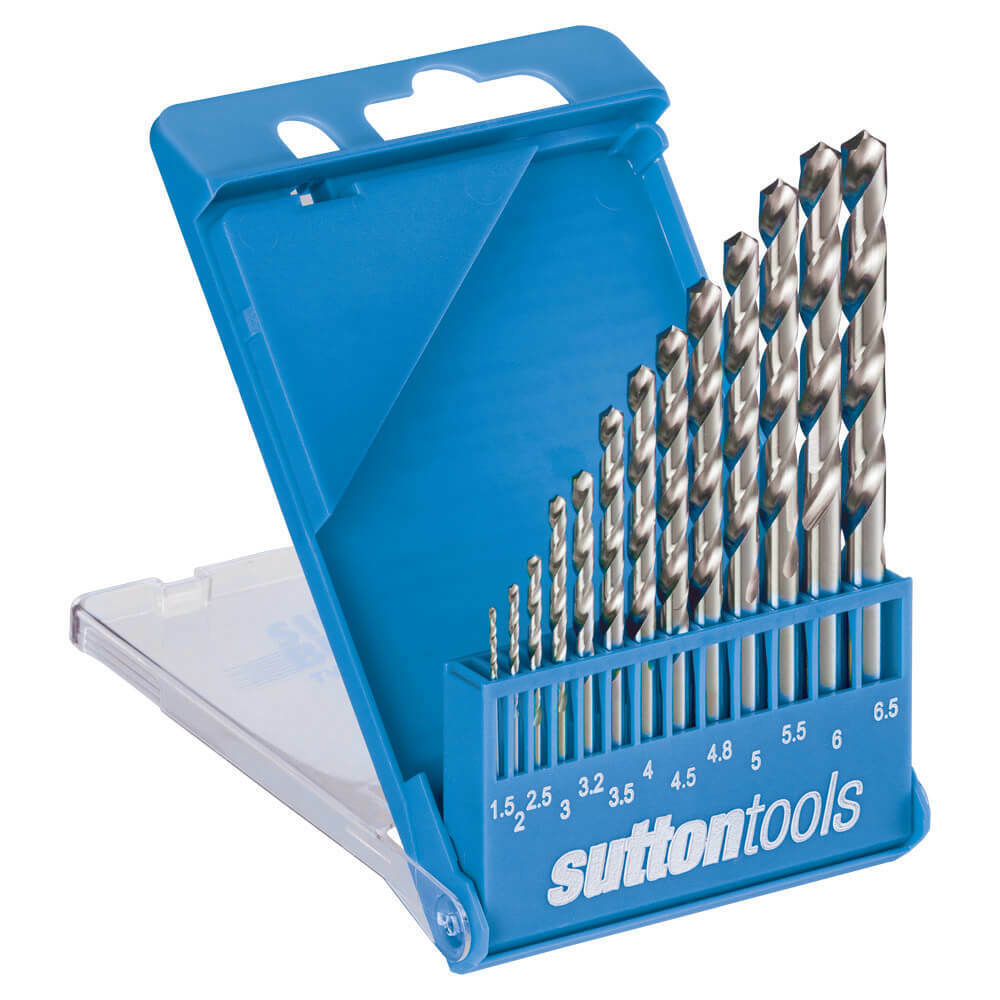

- 13 drills: 1.5, 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5, 3.2, 4.8 mm
Drills in this set
Dimensions of each drill in the set, from the individual D101 Silver Bullet items of the same sizes.

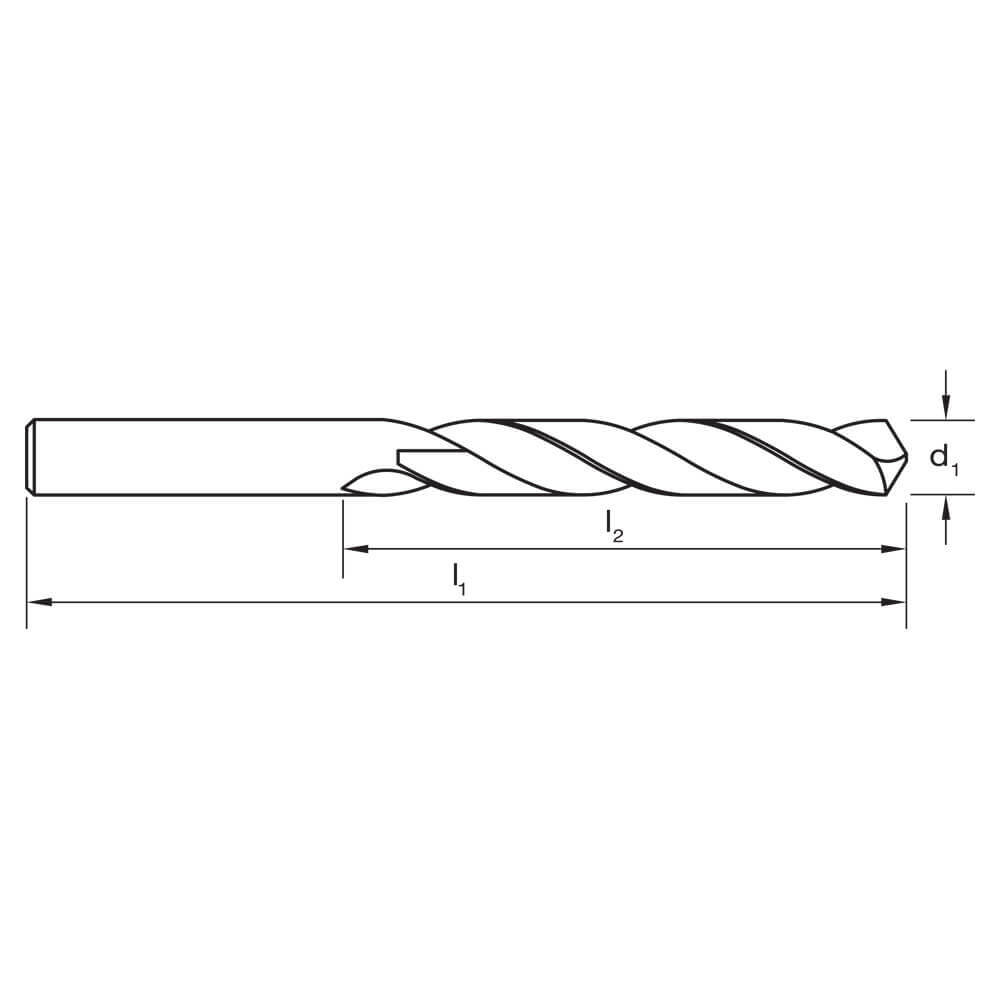

| Size | Item no. | Flute length l2 (mm) | Overall length l1 (mm) |
|---|---|---|---|
| 1.5 mm | D101 0150 | 18 | 40 |
| 2 mm | D101 0200 | 24 | 49 |
| 2.5 mm | D101 0250 | 30 | 57 |
| 3 mm | D101 0300 | 33 | 61 |
| 3.2 mm | D101 0320 | 36 | 65 |
| 3.5 mm | D101 0350 | 39 | 70 |
| 4 mm | D101 0400 | 43 | 75 |
| 4.5 mm | D101 0450 | 47 | 80 |
| 4.8 mm | D101 0480 | 52 | 86 |
| 5 mm | D101 0500 | 52 | 86 |
| 5.5 mm | D101 0550 | 57 | 93 |
| 6 mm | D101 0600 | 57 | 93 |
| 6.5 mm | D101 0650 | 63 | 101 |
Where this product is used
- General drilling across the materials rated for D101 Silver Bullet drills.
- Materials rated Optimal for the D101: non-alloy steel, about 0.15 %C, annealed; non-alloy steel, about 0.45 %C, annealed; low-alloy steel (under 5% alloying elements), annealed; and wrought aluminium and magnesium alloys.
Finish
Bright (uncoated). The bright finish is for general-purpose applications.
Cutting speeds and feeds
Cutting speeds (Vc) and feed numbers are given for the D101. Speed (rpm) = Vc × 1000 ÷ (π × Ø); treat these as starting values.
| Material (VDI 3323 group) | Rating | Vc (m/min) | Feed no. | Ø6 mm: rpm / feed | Ø10 mm: rpm / feed |
|---|---|---|---|---|---|
| Non-alloy steel, about 0.15 %C, annealed | Optimal | 12 | 5 | 635 rpm / 0.125 mm/rev | 380 rpm / 0.19 mm/rev |
| Non-alloy steel, about 0.45 %C, annealed | Optimal | 10 | 5 | 530 rpm / 0.125 mm/rev | 320 rpm / 0.19 mm/rev |
| Non-alloy steel, about 0.45 %C, quenched and tempered | Effective | 8 | 5 | 425 rpm / 0.125 mm/rev | 255 rpm / 0.19 mm/rev |
| Non-alloy steel, about 0.75 %C, annealed | Effective | 8 | 5 | 425 rpm / 0.125 mm/rev | 255 rpm / 0.19 mm/rev |
| Low-alloy steel (under 5% alloying), annealed | Optimal | 8 | 5 | 425 rpm / 0.125 mm/rev | 255 rpm / 0.19 mm/rev |
| Low-alloy steel, quenched and tempered (275 HB) | Effective | 8 | 4 | 425 rpm / 0.1 mm/rev | 255 rpm / 0.16 mm/rev |
| High-alloy and tool steel, annealed | Effective | 8 | 5 | 425 rpm / 0.125 mm/rev | 255 rpm / 0.19 mm/rev |
| Grey cast iron, ferritic / pearlitic | Effective | 12 | 6 | 635 rpm / 0.16 mm/rev | 380 rpm / 0.24 mm/rev |
| Nodular cast iron, ferritic | Effective | 12 | 6 | 635 rpm / 0.16 mm/rev | 380 rpm / 0.24 mm/rev |
| Wrought aluminium and magnesium, non heat treatable | Optimal | 25 | 5 | 1,330 rpm / 0.125 mm/rev | 795 rpm / 0.19 mm/rev |
| Wrought aluminium and magnesium, heat treatable | Optimal | 25 | 5 | 1,330 rpm / 0.125 mm/rev | 795 rpm / 0.19 mm/rev |
| Cast aluminium and magnesium (up to 12% Si), non heat treatable | Effective | 18 | 4 | 955 rpm / 0.1 mm/rev | 575 rpm / 0.16 mm/rev |
| Cast aluminium over 12% Si | Effective | 12 | 6 | 635 rpm / 0.16 mm/rev | 380 rpm / 0.24 mm/rev |
| Copper alloys, free cutting (Pb > 1%) | Effective | 20 | 4 | 1,060 rpm / 0.1 mm/rev | 635 rpm / 0.16 mm/rev |
| Brass (CuZn, CuSnZn) | Effective | 15 | 4 | 795 rpm / 0.1 mm/rev | 475 rpm / 0.16 mm/rev |
| Bronze (CuSn) | Effective | 15 | 4 | 795 rpm / 0.1 mm/rev | 475 rpm / 0.16 mm/rev |
| Thermosetting and fibre-reinforced plastics | Effective | 25 | 3 | 1,330 rpm / 0.08 mm/rev | 795 rpm / 0.125 mm/rev |
| Chilled cast iron | Effective | 10 | 5 | 530 rpm / 0.125 mm/rev | 320 rpm / 0.19 mm/rev |
Key specifications
| Specification | Detail |
|---|---|
| Set number | D101SM1 |
| Catalogue code | D101 Silver Bullet |
| Pieces | 13 |
| Size range | 1.5 – 6.5 mm × 0.5 mm rises + 3.2, 4.8 mm |
| Case | ABS plastic case |
| Material | High Speed Steel (HSS) |
| Finish | Bright (uncoated) |
| Flute geometry | 30° right-hand helix (R30) |
| Standard | DIN 338 |
Related drilling products
Individual drills from this range are in the Jobber Drill Bits collection; sets are in the Metric Jobber Drill Sets and Imperial Jobber Drill Sets collections. Our speeds and feeds chart and troubleshooting guide help with speeds and problem solving.
