Sutton D50461807 HSS Step Drill 6-18mm, 7 Steps - Spiral Flute, Flat Shank
Available

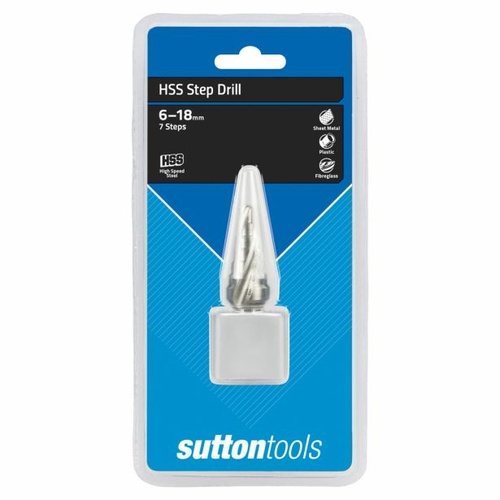

The Sutton D504 step drill is a spiral flute HSS step drill with a flat shank, supplied here in 3 sizes: 4-22mm (10 steps), 5-35mm (13 steps) and 6-18mm (7 steps). It cuts sheet metal, aluminium, plastic and fibre glass without pre-drilling, and the next step deburrs the hole as it is drilled.

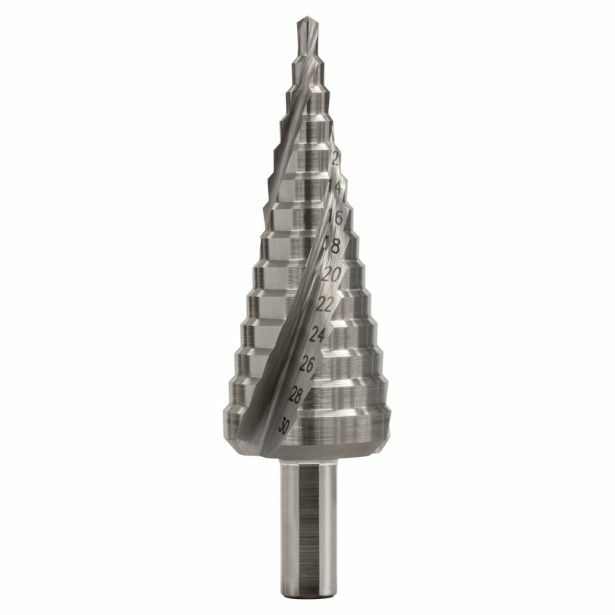

Fixed drilling steps with a spiral flute are designed to reduce vibration and give greater control through the steps. The drill is constructed from M2 high speed steel, designed to give a combination of strength, heat and wear resistance. The flat shank has three flats, which suits 3-jaw chucks.
Where this product is used
- Drilling sheet metal, aluminium, plastic and fibre glass, ideal for sheet metal without pre-drilling.
- Enlarging holes in steps to a finished diameter with one drill.
- Applications include DIY, trade, electrical and plumbing work.
Design features
- Fixed drilling steps with a spiral flute: designed to reduce vibration and give greater control.
- M2 high speed steel (HSS): designed for strength, heat and wear resistance.
- Flat shank: three flats suits 3-jaw chucks.
- No pre-drilling: the next step deburrs the previously drilled hole.
- 3 sizes, 4mm to 35mm.
Sizes and item numbers
Each size is a single step drill.
| Diameter range (mm) | Steps | Diameters (mm) | Step depth (mm) | Max. cut depth (mm) | Overall length (mm) | Sutton item no. |
|---|---|---|---|---|---|---|
| 4-22 | 10 | 4, 6, 8, 10, 12, 14, 16, 18, 20, 22 | 5 | 5 | 80 | D504 42210 |
| 5-35 | 13 | 5, 7.5, 10, 13, 16, 19, 21, 23, 26, 29, 31, 33, 35 | 3.5 | 3.5 | 75 | D504 53513 |
| 6-18 | 7 | 6, 8, 10, 12, 14, 16, 18 | 5 | 5 | 65 | D504 61807 |
Using the step drills
- Hold the shank in a 3-jaw chuck, tightening on the flats.
- Drill sheet material without pre-drilling: each step deburrs the hole made by the previous step.
- Keep the material thickness within the maximum cut depth shown in the size table.
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | D504 |
| Type | Step drill, spiral flute |
| Sizes | 3 sizes: 4-22mm (10 steps), 5-35mm (13 steps) and 6-18mm (7 steps) |
| Material | M2 HSS |
| Shank | Flat (three flats), suits 3-jaw chucks |
| Suited to | Sheet metal, aluminium, plastic, fibre glass |
