Description

Descriptions

  • Rigid twist drill with slow spiral 15 degree flutes
  • Suitable for harder steel, tool steel and cast iron

Specifications

  • Designation: NH
  • Material: VHM
  • Finish: TiCN
  • Maximum Cut Depth: 3XD
  • Shank Form: HA
  • Helix Angle: R15
  • X:als
  • Point Tolerance: m7
  • Shank Tolerance: h6
  • Point Type: 135° 4 Facet Form C
  • Cutting Edges: ul
  • Standard: Sutton

Applications

  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
  • Optimal for Stainless Steel – Austenitic- 180 HB
  • Optimal for Stainless Steel – Duplex- 250 HB
  • Optimal for Aluminum & Magnesium, wrought alloy - Non Heat Treatable – 60 HB
  • Optimal for Aluminum & Magnesium, wrought alloy - Heat Treatable – 100 HB
  • Optimal for Aluminum & Magnesium, cast alloy ≤12% Si - Non Heat Treatable – 75 HB
  • Optimal for Aluminum & Magnesium, cast alloy ≤12% Si - Heat Treatable – 90 HB

Specifications

  • AIMS SKU A0007132
  • Brand Sutton Tools
  • Model Number D3100100
  • Barcode Number 9311963370828
  • Thread Diameter (mm) 1
  • Overall Length (mm) 38
  • Shank (mm) 1
  • Flute Length (mm) 13
  • Group Code D310
  • Type Carbide Drill Bit
  • System of Measurement Metric
  • Material Sub-Micron Grade Solid Carbide (VHM-ISO K40)
  • Finish Titanium Carbonitride (TiCN)
  • Helix Angle R15
  • Shank Tolerance h6
  • Shank Form HA
  • Maximum Cut Depth 3XD
  • Point Tolerance m7
  • Point Form 135 4 Facet Form C
SKU: A0007132 On Sale

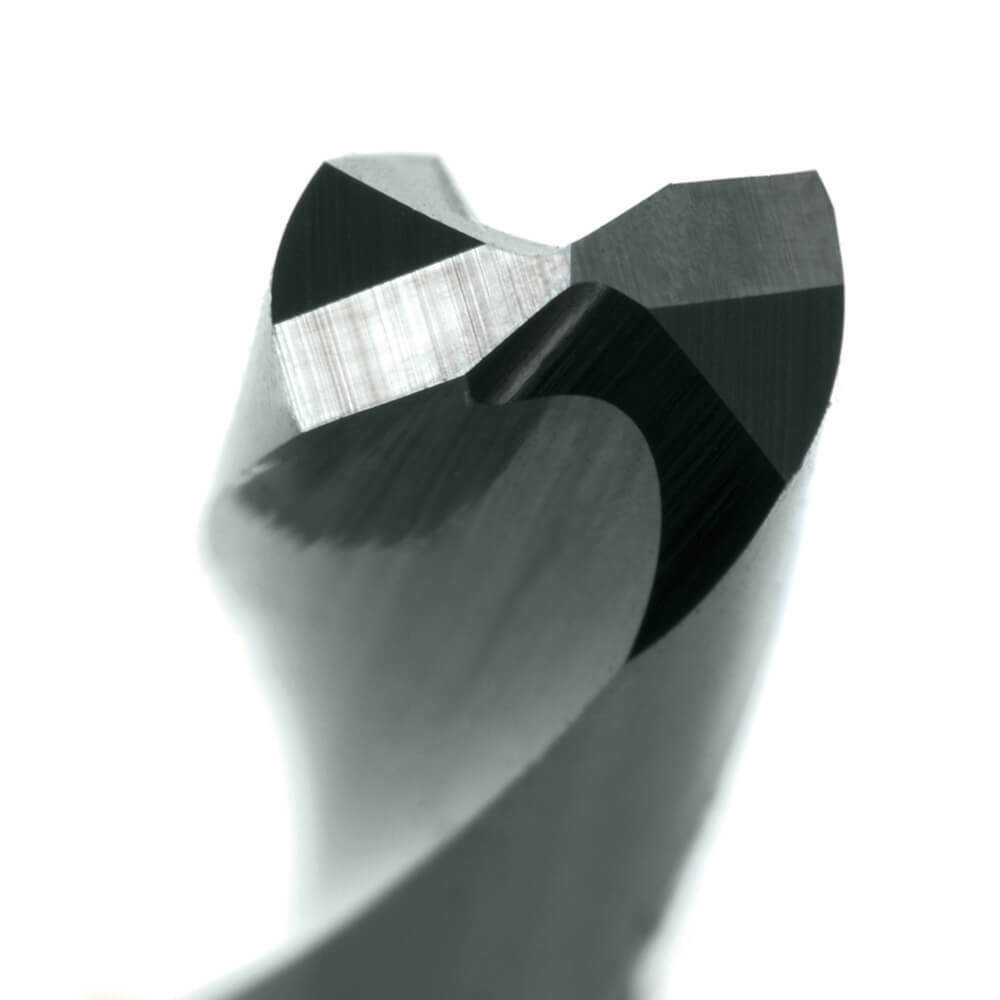

Sutton D3100100 1mm Solid Carbide Drill Bit - 3xD - R15 NH - VHM - TiCN

Sutton Tools Carbide Bits - 3xD - R15 NH

$33.31
$47.58
