Description

Description

  • Rigid twist drill with slow spiral 15 degree flutes

Features

  • 3xD Drill R15 NH
  • Suitable for harder steel, tool steel and cast iron

Specifications

  • Designation: NH
  • Material: VHM
  • Finish: Bright
  • Maximum Cut Depth: 3XD
  • Shank Form: HA
  • Helix Angle: R15
  • X: als
  • Point Tolerance: m7
  • Shank Tolerance: h6

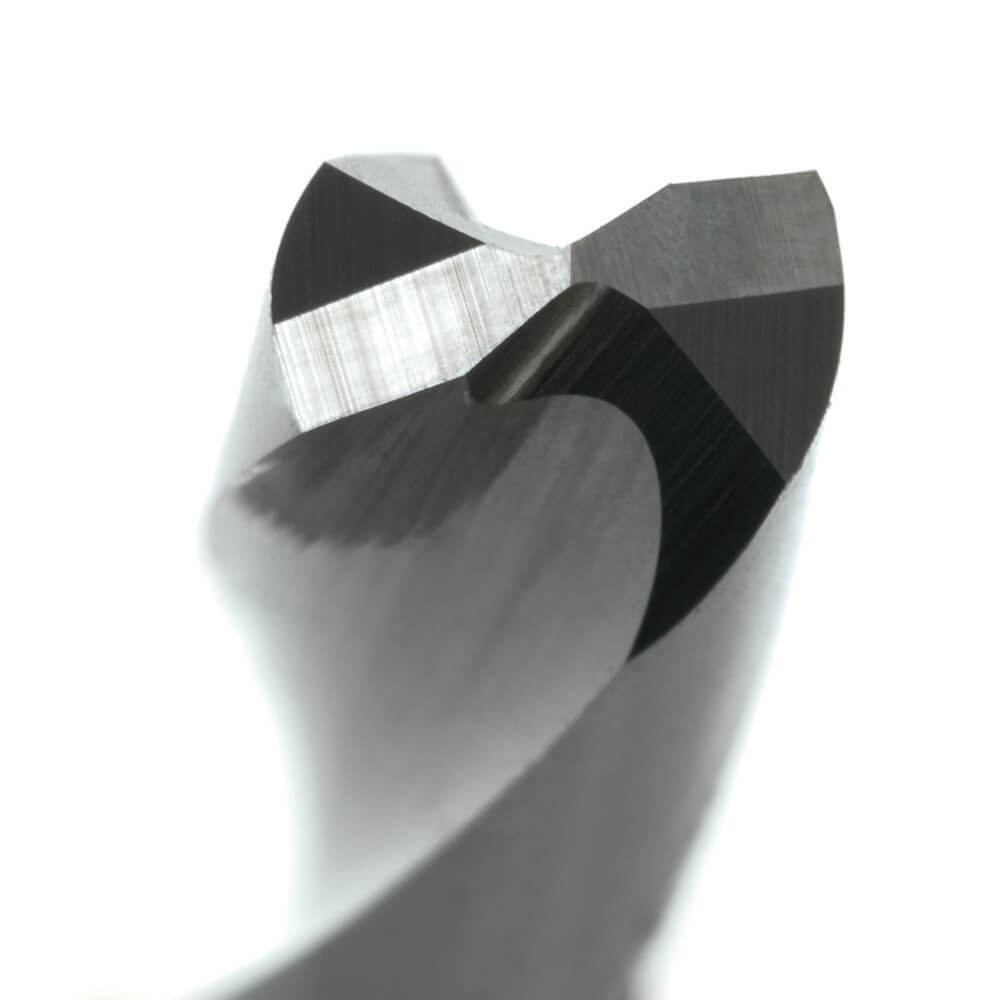

  • Point Type: 135° 4 Facet Form C
  • Cutting Edges: ul
  • Standard: Sutton

Applications

  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 250 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 270 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 300 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 275 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 300 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 350 HB
  • Optimal for Steel - High alloy, cast & tool- 200 HB
  • Optimal for Steel - High alloy, cast & tool- 325 HB
  • Optimal for Steel - Corrosion resistant & cast - Ferritic / Martensitic- 200 HB
  • Optimal for Steel - Corrosion resistant & cast - Martensitic- 240 HB
  • Optimal for Stainless Steel – Precipitation Hardening- 250 HB
  • Optimal for Cast Iron, Grey (GG) - Ferritic / Pearlitic- 180 HB
  • Optimal for Cast Iron, Grey (GG) - Pearlitic- 260 HB
  • Optimal for Cast Iron, Nodular (GGG) – Ferritic- 160 HB
  • Optimal for Cast Iron, Pearlitic (GGG) – Ferritic- 250 HB
  • Optimal for Cast Iron, Malleable – Ferritic- 130 HB
  • Optimal for Cast Iron, Malleable – Pearlitic- 230 HB
  • Optimal for Aluminum & Magnesium, cast alloy >12% Si - Heat Treatable- 130 HB
  • Optimal for Copper & Copper alloys (Brass/Bronze) - Brass (CuZn, CuSnZn) - 90 HB
  • Optimal for Cast Iron – Chilled- 400 HB

Specifications

  • AIMS SKU A0007078
  • Brand Sutton Tools
  • Model Number D3040100
  • Barcode Number 9311963370248

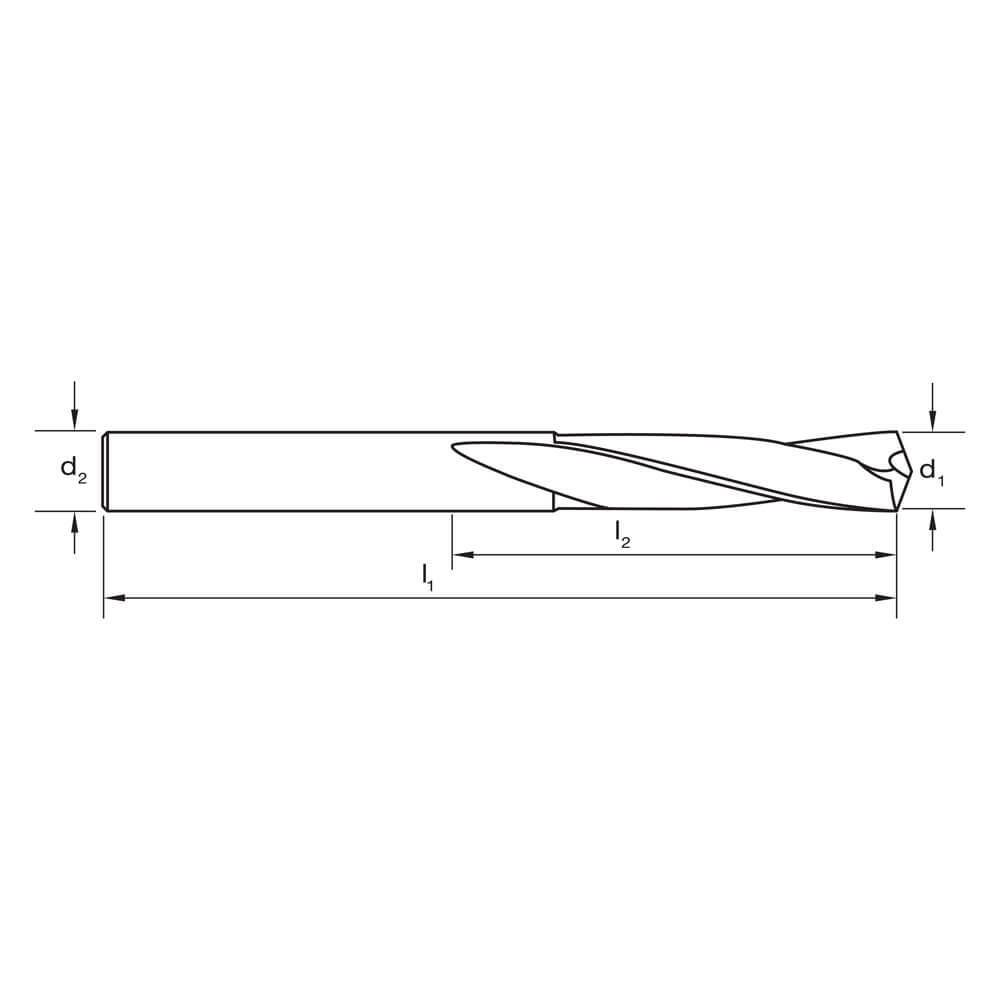

  • Thread Diameter (mm) 1
  • Overall Length (mm) 38
  • Shank (mm) 1
  • Flute Length (mm) 13
  • Group Code D304
  • Type Carbide Drill Bit
  • System of Measurement Metric
  • Material Sub-Micron Grade Solid Carbide (VHM-ISO K40)
  • Finish Bright
  • Helix Angle R15
  • Point Tolerance m7
  • Point Form 135 4 Facet Form C
  • Shank Tolerance h6
  • Shank Form HA
  • Maximum Cut Depth 3XD
SKU: A0007078 On Sale

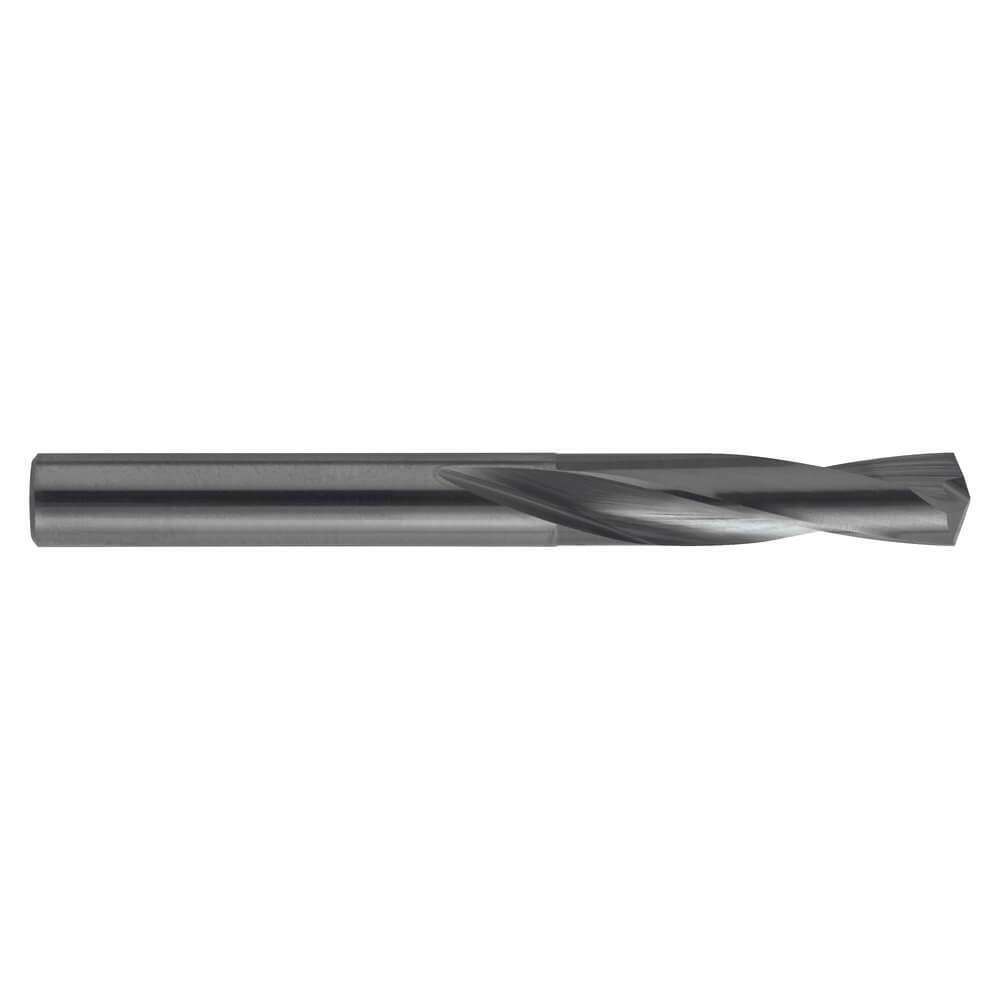

Sutton D3040100 1mm Solid Carbide Drill Bit - 3xD - R15 NH - VHM

Sutton Tools Carbide Bits - 3xD - R15 NH

$42.10
$46.82
