Description

Descriptions

  • SPM offers superior performance
  • Suitable for production drilling as an alternative to carbide drills
  • Suitable for materials up to 1500N/mm2

Features

  • Point geometry ensures high strength & short chips
  • Endmill shank for greater accuracy
  • TiAlN for longer tool life

Specifications

  • Designation: UNI
  • Material: SPM
  • Finish: TiAIN
  • Maximum Cut Depth: 5XD
  • Shank Form: A
  • Helix Angle: R40
  • X: als
  • Point Tolerance: h8
  • Shank Tolerance: h7
  • Point Type: 130° 4 Facet Form B
  • Cutting Edges: ul
  • Standard: DIN 338

Applications

  • Steel - Non-alloy, cast & free cutting, (~ 0.15 %C)- 125 HB;(~ 0.45 %C)- 190 HB;(~ 0.45 %C)- 250 HB;(~ 0.75 %C)- 270 HB;(~ 0.75 %C)- 300 HB
    • Low alloy & cast < 5% of alloying elements- 180 HB;275 HB; 300 HB
    • High alloy, cast & tool- 200 HB
    • Ferritic / Martensitic- 200 HB
    • Martensitic- 240 HB
  • Stainless Steel – Precipitation Hardening- 250 HB
  • Cast Iron
    • Ferritic/Pearlitic- 180 HB
    • Pearlitic- 260 HB
    • Nodular – Ferritic- 160 HB
    • Pearlitic – Ferritic- 250 HB
    • Ferritic- 130 HB
    • Malleable – Pearlitic- 230 HB
  • Al & Mg, cast alloy ≤12% Si Non Heat Treatable
    • 75 HB
    • 90 HB
  • Al & Mg, cast alloy >12% Si Heat Treatable- 130 HB
  • Cu & Cu alloys
    • Brass - 90 HB
    • Bronze - 100 HB
  • Cast Iron – Chilled- 400 HB

Specifications

  • AIMS SKU A0005415
  • Brand Sutton Tools
  • Model Number D1680100
  • Barcode Number 9311963434551

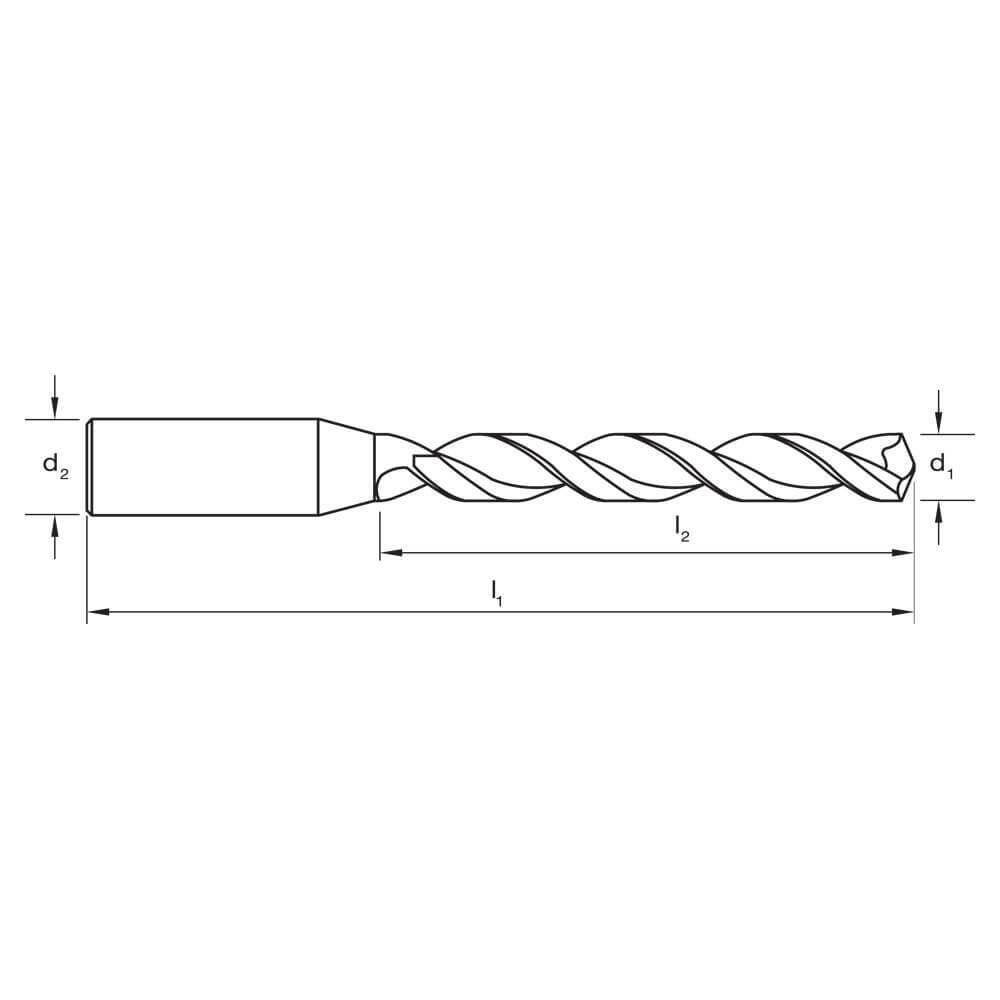

  • Thread Diameter (mm) 1
  • Overall Length (mm) 41
  • Shank (mm) 3
  • Flute Length (mm) 12
  • Group Code D168
  • Type Jobber Drill Bit
  • System of Measurement Metric,DIN 338
  • Material High Speed Steel Cobalt (SPM-HSS Co11%)
  • Finish Titanium Aluminium Nitride (TiAIN)
  • Helix Angle R40
  • Shank Tolerance h7
  • Shank Form A
  • Maximum Cut Depth 5XD
  • Point Tolerance h8
  • Point Form 130 4 Facet Form B
SKU: A0005415

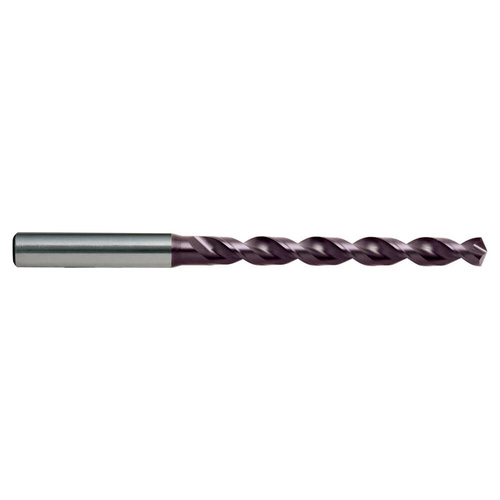

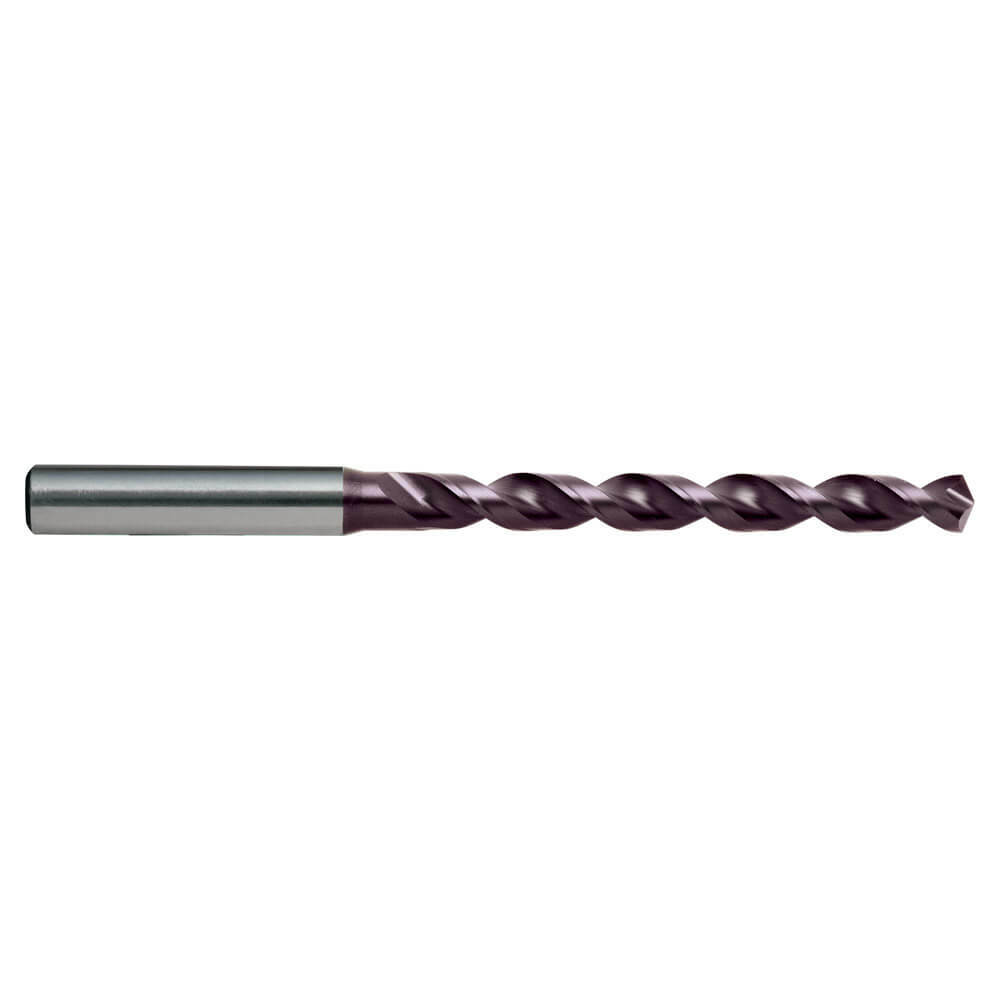

Sutton D1680100 1mm Jobber Drill Bit - R40 UNI - SPM HSS Co11% - TiAlN

Sutton Tools Jobber Drill Bits - R40 UNI

$44.72
