Description

Descriptions

  • High performance drill
  • Suitable for materials up to 850N/mm2

Features

  • Special point geometry with radius cutting lips
  • Produces short chips
  • TiAlN for longer tool life

Specifications

  • Designation: WN
  • Material: High Speed Steel Cobalt
  • Finish: TiAIN
  • Maximum Cut Depth: 5XD
  • Shank Form: A
  • Helix Angle: R35
  • X: als
  • Point Tolerance: h8
  • Point Angle: 130°
  • Point Form: Form A
  • Cutting Edges: ul
  • Standard: DIN 338

Applications

  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 250 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 270 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
  • Optimal for Aluminum & Magnesium, wrought alloy - Non Heat Treatable- 60 HB
  • Optimal for Aluminum & Magnesium, wrought alloy - Heat Treatable- 100 HB
  • Optimal for Aluminum & Magnesium, cast alloy ≤12% Si - Non Heat Treatable- 75 HB
  • Optimal for Aluminum & Magnesium, cast alloy ≤12% Si - Heat Treatable- 90 HB
  • Optimal for Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1- 110 HB
  • Optimal for Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn)- 100 HB

Specifications

  • AIMS SKU A0005330
  • Brand Sutton Tools
  • Model Number D1650300
  • Barcode Number 9311963432366

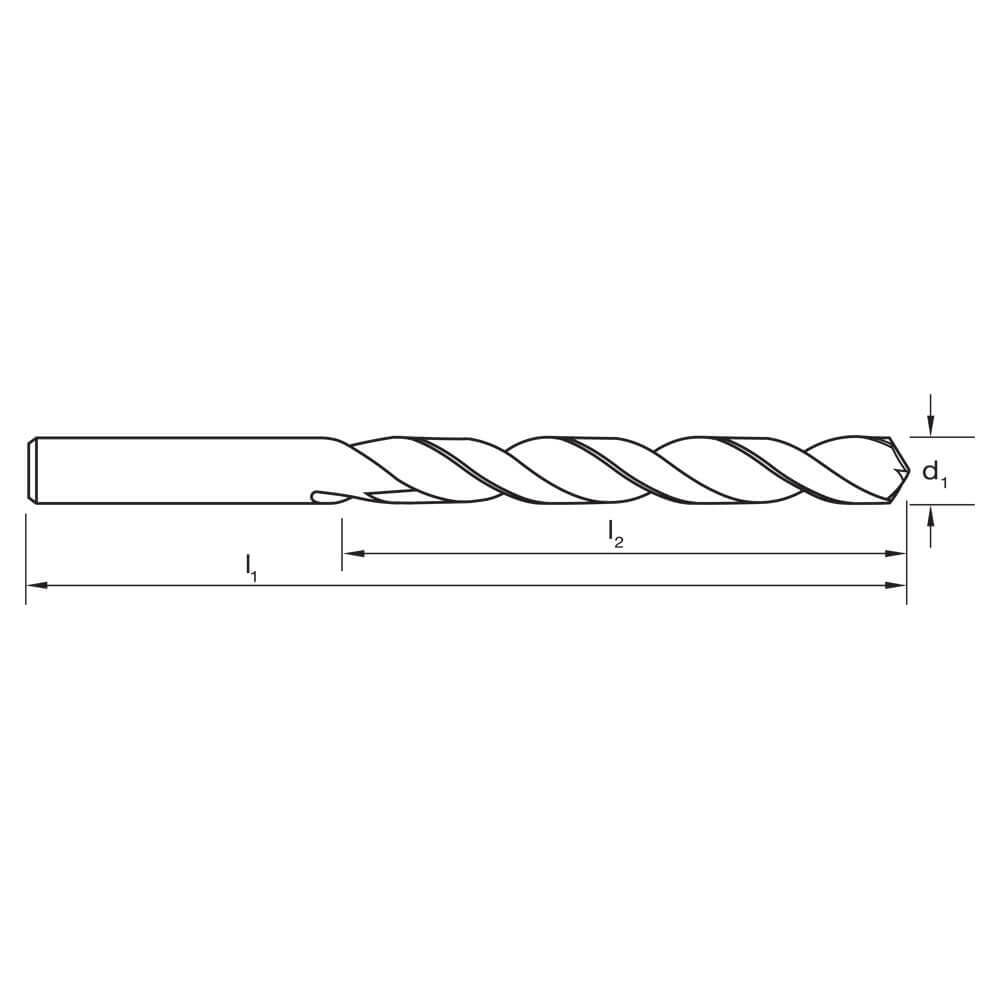

  • Thread Diameter (mm) 3
  • Overall Length (mm) 61
  • Flute Length (mm) 33
  • Group Code D165
  • Type Jobber Drill Bit
  • System of Measurement Metric,DIN 338
  • Material High Speed Steel Cobalt (HSS Co5%)
  • Finish Titanium Aluminium Nitride (TiAIN)
  • Helix Angle R35
  • Point Tolerance h8
  • Point Angle 130
  • Maximum Cut Depth 5XD
  • Shank Form A
  • Point Form A
SKU: A0005330

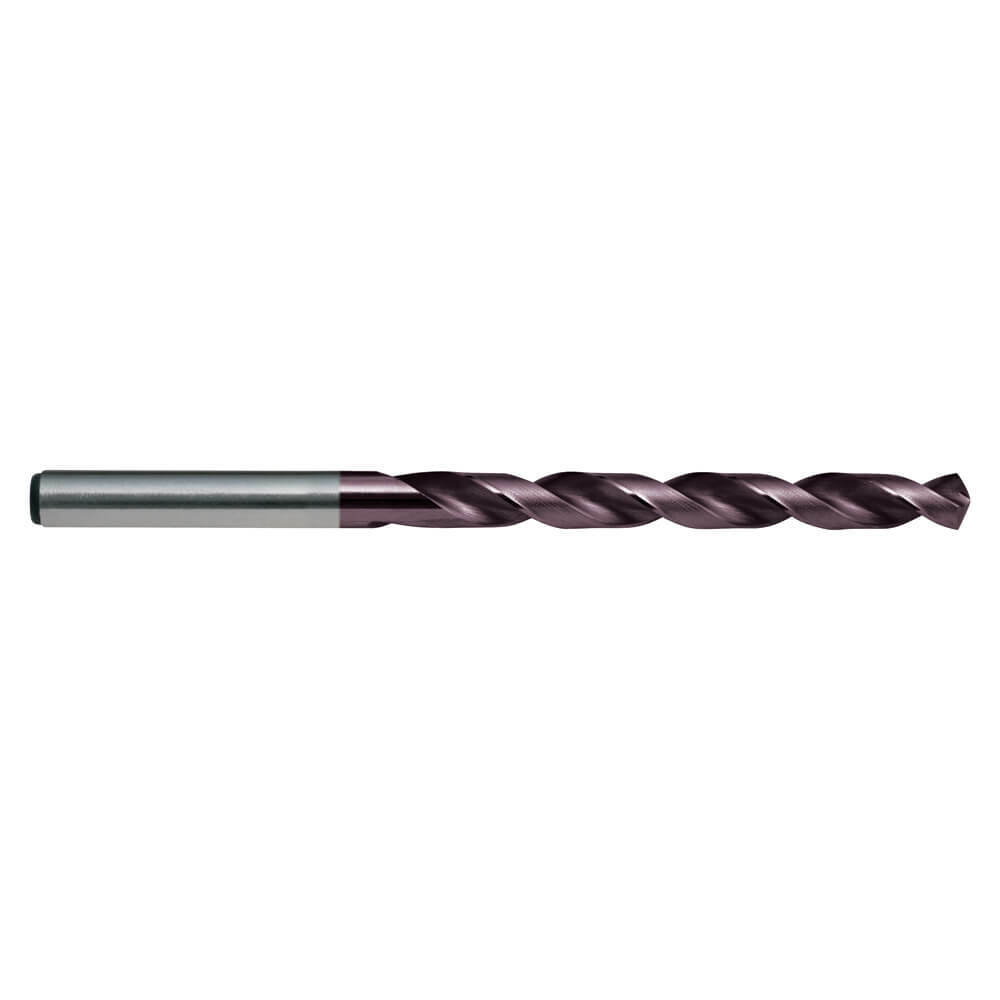

Sutton D1650300 3mm DXJ Jobber Drill Bit - DIN338 - Cobalt Steel - TiAlN

Sutton Tools Jobber Drill Bits - DXJ

$16.32
