Description

Descriptions

  • High performance drill
  • Suitable for materials up to 1200N/mm2

Features

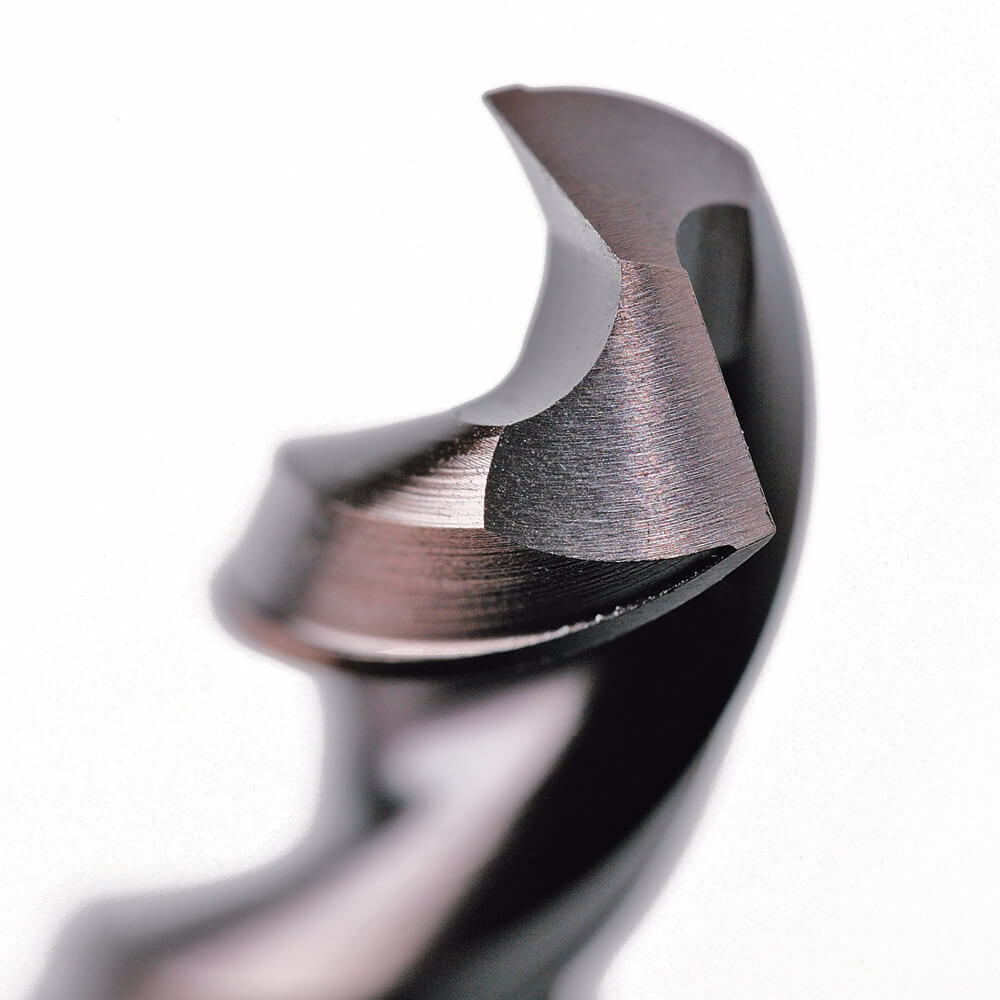

  • Point geometry ensures high strength
  • Parabolic flute design for optimal chip transportation
  • TiAlN for longer tool life

Specifications

  • Designation: NH
  • Material: High Speed Steel Cobalt
  • Finish: TiAIN
  • Maximum Cut Depth: 5XD
  • Shank Form: A
  • Helix Angle: R40
  • X: als
  • Point Tolerance: h9
  • Point Type: 130°
  • Cutting Edges: ul
  • Standard: DIN 338

Applications

  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 250 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 270 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 300 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 275 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 300 HB
  • Optimal for Steel - High alloy, cast & tool- 200 HB
  • Optimal for Steel - Corrosion resistant & cast - Ferritic / Martensitic- 200 HB
  • Optimal for Stainless Steel – Precipitation Hardening- 250 HB
  • Optimal for Cast Iron, Grey (GG) - Ferritic / Pearlitic- 180 HB
  • Optimal for Cast Iron, Grey (GG) - Pearlitic- 260 HB
  • Optimal for Cast Iron, Nodular (GGG) – Ferritic- 160 HB
  • Optimal for Cast Iron, Pearlitic (GGG) – Ferritic- 250 HB
  • Optimal for Cast Iron, Malleable – Ferritic- 130 HB
  • Optimal for Cast Iron, Malleable – Pearlitic- 230 HB
  • Optimal for Aluminum & Magnesium, cast alloy ≤12% Si - Heat Treatable- 90 HB
  • Optimal for Aluminum & Magnesium, cast alloy >12% Si - Heat Treatable- 130 HB
  • Optimal for Cast Iron – Chilled- 400 HB

Specifications

  • AIMS SKU A0005196
  • Brand Sutton Tools
  • Model Number D1630100
  • Barcode Number 9311963422367

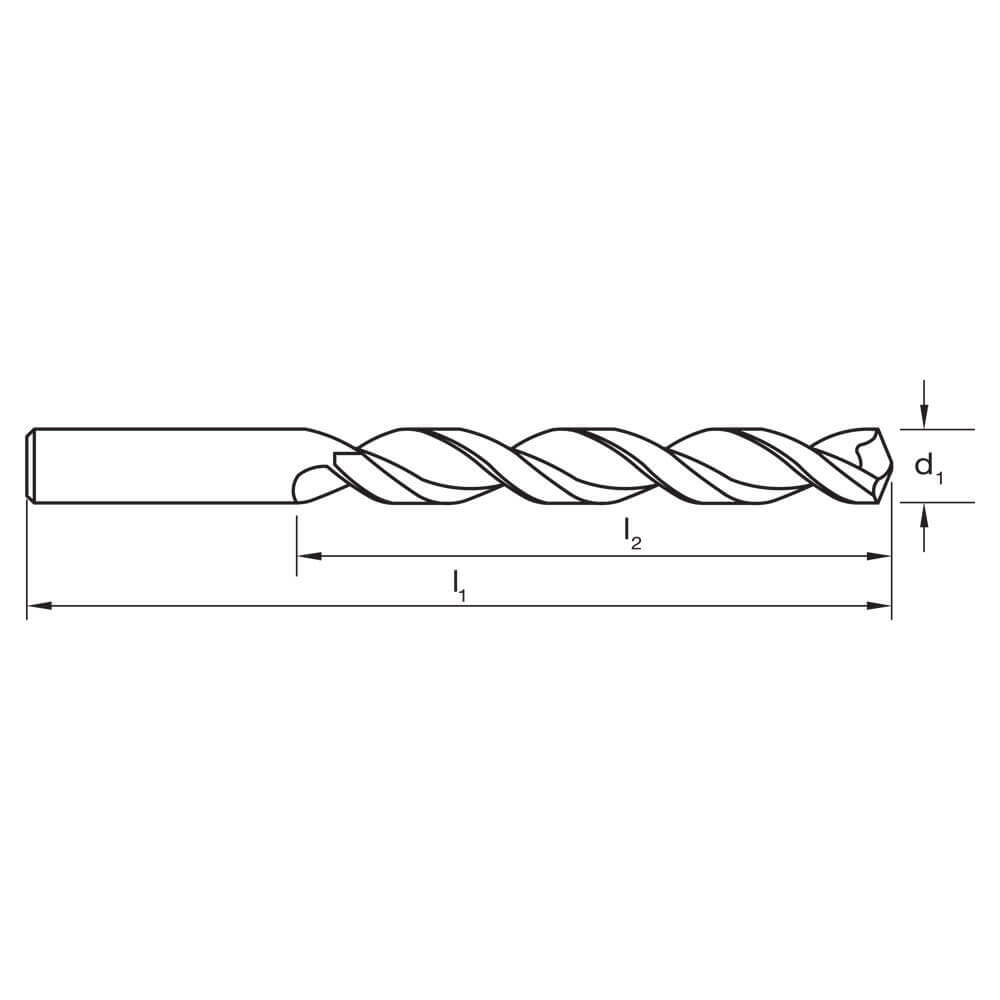

  • Thread Diameter (mm) 1
  • Overall Length (mm) 34
  • Flute Length (mm) 13
  • Point Form A
  • Group Code D163
  • Type Jobber Drill Bit
  • System of Measurement Metric,DIN 338
  • Material High Speed Steel Cobalt (HSS Co5%)
  • Finish Titanium Aluminium Nitride (TiAIN)
  • Helix Angle R40
  • Point Tolerance h9
  • Shank Form A
  • Maximum Cut Depth 5XD
  • Point Form 130
SKU: A0005196

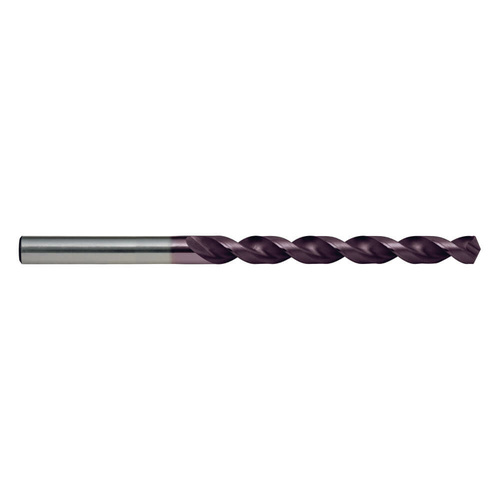

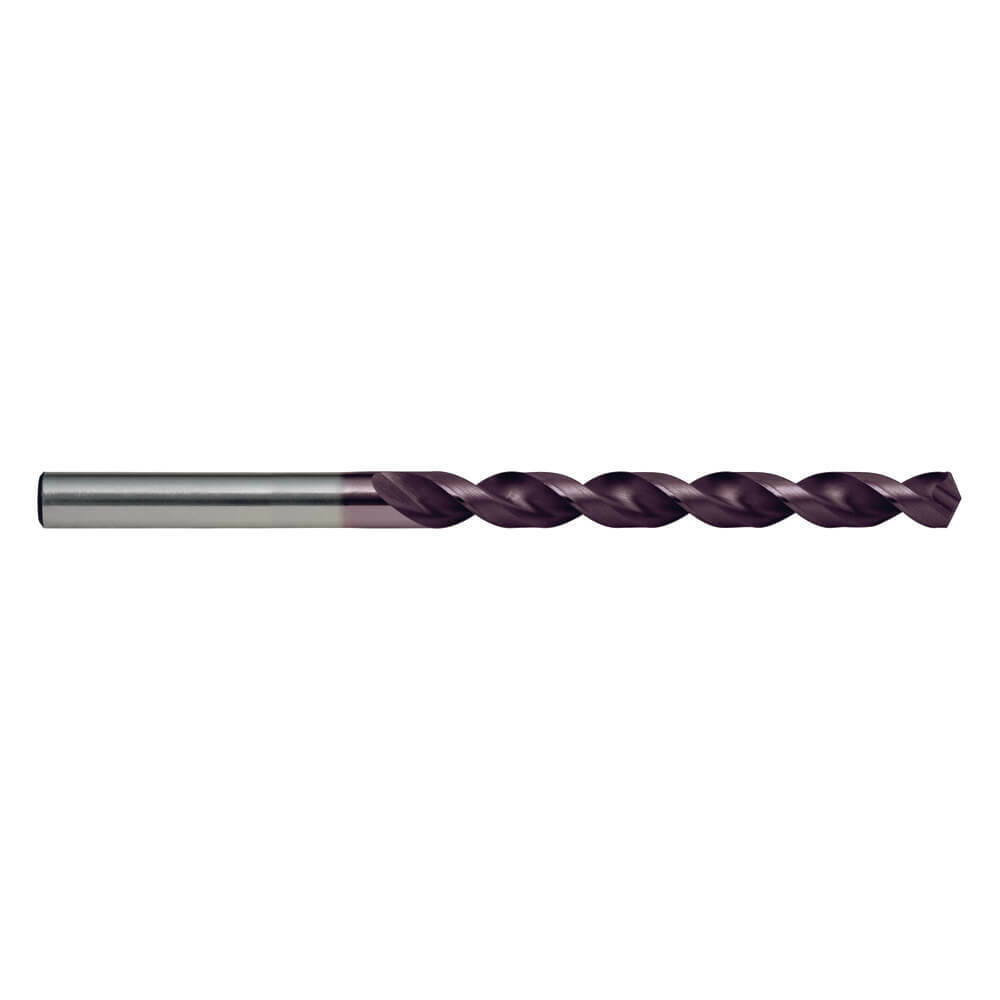

Sutton D1630100 1mm DHJ Jobber Drill Bit - DIN338 - Cobalt Steel - TiAlN

Sutton Tools Jobber Drill Bits - DHJ

$17.52
