Sutton Tools Heavy Duty Cobalt jobber drills are industrial quality for drilling materials that have high hardness and tensile strength such as cast iron, bronze, hardened steel & stainless steel. These drill bits feature a thick core for increased rigidity in hard materials.

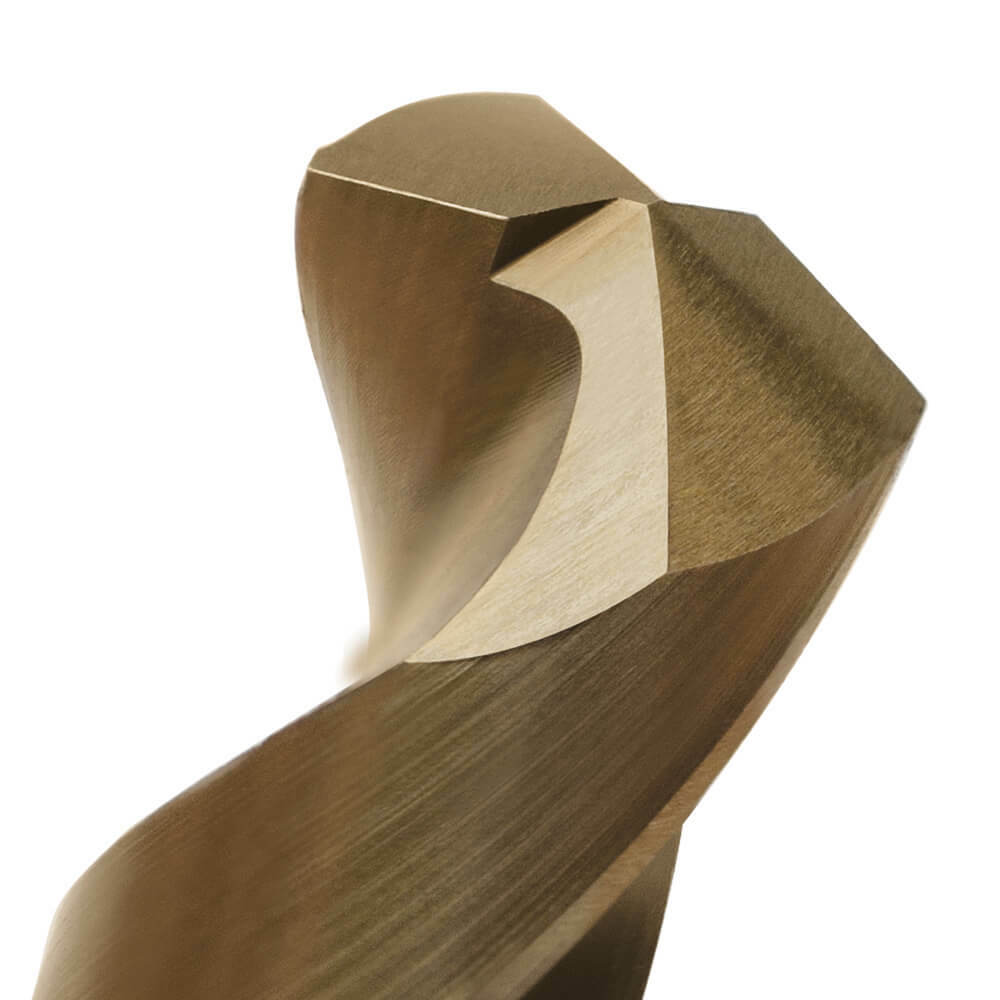

  • 135° split point (drills > 2mm & 3/32) enables accurate positioning and less drilling pressure
  • Thick core for increased rigidity in hard materials
  • Precision engineered parallel shank for accurate hole size
  • Made from HSS Co. The 5% cobalt formula improves abrasive & heat resistance, for increased strength at higher cutting temperatures
  • Colour Tempered surface finish enables identification of cobalt tool material


  • Designation: NH
  • Material: HSS Co
  • Finish: Colour Temp
  • Max Cut Depth: 5 x D
  • Shank Form: A
  • Helix Angle: R30
  • Point Tolerance: h8
  • Point Angle: 135°
  • Point Form: Form C


  • Effective use on soft wood, hard wood, wood & nails, chipboard, plywood, MDF, green wood, sandwich construction, pallet, window frame, aluminium, copper/brass, sheet metal, PVC plastic and plasterboard.
  • Optimal use on steel, hard steel, stainless steel, cast iron, and metal pipe.




  • AIMS SKU A0003562
  • Brand Sutton Tools
  • Model Number D1080150
  • Barcode Number 9311963181103

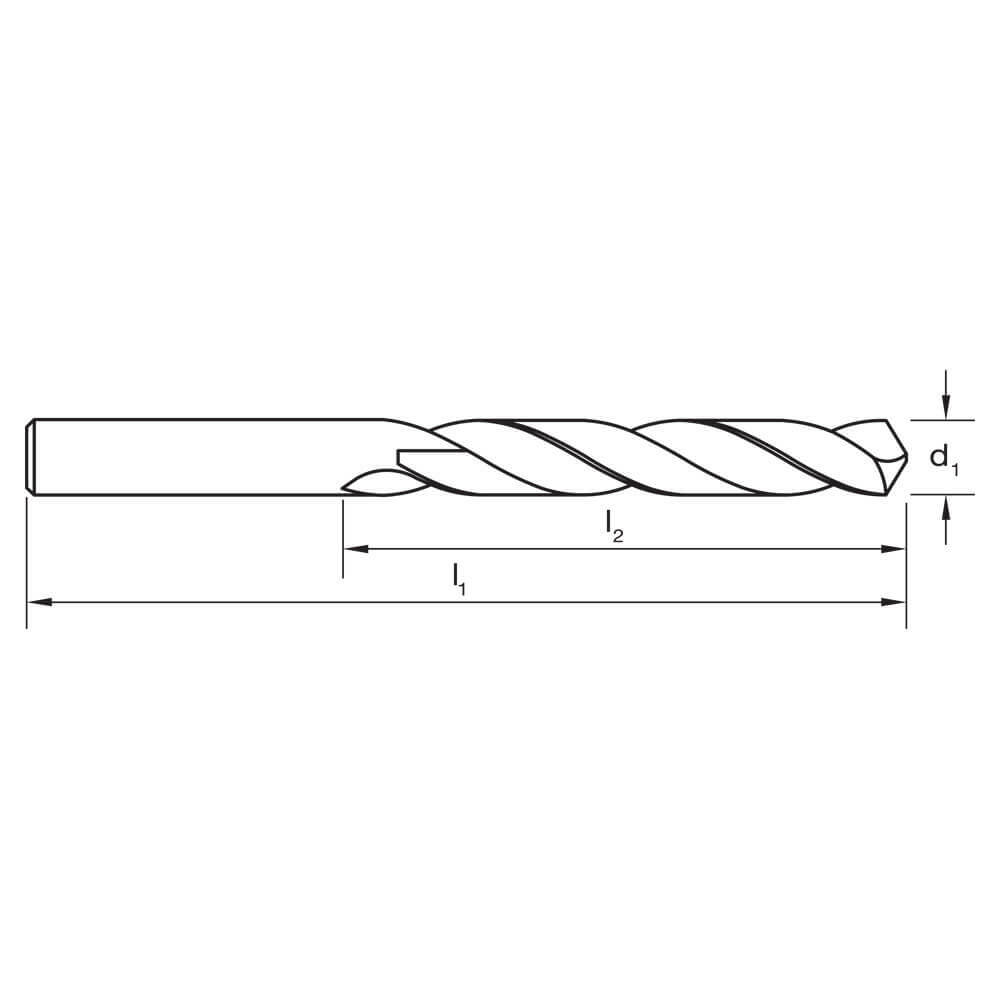

  • Thread Diameter (mm) 1.5
  • Overall Length (mm) 40
  • Flute Length (mm) 18
  • Group Code D108
  • Type Jobber Drill Bit
  • System of Measurement Metric
  • Material High Speed Steel Cobalt (HSS Co5%)
  • Helix Angle R30
  • Point Tolerance h8
  • Point Angle 135
  • Maximum Cut Depth 5XD
  • Shank Form A
  • Point Form C
SKU: A0003562

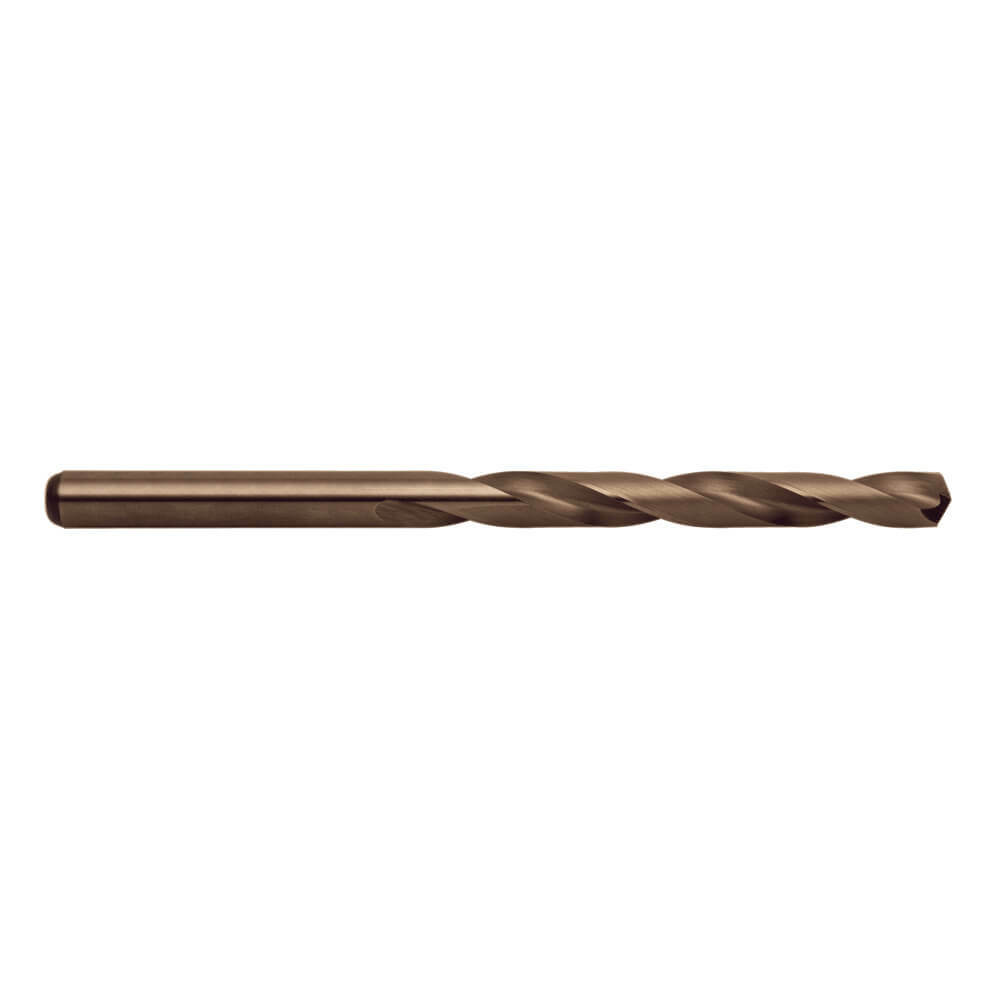

Sutton D1080150 1.5mm Heavy Duty Cobalt Jobber Drill Bit - Colour Temp

Sutton Tools Jobber Drill Bits - Heavy Duty Cobalt
