Sutton 1mm Blue Bullet Jobber Drill Bit - Metric - HSS

The Sutton D102 Blue Bullet is a jobber drill in HSS with a blue steam-oxide finish. It has 30° right-hand helix flutes (R30), a 118° point (standard on the smallest sizes, Form A on larger sizes), and is made to DIN 338.

General-purpose drill; designed for machine and hand-held drilling.

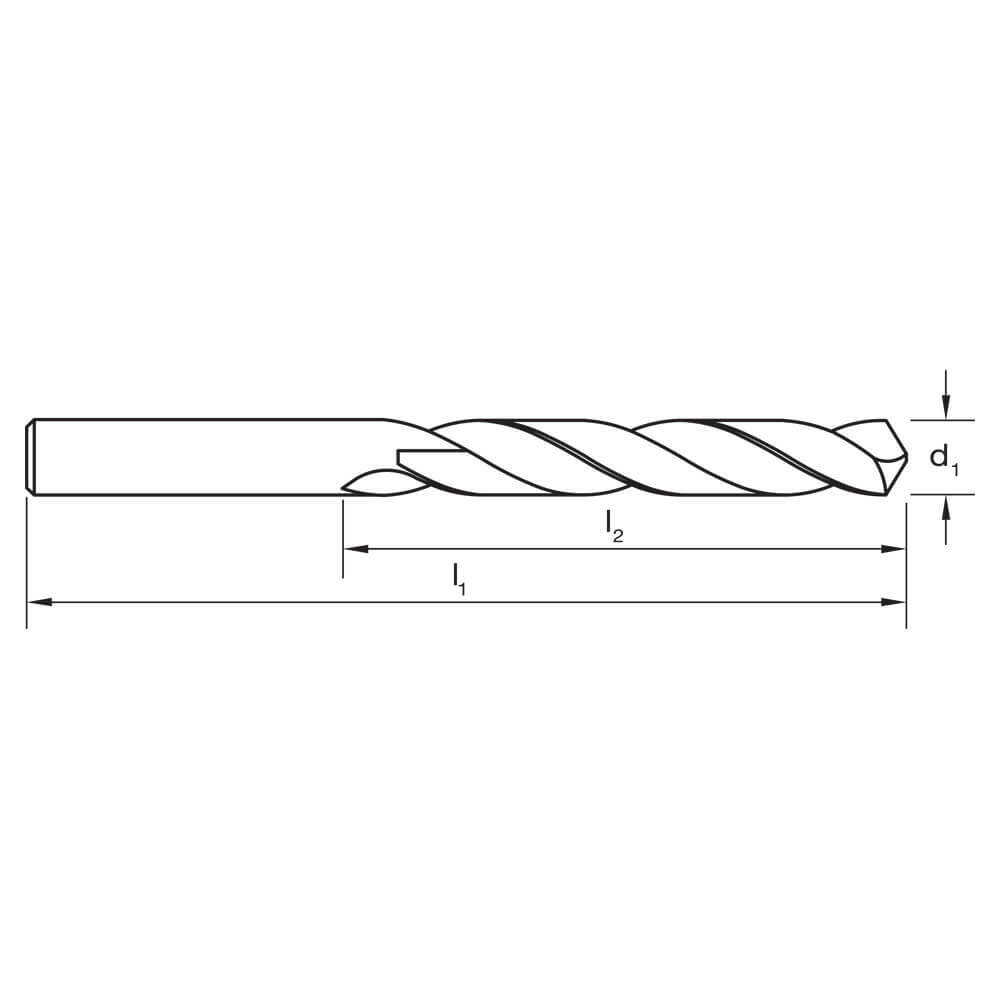

This is the metric range: 171 sizes from 1 to 16 mm, with flute lengths of 12 to 120 mm and overall lengths of 34 to 178 mm. Working to a different size system? The same drill is also listed as a fractional-inch range. Pack quantities by size: 1.05 mm to 7.3 mm: pack of 10; 7.6 mm and over: pack of 5.

Where this product is used

• Machine drilling on a drill press, mill or lathe and, where the drill's catalogue entry allows it, hand-held drilling.
• Materials rated Optimal for this drill: non-alloy steel, about 0.15 %C, annealed; non-alloy steel, about 0.45 %C, annealed; non-alloy steel, about 0.45 %C, quenched and tempered (250 HB); non-alloy steel, about 0.75 %C (annealed and quenched and tempered); low-alloy steel (under 5% alloying elements), annealed; low-alloy steel, quenched and tempered (275 to 350 HB); and high-alloy and tool steel.
• Also rated Effective: ferritic/martensitic stainless steel; austenitic stainless steel; duplex stainless steel; grey cast iron; nodular cast iron; malleable cast iron; wrought aluminium and magnesium alloys; thermosetting and fibre-reinforced plastics; and chilled cast iron.
• Hole depths to 5 × Ø. Step feeding or pecking is required beyond 3 × Ø.

Finish

Blue (steam oxide). The blue steam-oxide finish is for ferrous metals: it helps prevent chip build-up on the cutting edges (especially in carbon steels), the oxide layer protects the surface and it carries lubricant well.

Cutting speeds and feeds

Cutting speeds (Vc) and feed numbers for this drill are from the Sutton Application Guide. The table lists the material groups covered, with the speed and the rpm and feed it works out to at Ø6 mm and Ø10 mm. Speed (rpm) = Vc × 1000 ÷ (π × Ø). Treat these as starting values and adjust for the machine, set-up and coolant.

Feed rates (mm/rev) for the feed numbers above:

Drilling notes

• Step feeding or pecking is required for holes deeper than 3 × Ø.
• When drilling a cast or black (not machined) surface, reduce the drilling speed by 20%.
• For optimal positional accuracy and hole size, spot the hole first with a Sutton spotting drill (D175).
• For hole depths greater than 7 × Ø, pre-drill a pilot hole first for accurate hole position and to stop the drill wandering. The pilot can be drilled with a short, rigid drill, about 3 × Ø deep, at reduced feed.

Deep holes: reduce speed and feed as hole depth increases.

Accuracy

Sutton drills are ground to an h8 diameter tolerance (the diameter may be at nominal or smaller, never larger) with a small back taper behind the point.

Troubleshooting

• Drill breaks. Dull point: sharpen; Drill has front taper due to wearing: sharpen; Insufficient lip clearance on point: grind correctly; Lip clearance too great: regrind to correct clearance angle.
• Outer corner breaks down. Flutes clogged with chips: remove drill from hole and clear the flutes; Cutting speed too high: reduce speed; Dry cutting, no lubricant at cutting edges: apply cutting fluid.
• Cutting edges chip. Lip clearance too great: regrind to correct clearance angle; Feed too heavy: reduce feed.
• Hole rough. Dull point: sharpen; Feed too heavy: reduce feed; Dry cutting, no lubricant at cutting edges: apply cutting fluid; Fixture/clamping not rigid: secure job firmly.
• Hole oversize. Unequal angle or uneven length of cutting edges: regrind to same lip lengths and angles; Spindle run-out / loose spindle: check machine.

Key specifications
