Description

Sutton Tools Blue Bullet jobber drills are a general purpose drill bit designed for machine and hand held drilling ferrous metals. The blue finish reduces chip build up on the cutting edge and is a better choice when drilling ferrous materials.

Features

  • 118° web thinned point reduces the amount of thrust required
  • Precision engineered parallel shank for accurate hole size
  • Made from M2 High Speed Steel (HSS) offering the best combination of strength, heat & wear resistance
  • Blue surface finish for ferrous applications. The steam oxide finish prevents chip build-up on the cutting edges and reduces cutting friction, especially in low carbon steels

Specifications

  • Designation: N
  • Material: HSS
  • Finish: Blu
  • Max Cut Depth: 5 x D
  • Shank Form: A
  • Helix Angle: R30
  • Point Tolerance: h8
  • Point Angle: 118°
  • Point Form: Form A
  • Standard: ANSI B94-11 / DIN338

Applications

  • ISO: H
  • VDI: 41
  • Description: Cast Iron
  • Condition: Hardened and Tempered
  • Hardness: 55HRC

Specifications

  • AIMS SKU A0003066
  • Brand Sutton Tools
  • Model Number D1020159
  • Barcode Number 9311963009834
  • Thread Diameter (inch) 1/16
  • Overall Length (mm) 48
  • Flute Length (mm) 22
  • Group Code D102
  • Type Jobber Drill Bit
  • System of Measurement DIN 338,Imperial,ANSI B94-11
  • Material High Speed Steel (HSS)
  • Finish Steam Oxide (Blue)
  • Helix Angle R30
  • Maximum Cut Depth 5XD
  • Shank Form A
  • Point Form A
  • Point Tolerance h8
  • Point Angle 118
SKU: A0003066

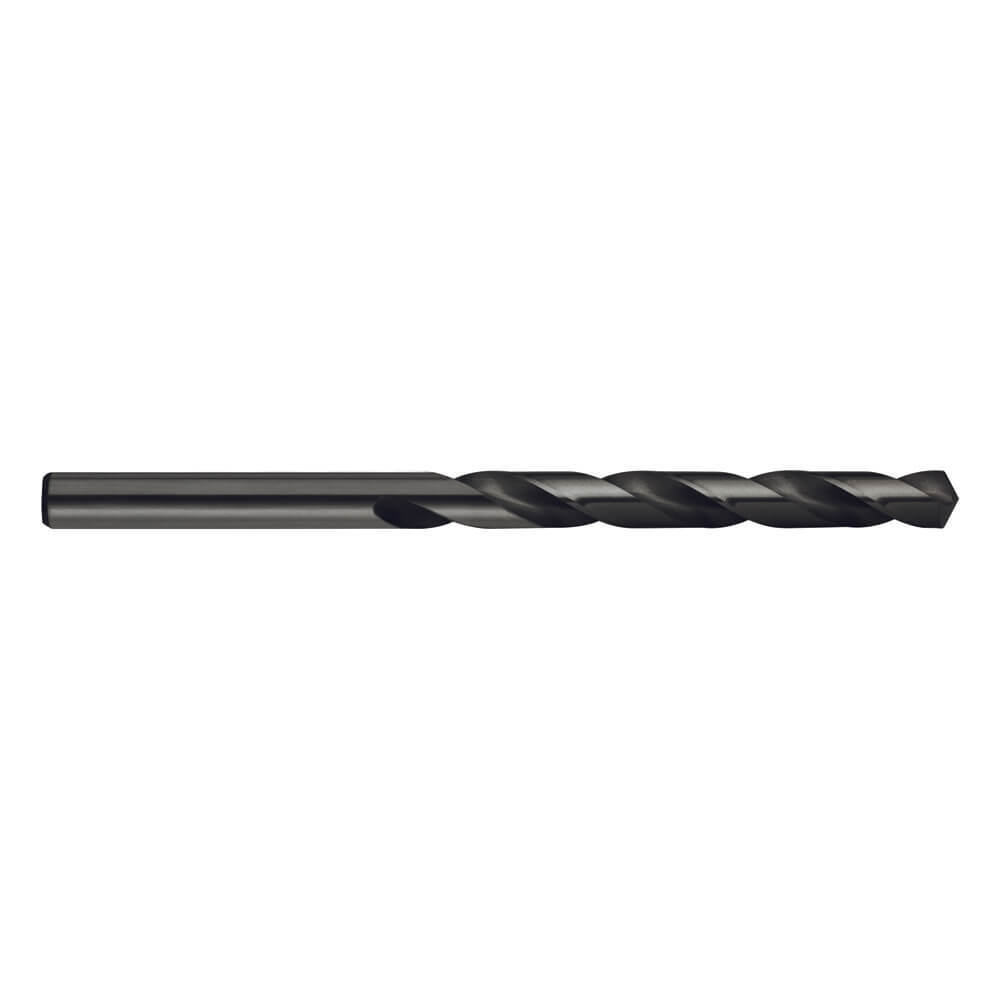

Sutton D1020159 1/16" Jobber Drill Bit Blue Bullet - HSS

Sutton Tools Jobber Drill Bits - Blue Bullet

$2.88
RRP $42.90
SAVE $40.02 (93%)
