Sutton B315SA3AC Cylindrical Square End Carbide Burr, 9.5 x 19.1mm, Aluminium Cut
Available

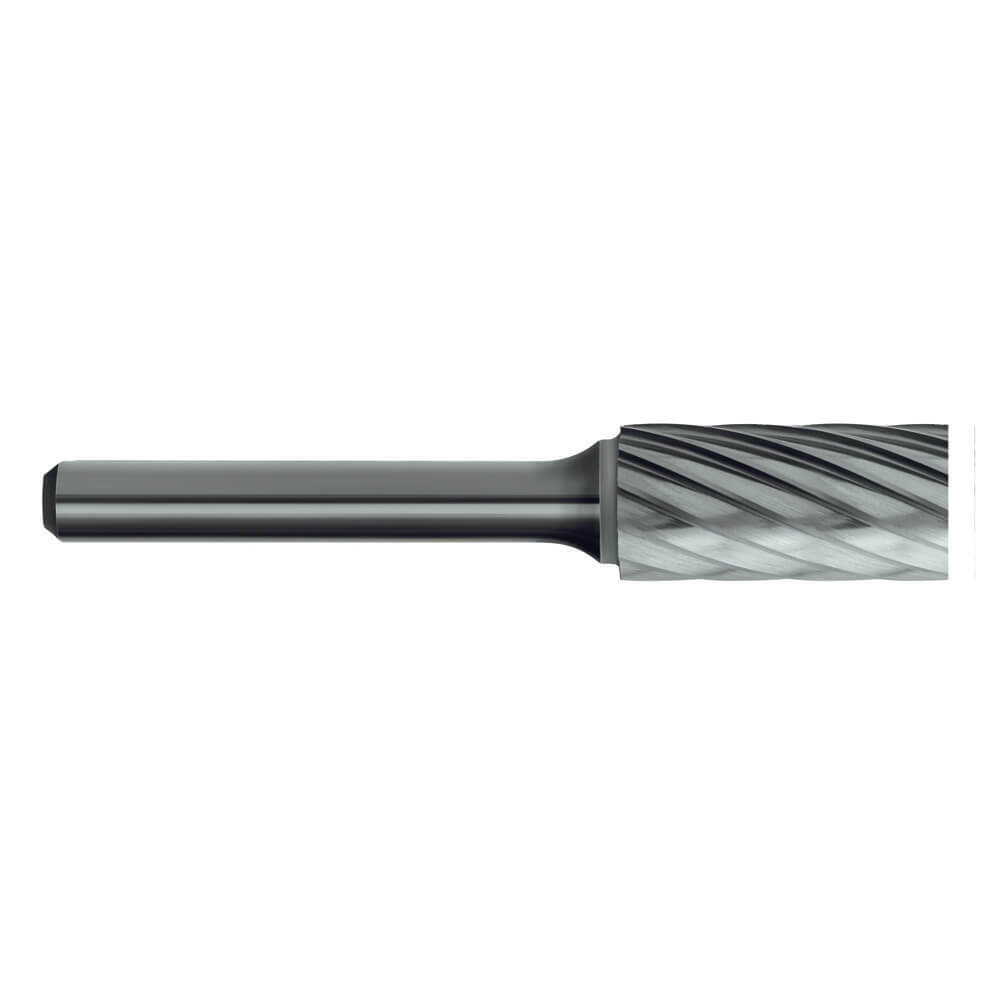

The Sutton B315SA3AC is an aluminium cut, cylindrical square end carbide burr with a solid carbide (VHM) head and bright finish, supplied with a 6 mm shank. Head diameter is 9.5mm, cut length is 19.1mm, overall length is 64mm and the shank diameter is 6mm.
The Al Cut pattern is for rapid stock removal of soft materials such as aluminium, brass, copper and plastics that would normally load other cuts.
Fit it to a die grinder or other high-speed rotary tool with a collet that matches the shank, and keep to the recommended speeds for the head diameter shown below.
Where this burr is used
- Grinding and deburring flat surfaces, square corners and edges with the side and the flat end of the burr
- Squaring up and cleaning out slots, pockets and keyways
- Removing weld bead, flash and casting fins
- Aluminium, brass, copper and plastics: soft materials that tend to load a standard cut
- Weld cleanup, deburring and shaping in fabrication, toolroom, foundry, engineering workshop and maintenance (MRO) work
Design features
- Al Cut pattern: for rapid stock removal of soft materials such as aluminium, brass, copper and plastics that would normally load other cuts
- Solid carbide (VHM): VHM construction is designed to give optimum strength, hardness and wear resistance
- Bright finish
- Head profile: cylinder with a flat (square) end
- Shank: 6 mm, fits 6 mm die grinder collets
Dimensions

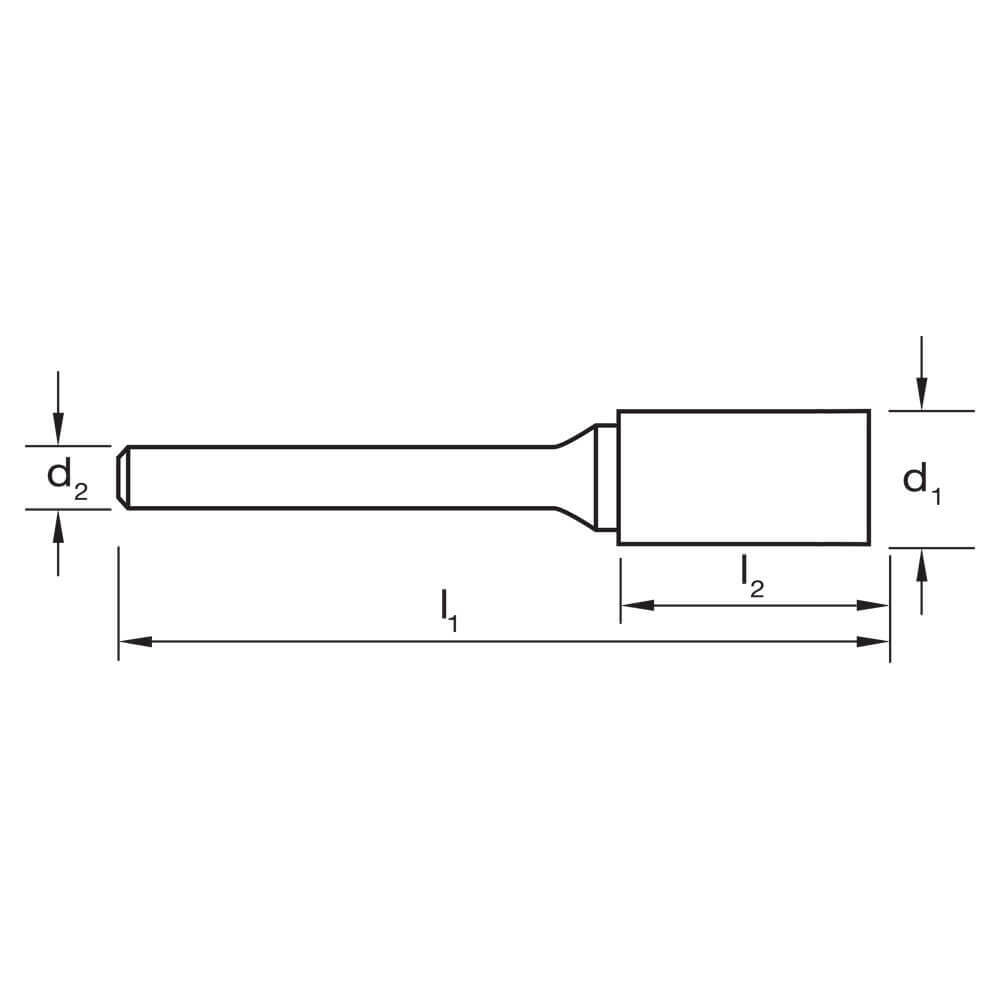

Dimensions: d1 is the head diameter, l2 the cut length, l1 the overall length and d2 the shank diameter.
| Item no. | Head diameter d1 (mm) | Cut length l2 (mm) | Overall length l1 (mm) | Shank d2 (mm) |
|---|---|---|---|---|
| B315SA3AC | 9.5 | 19.1 | 64 | 6 |
Recommended cutting speeds
Recommended speeds by head diameter, from Sutton's cutting speed guide for standard length burrs.
| Head diameter | Aluminium cut (RPM) | Maximum (RPM) |
|---|---|---|
| 3/8" (9.5 mm) | 20,000 | 27,000 |
Key specifications
| Specification | Detail |
|---|---|
| Brand | Sutton |
| Item number | B315SA3AC |
| Head shape | Cylindrical Square End |
| Cut | Aluminium Cut |
| Material | Solid carbide (VHM) |
| Finish | Bright |
| Shank | 6 mm |
| Head diameter | 9.5 mm |
| Overall length | 64 mm |
| System of measurement | Metric |
Related Sutton carbide burrs
Compare other shapes and lengths in this range: B300 cylindrical square end carbide burrs (metric, 6 mm shank, double cut), B215 cylindrical square end carbide burrs (aluminium cut), B200 cylindrical square end carbide burrs (double cut), B210 cylindrical square end carbide burrs (double cut, long reach), B900SCB100 carbide burr set (5 piece), B900SCB300 carbide burr set (5 piece).
