Description

*** JTEKT (Formerly Koyo Brand) ***

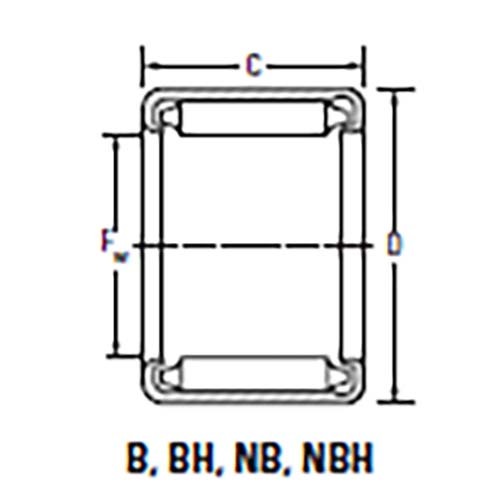

Shell Type Needle Roller Bearing Full Complement Heavy Duty (BH)

BH, drawn cup bearing, full complement, open ends.

About Drawn Cup Needle Roller Bearing

Drawn cup needle roller bearings support radial loads and reduce friction between rotating components, with a drawn outer shell serving as a raceway for the rollers.
The small cross section of the drawn cup bearing provides high load-carrying capability with minimum required space.
Drawn cup bearings are easily installed with a press fit in the housing.

Features

Available in two basic designs: full complement and caged.

Benefits

Full complement bearings handle high radial load-carrying capability.
Caged bearings provide high speed and maximum lubricant-retention capability.

Specifications

AIMS SKU A0157243

Brand Koyo

Model Number BH-168/KOYO

Outside Diameter 1/2

Load Rating Dynamic C (kn) 16.6

D (in) 1

Inside Diameter (in) 0.5

Outside Diameter (in) 1

Load Rating Static C0 (lbf) 3740

Fw (in) 0.031

X Max (mm) 2.79

Fw (mm) 25.4

Shaft Diameter (in) 1

D (mm) 33.338

C (+0/+0.000-0.3/-0.012) in 1.3125

Load Rating Dynamic C (lbf) 0.11

Load Rating Static C0 (kn) 25.6

Width (in) 1 5/16

Bore Diameter 1/2 in

Width 1 5/16 in

Shaft Diameter (mm) 5760

C (+0/+0.000-0.3/-0.012) mm 12.7

X Max (in) 1 in

Type Needle Roller Bearing
