Description

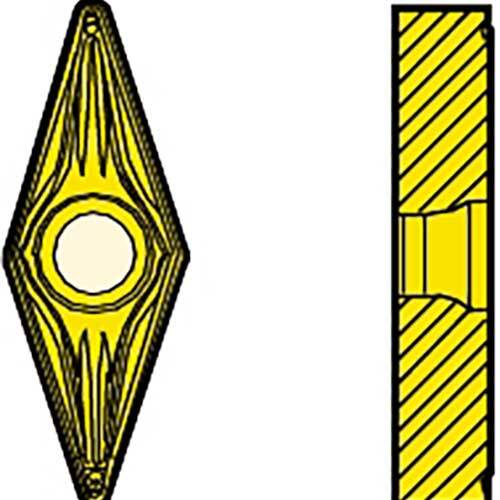

Turning Insert VBMT Insert Style - M5 5° Grade TM2501

  • V shape code
  • T Insert Type.
  • 5° insert side clearance angles.

TM2501 Insert Grade

  • Duratomic® grade.
  • A highly capable grade for austenitic stainless steel turning with combinations of high resistance and superior edge toughness.
  • First choice in austenitic stainless steel turning. Complements in steel turning with heavy intermittent cuts.
  • Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

M5 Chipbreaker Programme

  • The choice for roughing by means of double-sided inserts.
  • Intended for demanding operations at high feed rates in steel. stainless steel and cast iron.
  • Combines high edge strength with comparatively low cutting forces.
  • Recommended machining range: f = 0,3-0,7 mm/rev,ap = 1,5-7,0 mm.
  • (f = 0.012-0.028 in/rev,ap = 0.060-0.280 inch).

About Seco Turning Insert

  • Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
  • Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
  • to boost the productivity and tool life in your turning applications.
  • Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

  • AIMS SKU A0158547
  • Brand Seco
  • Model Number 03276629
  • Net Weight (kg) 0.008
  • Type Turning Insert

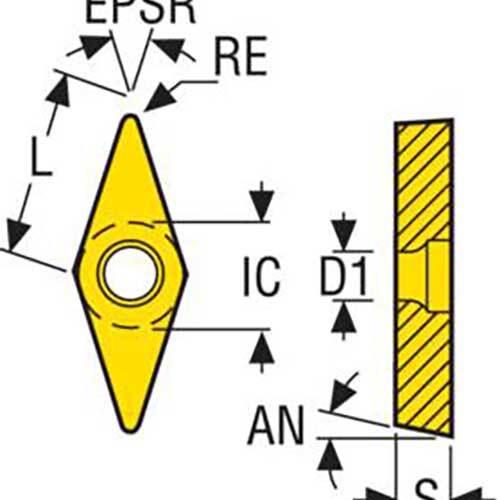

  • Fixing Hole Diameter (d1) Mm 4.5
  • Corner Radius (RE) mm 0.8
  • Insert Hand (IH) Neutral
  • Grade Type Carbide CVD:Designation:VBMT160408-M5 TM2501
  • Chip Breaker Manufacturers Designation (CBMD) M5
  • Clearance Angle Major (an) Deg 5.0 deg
  • Insert Thickness (S) mm 4.76
  • Insert Included Angle (EPSR) 35.0 deg
  • Grade TM2501
  • Theoretical Cutting Edge Length (L) mm 16.61
  • Inscribed Circle Diameter (IC) mm 9.53
  • Cutting Edge Effective Length (LE) mm 14.63
  • Cutting Edge Count (CEDC) 2
  • Insert Seat Size Code (SSC) mm 16
SKU: A0158547

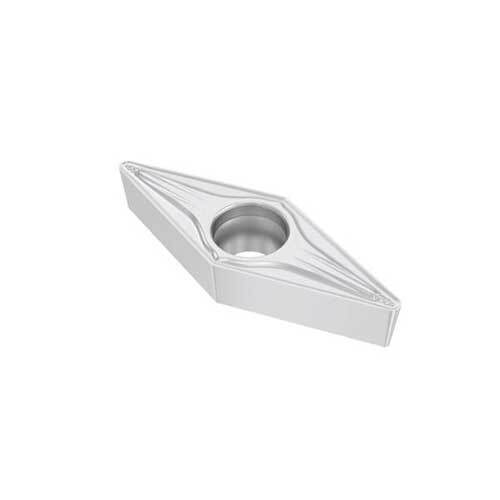

Seco Turning Insert V Shape Code 4.76 x 0.8 x 9.53mm T Insert Type - M5 5° Grade TM2501 VBMT160408-M5 Pack of 5

Turning Insert VBMT Insert Style - M5 5° Grade TM2501

$147.29
