Seco Turning Insert T Shape Code 4.76 x 1.2 x 12.7mm M Insert Type - R4 Grade TP1501 ± 0.13/± 0.05mm Tolerance TNMM220412-R4,TP1501 - Pack of 10

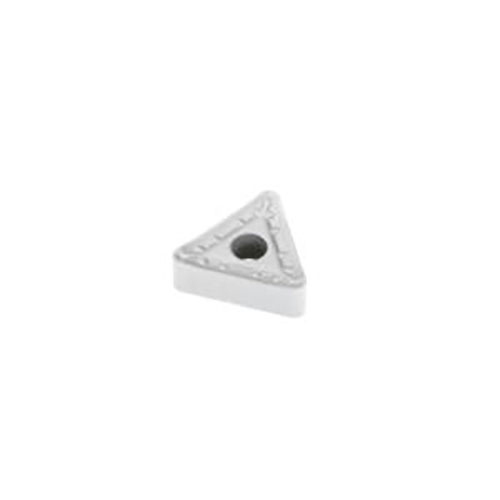

***Illustrations shown may vary from actual product***

Seco Turning Insert T Shape Code 4.76 x 1.2 x 12.7mm M Insert Type - R4 Grade TP1501 ± 0.13/± 0.05mm Tolerance TNMM220412-R4,TP1501 10pcs

Turning Insert TNMM Insert Style - R4 Grade TP1501

• T shape code.
• M insert type, with hole and chipbreaker on one face only.
• TP1501 insert grade.

TP1501 Insert Grade

• Duratomic® grade.
• Highly heat and wear-resistant grade extremely well suited for productive general turning of steels and a useful backup in other material groups.
• Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

R4 Chipbreaker Programme

• Chipbreaker for single-sided inserts. It has a positive cutting edge which gives low cutting forces.
• Indicative machining range: f = 0,2–0,6 mm/rev, ap = 2–10 mm.

About Seco Turning Insert

• Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
• Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
• To boost the productivity and tool life in your turning applications.
• Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.
