Description

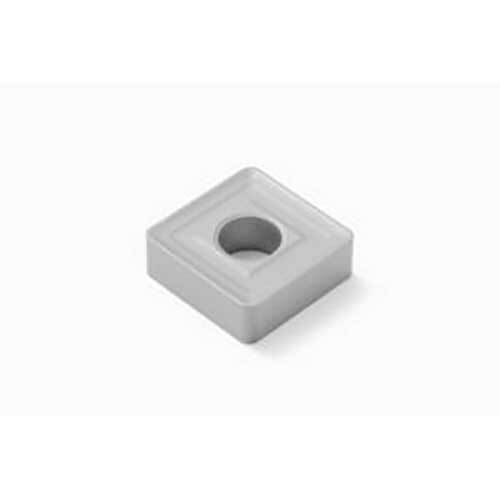

Turning Insert SNMM Insert Style - R57 Grade TP25

  • S shape code.
  • M Insert Type.

TP25 Insert Grade

  • The universal grade for highly versatile performance over a wide range of applications in steels, stainless steels, and cast irons.
  • Trustworthy alternative at limited cutting speeds or high surface finishes requirements.
  • Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

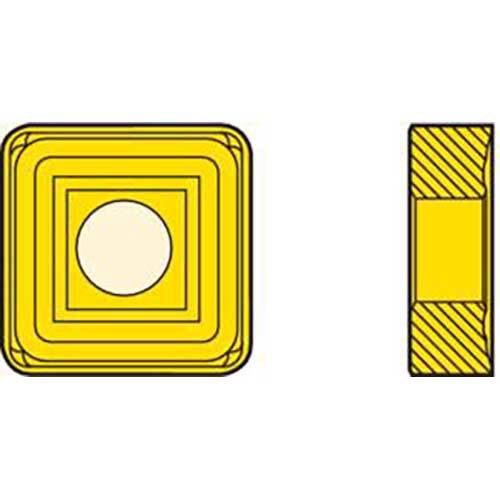

57 Chipbreaker Programme

  • Chipbreaker for single-sided roughing inserts. Recommended for roughing operations on steel at high feed rates and high depth of cut.
  • Indicative machining range: f = 0,45-1,10 mm/rev, ap = 2-12 mm.

About Seco Turning Insert

  • Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
  • Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
  • to boost the productivity and tool life in your turning applications.
  • Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

  • AIMS SKU A0158549
  • Brand Seco
  • Model Number 03280000
  • Net Weight (kg) 0.059
  • Type Turning Insert

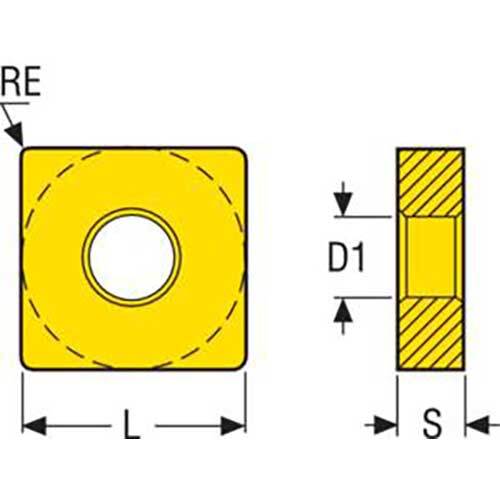

  • Fixing Hole Diameter (d1) Mm 9.1
  • Corner Radius (RE) mm 2.4
  • Insert Hand (IH) Neutral
  • Grade Type Carbide CVD:Designation:SNMM250724-R57 TP25
  • Chip Breaker Manufacturers Designation (CBMD) R57
  • Clearance Angle Major (an) Deg 0.0 deg
  • Insert Thickness (S) mm 7.94
  • Insert Included Angle (EPSR) 90.0 deg
  • Grade TP25
  • Theoretical Cutting Edge Length (L) mm 25.4
  • Inscribed Circle Diameter (IC) mm 25.4
  • Cutting Edge Effective Length (LE) mm 23
  • Cutting Edge Count (CEDC) 8
  • Insert Seat Size Code (SSC) mm 25
SKU: A0158549

Seco Turning Insert S Shape Code 7.94 x 2.4 x 25.4mm M Insert Type - R57 Grade TP25 SNMM250724-R57 Pack of 10

Turning Insert SNMM Insert Style - R57 Grade TP25

$948.56
