Description

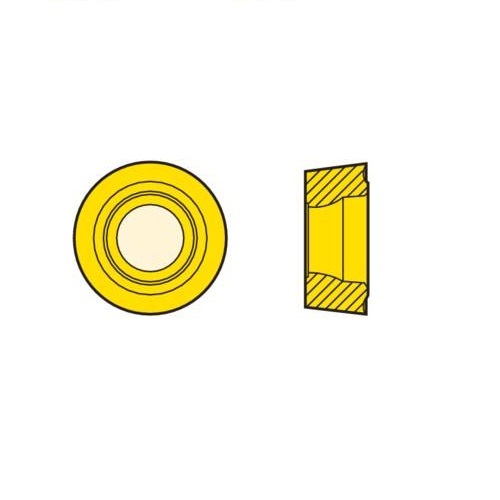

Turning Insert R Shape Code T Insert Type - F1 7° Grade CP500

  • R shape code
  • T Insert Type.
  • 7° insert side clearance angles.

CP500 Insert Grade

  • PVD coated.
  • Tough micrograin grade intended for finishing to medium-roughing of stainless steel but with wide applicability for example in steels and aluminium alloys.
  • Especially suitable in intermittent cuts.
  • (Ti, Al)N + TiN.

F1 Chipbreaker Programme

  • Chipbreaker for positive inserts. Positive geometry with a sharp cutting edge gives easy-cutting properties.
  • Suitable for high feed rates at fine depths of cut in precision forgings and castings.
  • Indicative machining range: f = 0,1-0,5 mm/rev, ap = 0,2-3,0 mm.
  • Machining in bar automatics, for instance: f = 0,08-0,25 mm/rev, ap = 1-3 mm.

About Seco Turning Insert

  • Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
  • Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
  • to boost the productivity and tool life in your turning applications.
  • Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

  • AIMS SKU A0116135
  • Brand Seco
  • Model Number 98008
  • Barcode Number 98008000001008
  • Designation RCMT0602M0-F1,CP500
  • Grade Grade CP500
  • Tolerance ñ 0.13/ñ 0.05mm

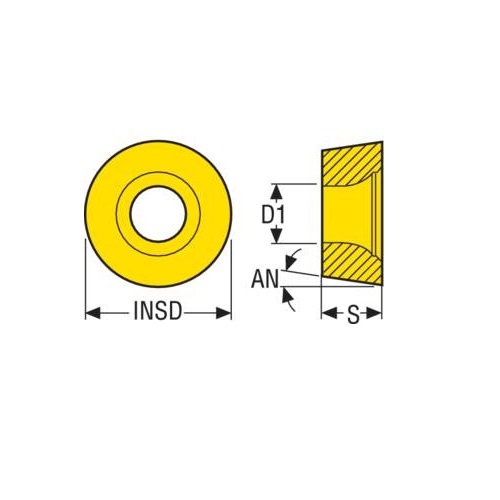

  • Insert Diameter (insd) Mm 6
  • Insert Seat Size Code (SSC) 6
  • Cutting Edge Count (CEDC) 4
  • Fixing Hole Diameter (d1) Mm 2.9
  • Fixing Hole Diameter D1 Mm 2.9
  • Insert Thickness (S) mm 2.38
  • Grade Type Carbide PVD
  • Chipbreaker Programme F1
  • Clearance Angle Major (an) Deg 7.0 deg
  • Insert Shape Code (SC) R
  • Insert Hand (IH) Neutral
  • Type Turning Insert
  • Insert Style RCMT
  • Insert Grade Grade CP500
SKU: A0116135

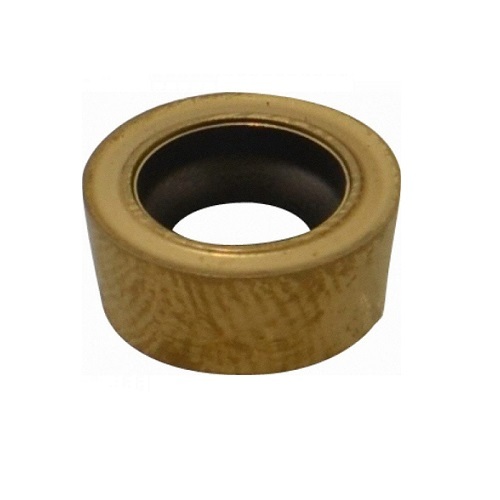

Seco Turning Insert R Shape Code 2.9 x 2.38 x 6mm T Insert Type - F1 7° Grade CP500 ± 0.13/± 0.05mm RCMT0602M0-F1 Pack of 10

Turning Insert RCMT Insert Style - F1 7° Grade CP500

$115.36
