Description

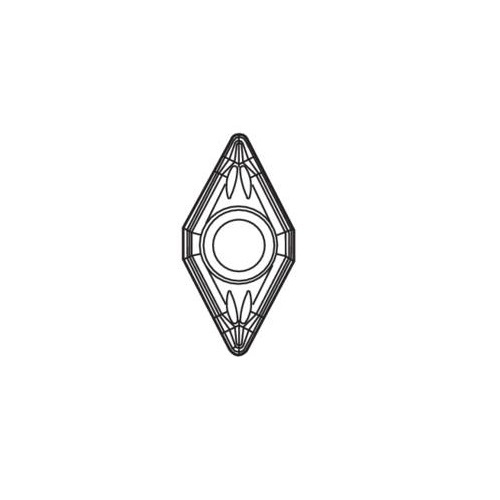

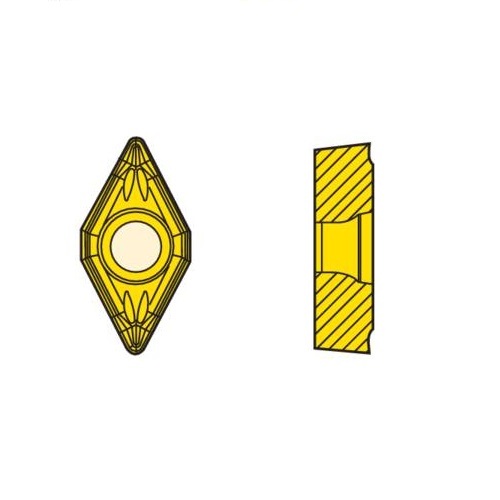

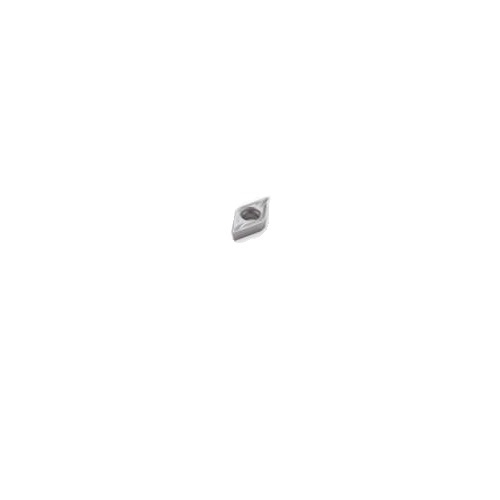

Turning Insert D Shape Code T Insert Type - MF2 7° Grade TP1020

TP1020 Insert Grade

Cermet.
High wear resistance cermet grade for the highest surface finish with predictability, first of all, in steels and stainless steels.

MF2 Chipbreaker Programme

A versatile finishing to semi-finishing chipbreaker with light-cutting action for positive inserts.
Suitable for a wide range of cuts in steel and stainless steel finishing applications including boring.
Indicative machining range: f = 0,08–0,50 mm/rev, ap = 0,15–3,00 mm.

About Seco Turning Insert

Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
to boost the productivity and tool life in your turning applications.
Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

AIMS SKU A0116105

Brand Seco

Model Number 02754840

Barcode Number 54840027001007

Designation DCMT070202-MF2,TP1020

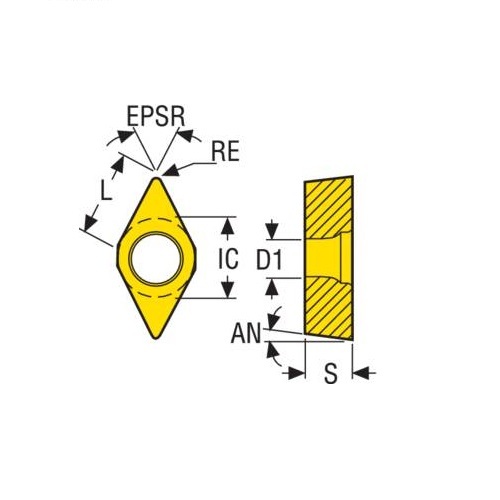

Theoretical Cutting Edge Length (L) mm 7.8

Clearance Angle Major (an) Deg 7.0 deg

Insert Shape Code (SC) D

Grade Grade TP1020

Chipbreaker Programme MF2

Insert Included Angle (epsr) Deg 55.0 deg

Inscribed Circle Diameter (IC) mm 6.35

Corner Radius (RE) mm 0.2

Tolerance ñ 0.05/ñ 0.05mm

Fixing Hole Diameter (d1) Mm 2.9

Fixing Hole Diameter D1 Mm 2.9

Insert Thickness (S) mm 2.38
