Description

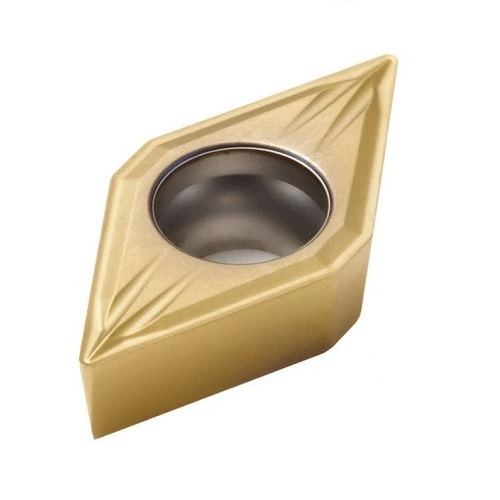

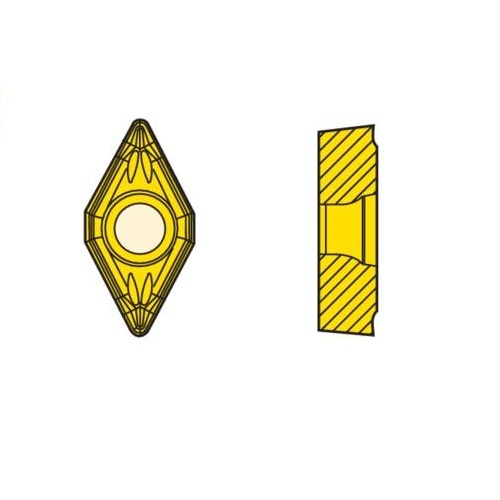

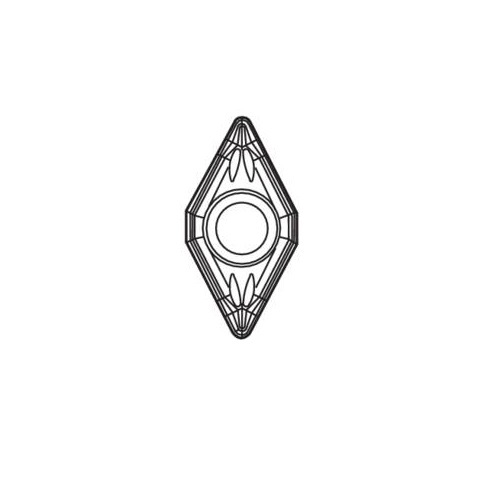

Seco Turning Insert D Shape Code 3.97 x 0.4 x 9.53mm T Insert Type - MF2 7° Grade CP500 ± 0.13/± 0.025mm DCGT11T304-MF2 Pack of 10

Turning Insert D Shape Code T Insert Type - MF2 7° Grade CP500 - ± 0.13/± 0.025mm Tolerance

  • D shape code
  • T Insert Type.
  • 7° insert side clearance angles.
  • ± 0.13/± 0.025mm tolerance.

CP500 Insert Grade

  • PVD coated.
  • Tough micrograin grade intended for finishing to medium-roughing of stainless steel but with wide applicability for example in steels and aluminium alloys.
  • Especially suitable in intermittent cuts.
  • (Ti, Al)N + TiN

MF2 Chipbreaker Programme

  • A versatile finishing to semi-finishing chipbreaker with light-cutting action for positive inserts.
  • Suitable for a wide range of cuts in steel and stainless steel finishing applications including boring.
  • Indicative machining range: f = 0,08–0,50 mm/rev, ap = 0,15–3,00 mm.

About Seco Turning Insert

  • Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
  • Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
  • to boost the productivity and tool life in your turning applications.
  • Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

  • AIMS SKU A0116546
  • Brand Seco
  • Model Number 2755036
  • Barcode Number 55036027001003
  • Type Turning Insert
  • Designation DCGT11T304-MF2
  • Tolerance ñ 0.13/ñ 0.025mm
  • Fixing Hole Diameter (d1) Mm 4.5
  • Fixing Hole Diameter D1 Mm 4.5
  • Insert Shape Code (SC) D
  • Grade Grade CP500
  • Theoretical Cutting Edge Length (L) mm 11.6
  • Clearance Angle Major (an) Deg 7.0 deg
  • Insert Style DCGT
  • Corner Radius (RE) mm 0.4
  • Qty in Pack 10
  • Chipbreaker Programme MF2
  • Insert Included Angle (epsr) Deg 55.0 deg
  • Inscribed Circle Diameter (IC) mm 9.53
  • Insert Grade Grade CP500
  • Insert Thickness (S) mm 3.97
SKU: A0116546

Seco Turning Insert D Shape Code 3.97 x 0.4 x 9.53mm T Insert Type - MF2 7° Grade CP500 ± 0.13/± 0.025mm DCGT11T304-MF2 Pack of 10

Turning Insert DCGT Insert Style - MF2 7° Grade CP500
