Description

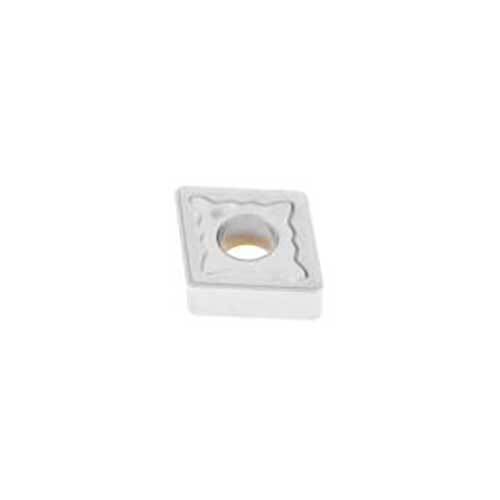

Turning Insert CNMG Insert Style - MR7 Grade TP25

  • C shape code
  • G Insert Type.

TP25 Insert Grade

  • The universal grade for highly versatile performance over a wide range of applications in steels, stainless steels, and cast irons.
  • Trustworthy alternative at limited cutting speeds or high surface finishes requirements.
  • Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

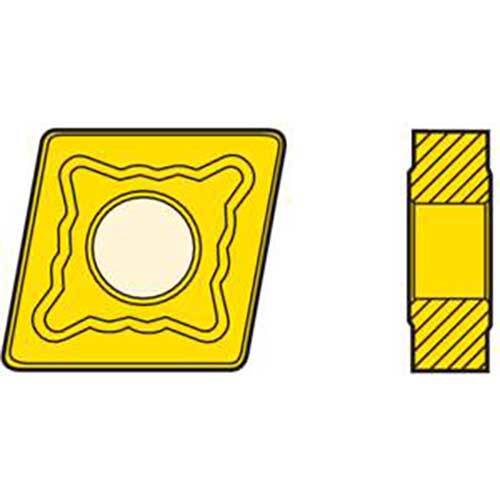

MR7 Chipbreaker Programme

  • The strongest chipbreaker for double-sided inserts.
  • The MR7 is suitable for high feed rates and depths of cut that normally require a single-sided insert.
  • The chipbreaker has a wide negative T land, which gives high edge strength.
  • Indicative machining range: f = 0,35–0,90 mm/rev, ap = 1,5–7,0 mm.

About Seco Turning Insert

  • Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
  • Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
  • to boost the productivity and tool life in your turning applications.
  • Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

  • AIMS SKU A0158539
  • Brand Seco
  • Model Number 03274152
  • Net Weight (kg) 0.028
  • Type Turning Insert

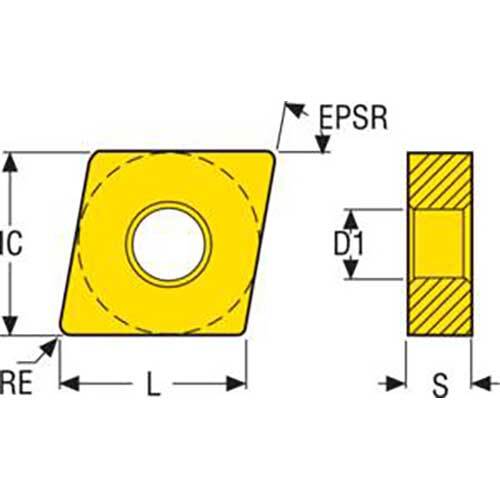

  • Fixing Hole Diameter (d1) Mm 7.9
  • Corner Radius (RE) mm 1.2
  • Insert Hand (IH) Neutral
  • Grade Type Carbide CVD:Designation:CNMG190612-MR7 TP25
  • Chip Breaker Manufacturers Designation (CBMD) MR7
  • Clearance Angle Major (an) Deg 0.0 deg
  • Insert Thickness (S) mm 6.35
  • Insert Included Angle (EPSR) 80.0 deg
  • Grade TP25
  • Theoretical Cutting Edge Length (L) mm 19.34
  • Inscribed Circle Diameter (IC) mm 19.05
  • Cutting Edge Effective Length (LE) mm 18.12
  • Cutting Edge Count (CEDC) 4
  • Insert Seat Size Code (SSC) mm 19
SKU: A0158539

Seco Turning Insert C Shape Code 6.35 x 1.2 x 19.05mm G Insert Type - MR7 Grade TP25 ± 0.13/± 0.1mm CNMG190612-MR7 Pack of 10

Turning Insert CNMG Insert Style - MR7 Grade TP25

$479.52
