Description

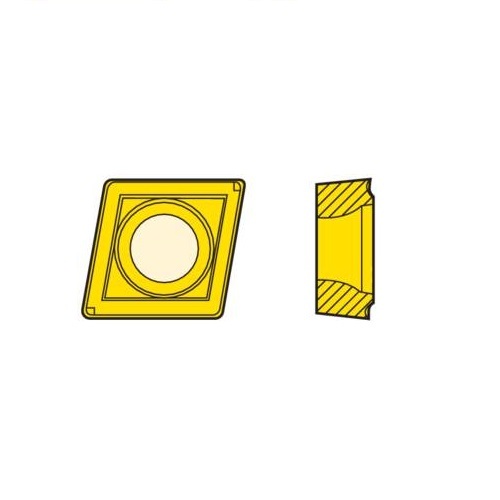

Turning Insert C Shape Code T Insert Type - M3 7° Grade TP3501 - ± 0.05/± 0.05mm Tolerance

  • C shape code
  • T Insert Type.
  • 7° insert side clearance angles.
  • ± 0.05/± 0.05mm tolerance.

TP3501 Insert Grade

  • CVD Coated.
  • Duratomic® grade.
  • Enhanced edge toughness still with the characteristic high wear resistance intended for versatile performance in turning applications in steels as well as stainless steel especially including interrupted cuts.
  • Ti(C,N) + Al2O3 + Used Edge Detection (Chrome).

M3 Chipbreaker Programme

  • A reliable semi-finishing to medium roughing chipbreaker ensuring safe chip flow.
  • Suitable for medium cuts in steel and stainless steel application including boring.
  • Indicative machining range: f = 0,12–0,60 mm/rev, ap = 0,2–4,0 mm.

About Seco Turning Insert

  • Anything is possible when it comes to our broad selection of general turning grades and chip breakers.
  • Supporting inserts of different shapes, sizes, and thicknesses, we developed each of these solutions with the same goal in mind.
  • to boost the productivity and tool life in your turning applications.
  • Covering all material groups, this comprehensive range allows you to achieve your goals in terms of material removal rates, tool life, and surface finish.

Specifications

  • AIMS SKU A0115862
  • Brand Seco
  • Model Number 02960863
  • Barcode Number 60863029001005
  • Designation CCMT09T308-M3,TP2501
  • Grade Grade TP2501

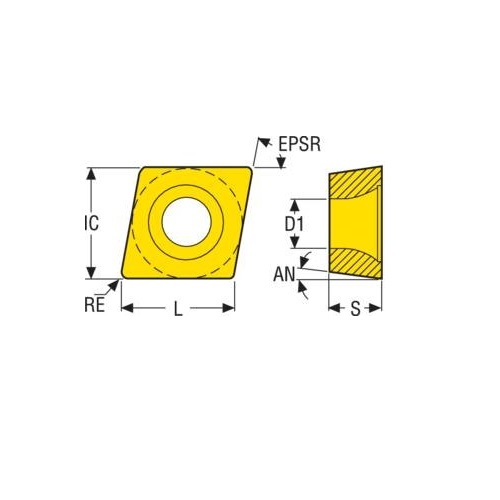

  • Insert Thickness (S) mm 3.97
  • Corner Radius (RE) mm 0.8

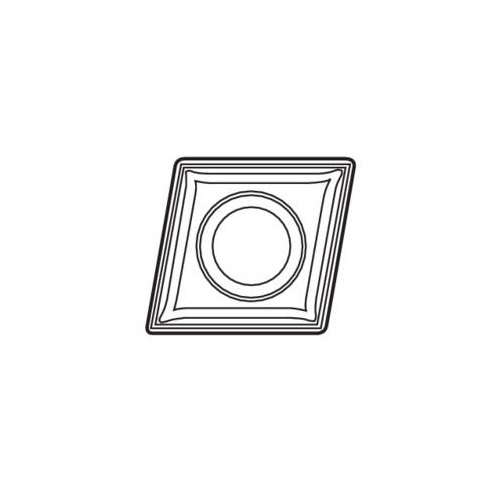

  • Insert Shape Code (SC) C
  • Fixing Hole Diameter D1 Mm 4.5
  • Inscribed Circle Diameter (IC) mm 9.53
  • Clearance Angle Major (an) Deg 7.0 deg
  • Fixing Hole Diameter (d1) Mm 4.5
  • Insert Included Angle (epsr) Deg 80.0 deg
  • Theoretical Cutting Edge Length (L) mm 9.7
  • Tolerance ñ 0.13/ñ 0.05mm
  • Chipbreaker Programme M3
  • Type Turning Insert
  • Insert Grade Grade TP3501
  • Insert Style CCMT
SKU: A0115862

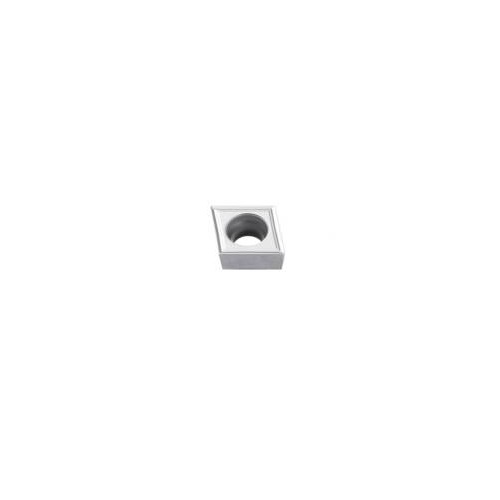

Seco Turning Insert C Shape Code 3.97 x 0.8 x 9.53mm T Insert Type - M3 7° Grade TP2501 ± 0.13/± 0.05mm CCMT09T308-M3 Pack of 10

Turning Insert CCMT Insert Style - M3 7° CVD Coated

$181.14
