Description

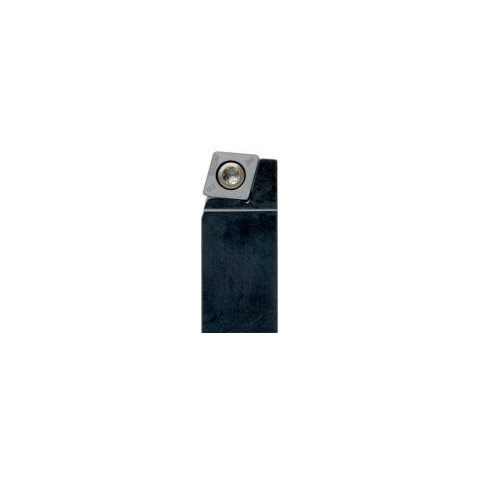

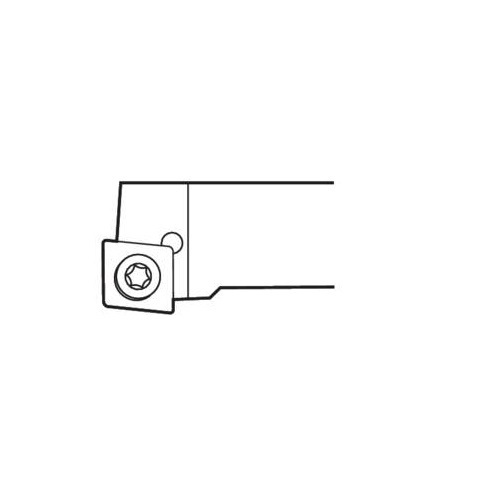

Seco Turning External Toolholder Screw Lock 89 x 14 x 3mm Right 75° C Insert Shape SCRCR-8-3

Turning External Toolholder (Screw Lock - R Type - C Insert Shape)

About Shank Toolholders and Boring Bars:

Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

Specifications

AIMS SKU A0115594

Brand Seco

Model Number 00013316

Barcode Number 13316000000105

Net Weight (kg) 0.128

Type Turning Toolholder

Designation SCRCR-8-3

Insert Clamping System (ICS) Screw Lock

Connection Text Workpiece Side (ctws) CC09T3

Direction Of Cutting (hand) Right

Rake Angle Orthogonal (gamo) 0.0 deg

Insert Shape Code (SC) C

Cutting Edge Length (mm) 3

Tool Type R Type

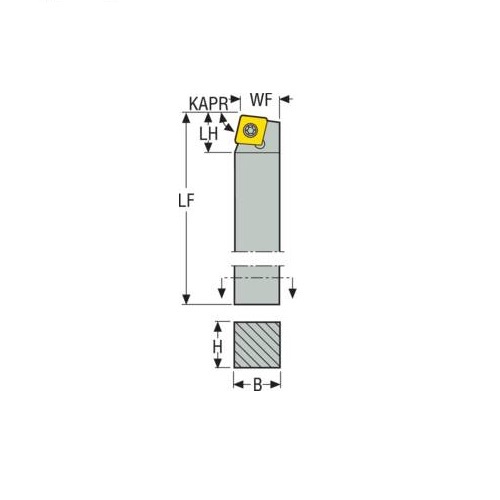

Height Of Tool Holder Shank (H) mm 12.7

Shank Width (b) mm 12.7

Connection Text Machine Side (CTMS) 12.7

Shank Type Square shank

Insert Size Inscribed Circle Diameter (mm) 3

Inclination Angle (LAMS) 0.0 deg

Functional Length (LF) 89mm

Tool Cutting Edge Angle (KAPR) 75.0 deg

Version (internal/external/both) External

Rake Angle Axial (gamp) 0.0 deg

Functional Width (WF) mm 14

Tool Cutting Edge Angle Code (KAPRC) R
