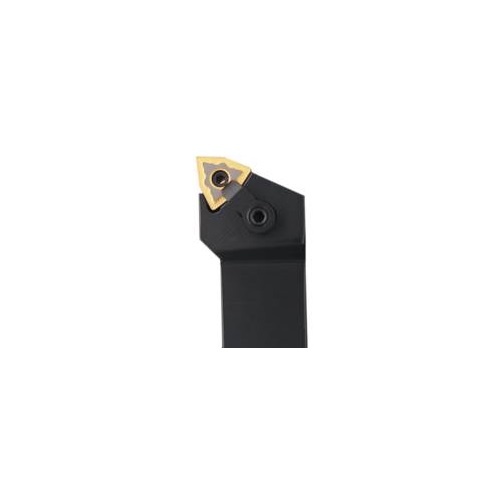

Seco Turning External Toolholder Multiple Lock 101.6 x 22.2 x 3mm Right 95° W Insert Shape MWLNR-10-3A

Multiple Lock - L Type - W Insert Shape - A Surface


Available
$127.07

Browse other products under:
Indexable Turning Tool Holders
Browse other products by:
SECO

Seco Turning External Toolholder Multiple Lock 101.6 x 22.2 x 3mm Right 95° W Insert Shape MWLNR-10-3A

Turning External Toolholder (Multiple Lock - L Type - W Insert Shape - A Surface)

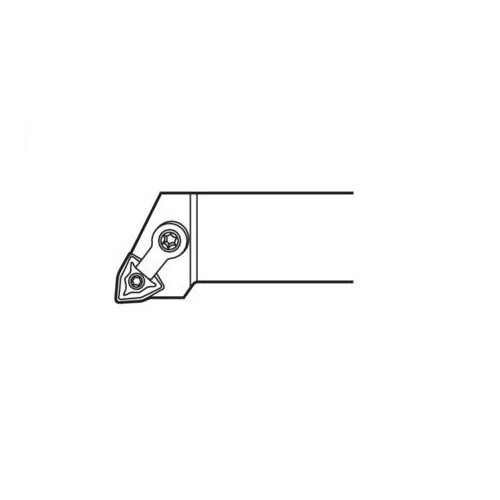

  • Multiple locks - multiple lock assembly, (Pin and clamp lock) / (M-Type tool holders).
  • W insert shape.
  • L tool type, offset shank with –5° end or side cutting edge.
  • A surface, qualified back and end. 4” long.

About Shank Toolholders and Boring Bars:

  • Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
  • Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
  • This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
  • The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

AIMS SKU

A0115182

Brand

Seco

Model #

75056399

Barcode #

56399750000101

Net Weight (kg)

0.251

Product Type

Turning Toolholder

Designation

MWLNR-10-3A

Insert Shape Code (SC)

0

Ramping Angle Maximum (RPMX)

7.8 deg

Inclination Angle (LAMS)

-6.0 deg

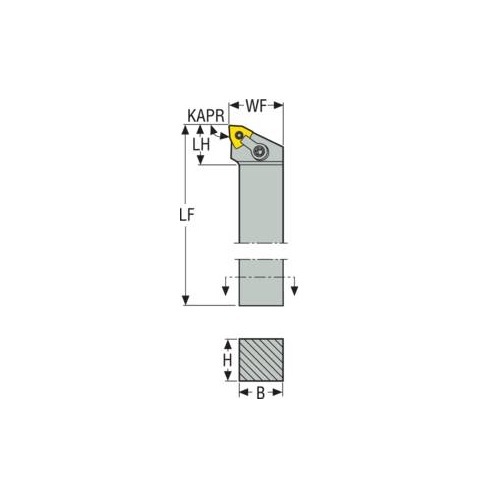

Functional Length (LF)

101.6mm

Height Of Tool Holder Shank (H) mm

15.8

Cutting Depth Maximum (cdx) mm

4.9

Version (internal/external/both)

External

Rake Angle Axial (gamp)

-5.4 deg

Shank Type

Square shank

Cutting Diameter Internal Minimum 3 (mm)

125

Functional Width (WF) mm

22.2

Tool Cutting Edge Angle Code (KAPRC)

L

Insert Clamping System (ICS)

Multiple Lock

Tool Cutting Edge Angle (KAPR)

95.0 deg

Connection Text Workpiece Side (ctws)

WN0604

Direction Of Cutting (hand)

Right

Rake Angle Orthogonal (gamo)

-6.0 deg

Insert Size Inscribed Circle Diameter (mm)

3

Cutting Edge Length (mm)

3

Tool Type

L Type

Shank Length (LS) mm

73.6

Functional Height (HF) mm

15.9

Shank Width (b) Mm

15.8

Connection Text Machine Side (CTMS)

15.88

Rake Angle Radial (gamf)

-6.0 deg
