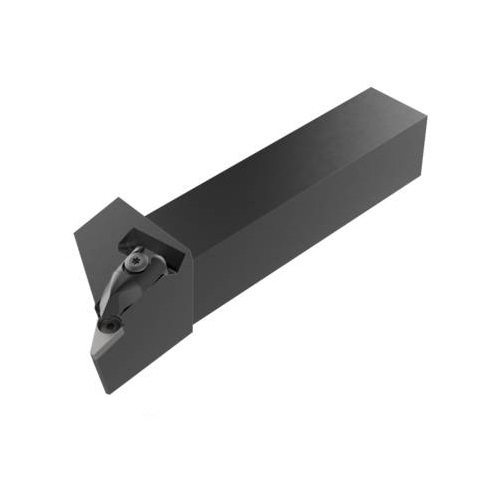

Seco Turning External Toolholder Top Clamp 100 x 42 x 13mm Right 93° V Insert Shape DVJNR1616H13

Top Clamp - J Type - V Insert Shape - 13mm Cutting Edge


Available
$157.61
This product is available in other sizes/variants
Select another variant of Seco Top Clamp Right - J Type - V Insert Shape - 13mm Cutting Edge Length
Designation
Shank Width (b) Mm
Direction Of Cutting (hand)
Connection Text Workpiece Side (ctws)
Head Length (LH)
Functional Length (LF)
Functional Width (WF) mm
Cutting Edge Length (mm)

Browse other products under:
Indexable Turning Tool Holders
Browse other products by:
SECO

Seco Turning External Toolholder Top Clamp Right 93° V Insert Shape DVJNR1616H13

Turning External Toolholder (Top Clamp - J Type - V Insert Shape - 13mm Cutting Edge Length)

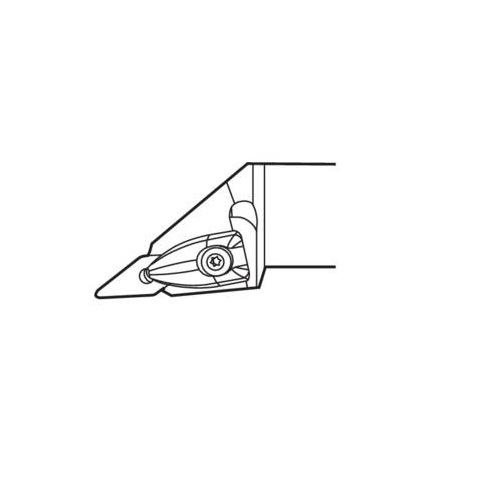

  • Top clamp using the center hole.
  • V insert shape.
  • J tool type, offset shank with –3° side cutting edge angle.
  • 16mm cutting edge length.

About Shank Toolholders and Boring Bars:

  • Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
  • Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
  • This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
  • The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

AIMS SKU

A0115045

Brand

Seco

Model #

2588228

Barcode #

88228025000104

Net Weight (kg)

0.24

Designation

DVJNR1616H13

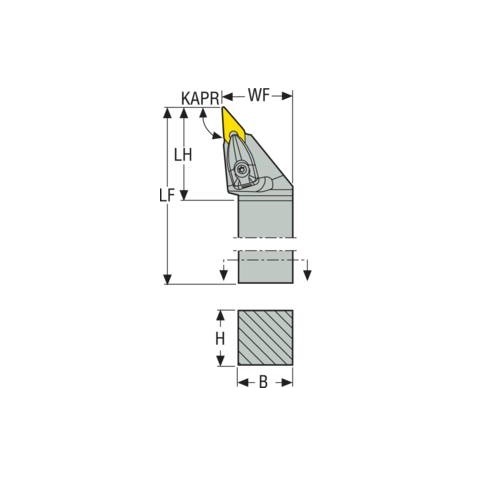

Head Length (LH)

42mm

Inclination Angle (LAMS)

-13.5 deg

Functional Length (LF)

100mm

Connection Text Workpiece Side (ctws)

VN1304

Connection Text Machine Side (CTMS)

1616

Functional Width (WF) mm

20

Tool Cutting Edge Angle Code (KAPRC)

J

Height Of Tool Holder Shank (H) mm

16

Shank Width (b) Mm

16

Rake Angle Orthogonal (gamo)

-4.5 deg

Insert Shape Code (SC)

V

Cutting Edge Length (mm)

13

Tool Type

J Type

Tool Cutting Edge Angle (KAPR)

93.0 deg

Direction Of Cutting (hand)

Right

Product Type

Turning Toolholder

Version (internal/external/both)

External

Shank Type

Square shank

Insert Clamping System (ICS)

Top Clamp
