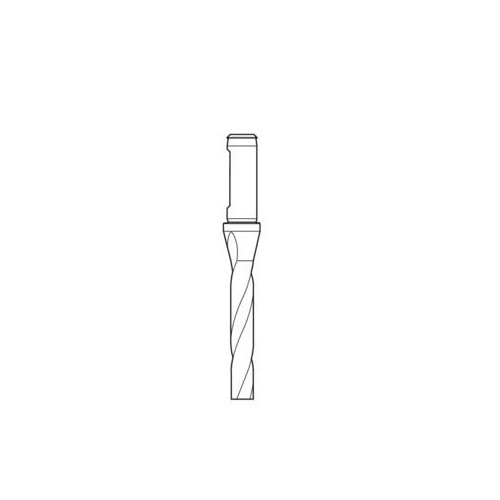

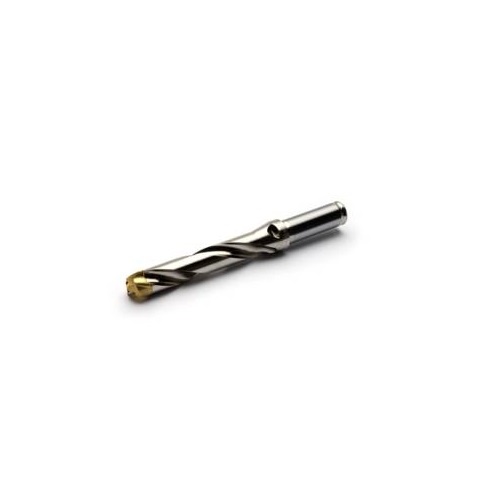

Seco SD105 Crownloc™ Exchangeable Tip Drill 9.5 x 15.88 x 120.1mm SD105-10.00/10.49-50-0625R7



SD105 Crownloc™ Exchangeable Tip Drill

  • Internal coolant.
  • ISO9766 fits holders: Weldon 1835B, ISO 5414, DIN 60880.
  • Crownloc plus provides you with high productivity, excellent chip evacuation, flexibility and easy handling.
  • These lead to increased output, higher process security, reduction of tool inventory and elimination of regrinding costs.

About Crownloc™ Plus:

  • Crownloc™ Plus is a new generation of Seco drills with exchangeable crowns.
  • Featuring a new geometry, coating and locking interface, Crownloc Plus improves chip evacuation and wear resistance in a variety of materials.
  • Crownloc Plus features a strong drill body design, high-strength locking interface with deep and wide flutes and polished body.
  • The drill’s crowns have a new optimized geometry for improved chip formation and enhanced entering capability.
  • The combination of a TiAlN coating, low-friction TiN coating on the exchangeable head and 10% micrograin substrate serve to increase toughness and wear resistance, while reducing the potential for edge build up.
  • The first choice for general applications, the P geometry is a strong and versatile solution that provides reliable operation in applications across a range of different workpiece materials.
  • Utilizing a free cutting drill point to minimize heat generation, the M geometry provides excellent performance in high temperature alloys, titanium, titanium alloys and stainless steel.

Specifications

  • AIMS SKU A0113925
  • Brand Seco
  • Model Number 2466034
  • Barcode Number 66034024000100
  • Net Weight (kg) 0.175
  • Designation SD105-10.00/10.49-50-0625R7
  • Overall Length (OL) mm 120.1
  • Flange Diameter (DF) mm 20
  • Body Diameter (BD) X Shank Diameter (DMM) mm 9.5 x 15.88
  • Shank Length (LS) mm 48
  • Cutting Diameter Maximum (dcx) 10.5
  • Peripheral Effective Cutting Edge Count (ZEFP) 2
  • Usable Length Maximum (LUX) mm 57.3
  • Functional Length Secondary (LFS) mm 72.1
  • Cutting Diameter Minimum (DCN) mm 10
  • Usable Length (LU) mm 50
  • Type SD105 Exchangeable Tip Drill
  • Shank Type ISO 9766
SKU: A0113925

Seco SD105 Crownloc™ Exchangeable Tip Drill 9.5 x 15.88 x 120.1mm SD105-10.00/10.49-50-0625R7

SD105 Crownloc™ Exchangeable Tip Drill

$431.86
