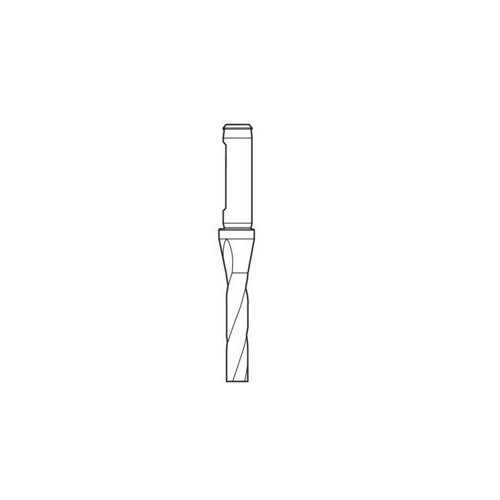

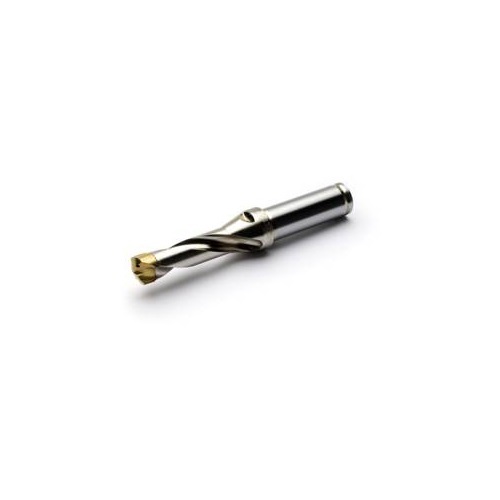

Seco SD103 Crownloc™ Exchangeable Tip Drill 9 x 15.88 x 108mm SD103-09.50/09.99-30-0625R7
SD103 Crownloc™ Exchangeable Tip Drill
- Internal coolant.
- ISO9766 fits holders: Weldon 1835B, ISO 5414, DIN 60880.
- Crownloc plus provides you with high productivity, excellent chip evacuation, flexibility and easy handling.
- These lead to increased output, higher process security, reduction of tool inventory and elimination of regrinding costs.
About Crownloc™ Plus:
- Crownloc™ Plus is a new generation of Seco drills with exchangeable crowns.
- Featuring a new geometry, coating and locking interface, Crownloc Plus improves chip evacuation and wear resistance in a variety of materials.
- Crownloc Plus features a strong drill body design, high-strength locking interface with deep and wide flutes and polished body.
- The drill’s crowns have a new optimized geometry for improved chip formation and enhanced entering capability.
- The combination of a TiAlN coating, low-friction TiN coating on the exchangeable head and 10% micrograin substrate serve to increase toughness and wear resistance, while reducing the potential for edge build up.
- The first choice for general applications, the P geometry is a strong and versatile solution that provides reliable operation in applications across a range of different workpiece materials.
- Utilizing a free cutting drill point to minimize heat generation, the M geometry provides excellent performance in high temperature alloys, titanium, titanium alloys and stainless steel.
- AIMS SKU A0113892
- Brand Seco
- Model Number 2673828
- Barcode Number 73828026000103
- Net Weight (kg) 0.169
- Designation SD103-09.50/09.99-30-0625R7

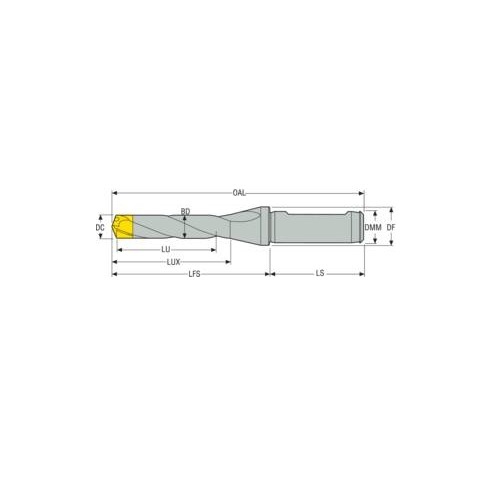

- Overall Length (OL) mm 108
- Flange Diameter (DF) mm 20
- Body Diameter (BD) X Shank Diameter (DMM) mm 9 x 15.88
- Shank Length (LS) mm 50
- Cutting Diameter Maximum (dcx) 10
- Peripheral Effective Cutting Edge Count (ZEFP) 2
- Usable Length Maximum (LUX) mm 46.6
- Functional Length Secondary (LFS) mm 59
- Cutting Diameter Minimum (DCN) mm 9.5
- Usable Length (LU) mm 30
- Type SD103 Exchangeable Tip Drill
- Shank Type ISO 9766
