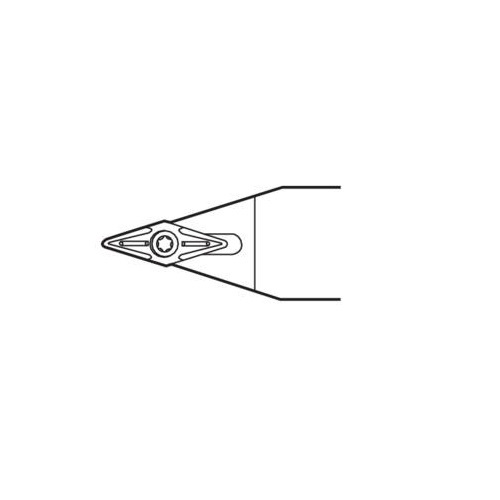

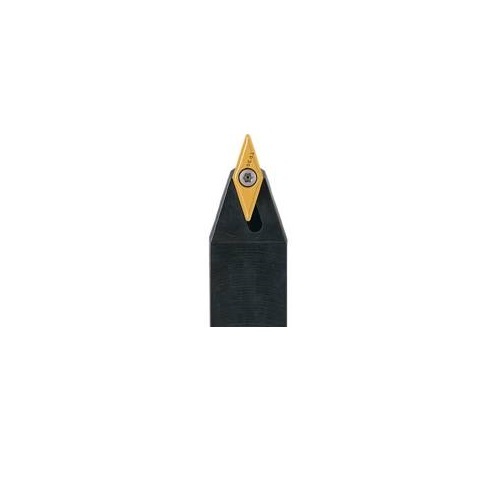

Seco Turning External Toolholder Screw Lock Neutral 72.5° V Insert Shape SVVBN1010M11

Turning External Toolholder (Screw Lock - V Type - V Insert Shape)

  • Screw lock.
  • V insert shape.
  • V tool type, straight shank with 17.5° side cutting edge angle.

About Shank Toolholders and Boring Bars:

  • Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
  • Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
  • This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
  • The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

Specifications

  • AIMS SKU A0115570
  • Brand Seco
  • Model Number 2431026
  • Barcode Number 31026024000109
  • Net Weight (kg) 0.107
  • Designation SVVBN1010M11
  • Insert Shape Code (SC) V

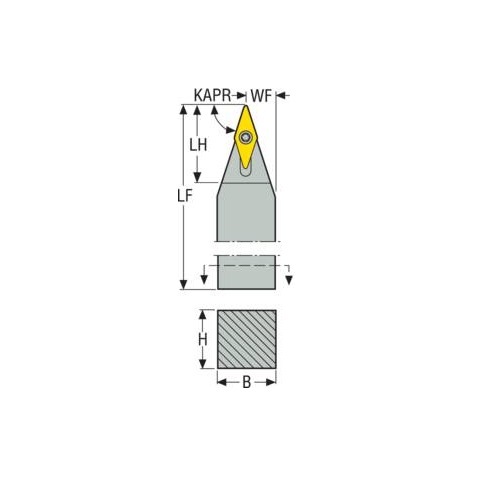

  • Functional Width (WF) mm 5.3
  • Tool Cutting Edge Angle Code (KAPRC) V
  • Height Of Tool Holder Shank (H) mm 10
  • Shank Width (b) mm 10
  • Rake Angle Axial (gamp) 0.0 deg
  • Head Length (LH) mm
  • Cutting Edge Length (mm) 11
  • Tool Type V Type
  • Tool Cutting Edge Angle (KAPR) 72.5 deg
  • Direction Of Cutting (hand) Neutral
  • Rake Angle Orthogonal (gamo) 0.0 deg
  • Insert Size Inscribed Circle Diameter (mm) 11
  • Inclination Angle (LAMS) 0.0 deg
  • Functional Length (LF) 150mm
  • Connection Text Workpiece Side (ctws) VB1102
  • Connection Text Machine Side (CTMS) 1010
  • Type Turning Toolholder
  • Version (internal/external/both) External
  • Shank Type Square shank
  • Insert Clamping System (ICS) Screw Lock
SKU: A0115570

Seco Turning External Toolholder Screw Lock 150 x 5.3 x 11mm Neutral 72.5° V Insert Shape SVVBN1010M11

Screw Lock - V Type - V Insert Shape

$154.00
