Description

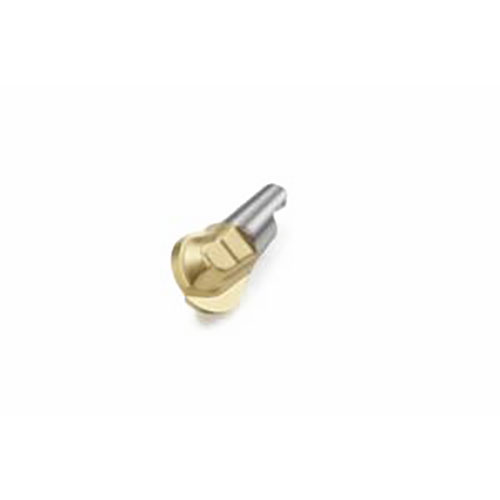

Minimaster™ Ballnose Insert MM06 F30M M-Edge Geometry (Precision for Semi-Finishing)

  • F30M grade.
  • MM06 insert taper size.
  • Ballnose inserts, precision insert for semi-finishing in all material.
  • 2-flute minimaster insert.
  • M-Edge Geometry, medium operation.

About Seco Minimaster™ Ballnose

  • Range: 6-20 mm (.25 - .75 inch).
  • 2-flute or 3-flute versions, 4 grades.
  • Recommended slotting depth of cut 0.3 x Dc.
  • 3 flutes for general purposes.
  • 2 flutes for unstable conditions.

Specifications

  • AIMS SKU A0122084
  • Brand Seco
  • Model Number 00083492
  • Barcode Number 83492000000204
  • Designation MM10-12012-B120P-M05,F30M

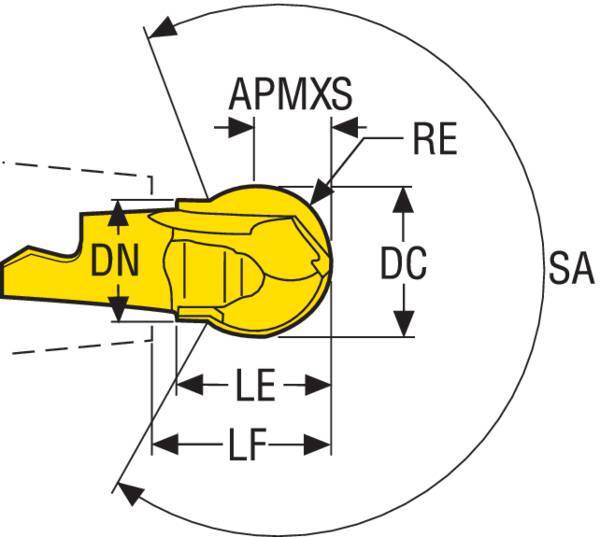

  • Helical Interpolation Hole Diameter Max (cmax) Mm 22.5
  • Rake Angle Axial (gamp) Deg 0.0 deg
  • Helical Interpolation Hole Diameter Min (cmin) Mm 13
  • Cutting Edge Effective Length (LE) mm 12
  • Grade Type Carbide PVD
  • Zeripheral Effective Cutting Edge Count (ZEFP) 2
  • Sphere Angle (SA) deg 247.0 deg
  • Rake Angle Radial (gamf) Deg 0.0 deg
  • Depth Of Cut Max In Feed Direction Side (APMXS) mm 6
  • Cutting Diameter (DC) mm 12
  • Net Weight Kg 0.014
  • Neck Diameter (DN) mm 10
  • Ramping Angle Max (rmpx) Deg 15.0 deg
  • Coolant Supply Property (CSP) 0
  • Corner Radius (RE) mm 6
  • Functional Length (LF) mm 13.2
  • Torque (TQ) Nm 12
  • Type Minimaster™ Ballnose Insert
  • Insert Taper Size MM06
  • Grade F30M
SKU: A0122084

Seco Minimaster™ Ballnose Insert MM10 6 x 12 x 13.2mm F30M Grade (M-Edge Geometry) MM10-12012-B120P-M05,F30M Pack of 2

Minimaster™ Ballnose Insert MM10 F30M M-Edge Geometry

$253.58
