Specifications

AIMS SKU A0122827
Brand Seco
Model Number 02505823
Barcode Number 5823025001006

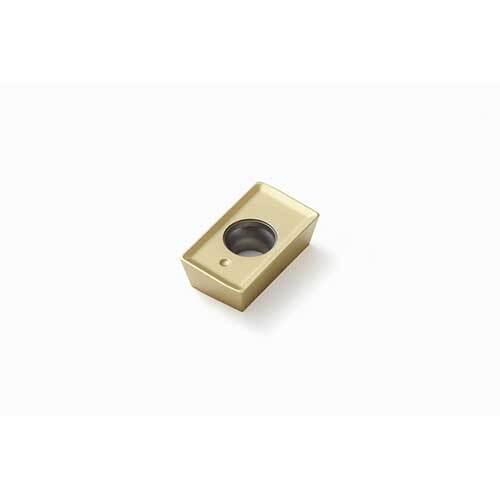

Type Milling Insert
Designation APKT1604PDTR-M14,F40M
Wiper Edge Length (bs) Mm 2.1
Insert Seat Size Code (SSC) APKT16..
Cutting Edge Effective Length (LE) mm 15.8
Grade Type Carbide PVD
Theoretical Cutting Edge Length (L) mm 16.45
Corner Radius (RE) mm 0.3
Insert Hand (IH) Right
Weight (kg) 0.007
Insert Width (w1) Mm 9.5
Clearance Angle Major (an) Deg 11.0 deg
Insert Thickness (S) mm 4.76
Cutting Edge Count (CEDC) 2
Grade F40M
Insert Rake Angle (GAN) deg 22.0 deg
• Group Code APKT1604PDTR-M14,F40M
• Barcode 5823025001006
• Type Milling Insert
• Grade Type Carbide PVD
• Grade F40M
