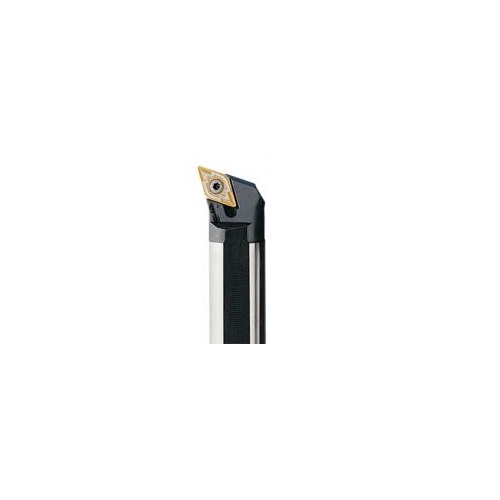

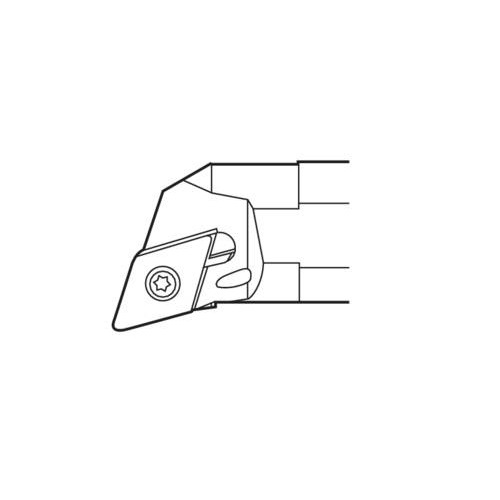

Seco Internal Turning Toolholder Steel Screw Lock 254 x 19.05 x 24.89mm Right 107.5° D Insert Shape A12-SDQNR-3

Turning Internal Toolholder (Steel - Screw Lock - Q Type - D Insert Shape)

  • Steel with coolant passage.
  • D insert shape.
  • 0° ISCA (Insert Side Clearance Angles).
  • Screw lock.
  • Q tool type, offset shank with negative 17.5° (107.5°) cutting edge angle.

About Shank Toolholders and Boring Bars:

  • Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
  • Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
  • This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
  • The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

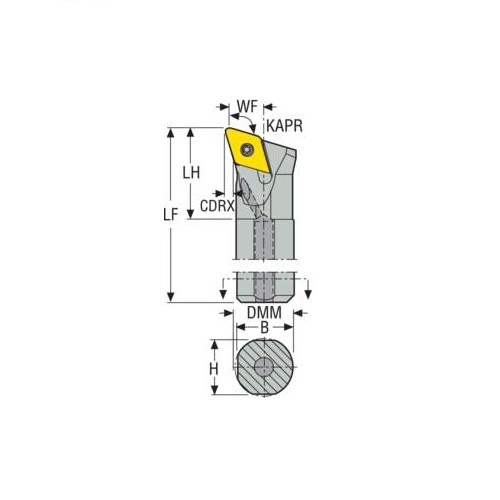

Specifications

  • AIMS SKU A0114710
  • Brand Seco
  • Model Number 15216
  • Barcode Number 15216000000106
  • Net Weight (kg) 0.6
  • Type Turning Toolholder
  • Designation A12-SDQNR-3
  • Insert Size Inscribed Circle Diameter (mm) 3
  • Functional Width (WF) mm 14.3
  • Cutting Diameter Internal Minimum (DCINN) 24.89
  • Insert Clamping System (ICS) Screw Lock
  • Head Length (LH) mm 46.7
  • Shank Width (b) mm 18.5
  • Connection Text Machine Side (CTMS) 19.05
  • Shank Type Cylindrical
  • Cutting Depth Radial Max (CDRX) mm 2.5
  • Inclination Angle (LAMS) -14.0 deg
  • Functional Length (LF) 254
  • Tool Holder Type Steel
  • Tool Cutting Edge Angle (KAPR) 107.5 deg
  • Version (internal/external/both) Internal
  • Rake Angle Axial (gamp) -14.0 deg
  • Cutting Depth Max (CDX) mm 2.5
  • Tool Cutting Edge Angle Code (KAPRC) Q
  • Shank Diameter (DMM) 19.05
  • Height Of Tool Holder Shank (H) mm 18
  • Connection Text Workpiece Side (ctws) DN1104
  • Direction Of Cutting (hand) Right
  • Rake Angle Orthogonal (gamo) -6.0 deg
SKU: A0114710

Seco Internal Turning Toolholder Steel Screw Lock 254 x 19.05 x 24.89mm Right 107.5° D Insert Shape A12-SDQNR-3

Turning Internal Toolholder (Steel - Screw Lock - Q Type

$199.76
