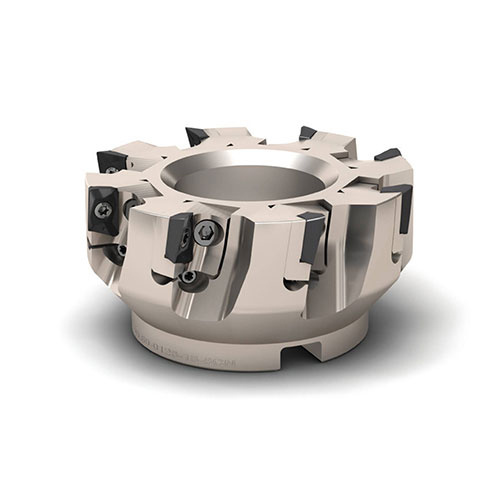

Seco 63 x 160mm Turbo 12 Square Shoulder Milling Cutter 10 Teeth - (Arbor) R220.69-8160-12-10CN

Description

Turbo 12 Milling Cutter (Arbor) - With Adjustable Cassettes

For Arbor.
Arbor shank type.
General purpose, larger depth.
12 mm insert size.
Maintains high tolerances and optimum precision.
Extremely flexible and reliable.
Coated & hardened cutter body.

About Turbo Square Shoulder Milling Cutter

Aggressively optimize your cutting properties with Seco’s Turbo family of cutters that reduce heat generation and cutting forces.
These cutters are available in a variety of configurations, all with copy milled pockets for insert stability and two pitch configurations to tackle almost every material.
Maximize output in a wide range of applications including; roughing, semi-finishing, finishing.
Methods include all facing, slotting, profiling contouring, helical interpolation, ramping, and plunging applications.
Cutter range 20-250 mm (0.75-8 inch).
Max depth of cut 11 mm (0.433 inch).
Recommended slotting depth of cut 6 mm (0.236 inch).
Insert corner radii range 0.4-6.3 mm (0.016-0.248 inch).

Specifications

AIMS SKU A0118864

Brand Seco

Model Number 02706940

Barcode Number 6940027000109

Designation R220.69-8160-12-10CN

Contact Surface Diameter Machine Side (DCSFMS) mm 90

Functional Length (LF) mm 63

Cutting Diameter (DC) mm 160

Peripheral Effective Cutting Edge Count (ZEFP) 10

Thread Diameter Size (TDZ) 0

Connection Bore Diameter (DCB) mm 40

Depth Of Cut Max-feed Direction End (apmxe) Mm 7

Depth Of Cut Max-feed Direction Side (apmxs) Mm 11

Helical Interpolation Hole Diameter Max (cmax )mm 318

Helical Interpolation Hole Diameter Min (cmin) Mm 307.5

Cutting Edge Angle-feed Direction Side (kaprs) Deg 90.0 deg

Ramping Angle Max (rmpx) Deg 0.3 deg

Type Turbo 12 Milling Cutter
Shank Type Arbor
