***Special order and has a lead time of approximately 3 weeks from receipt of order. Contact AIMS for further assistance.***

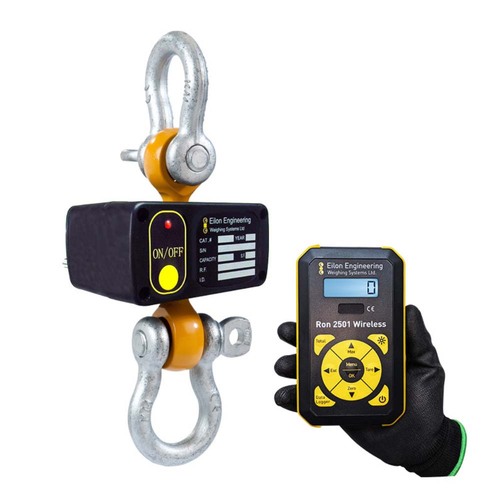

***Shackles are not included. Image is for illustration purposes only.***

Ron 2501 Shackle Type Wireless Dynamometer (Single System)

• Eilon Engineering specializes in Ron Crane Scales„¢ dynamometers and load cells €“ all innovative, state-of-the-art products incorporating the latest technologies. Ron dynamometers are ideal for safe weighing during lifting, tension or drag force measurement. They are portable, durable and feature extremely long battery life.
• The Ron 2501 is an exceptionally small, light and advanced wireless dynamometer with long range and built in transmission verification mechanism. Special perpendicular design neutralizes the bending of the load cell, increasing accuracy and safety.
• Available in 0.5t to 300t.

Advantages

• 5 year warranty
• Portable: Lightweight and small.
• Highly Accurate: ± 0.1% of full range - important for early overload detection.
• Long transmission Range: Up to 150m/yds. Up to 3.2 Km / 2 Miles upon request (outdoor, line of sight)
• Excellent battery life: Up to 2000 Hours (2x AA batteries). Optional 4000h.
• Quality Materials: Exclusive use of high strength aerospace quality steel for load cell bodies.
• Fatigue rated: All Eilon Engineering load cells are Fatigue Rated according to ASME BTH-1 and IEC 61508. Fatigue Rated means an unlimited number of load cycles (Provided capacity is not exceeded).
• Robust: Heavy duty designs with shock absorbing mechanisms.Unique: Shackle holes offset 90 degrees reduce external momentsfor greater safety and accuracy.
• Minimal Headroom loss: Smallest on the market - important for indoor applications.
• Multi-point: Up to 200 different load cells controlled by a single receiver and all measurements are presented on one screen as a real time load map.
• Advanced options: Auto/Manual Data Logger, RS232, Additional Displays.
• Short delivery time: In most cases 48-72 hours.
• More than 45 years in the market with repeat customers such as NASA, Boeing, Cirque du Soleil, Disney, GE, Lockheed Martin, other Fortune 500 companies, as well as numerous small businesses.

Safety factor:
5:1
Accuracy:
0.1% of full range.
Transmission Range:
Up to 150m/yds. Up to 3.2 Km / 2 Miles upon request (outdoor, line of sight).
Calibration:
User calibration. Initial factory calibration, fully traceable (certified).
Load Cell Material:
high-strength, aerospace quality, alloy steel, polyurethane coated.
Proof Load:
Each system proof-loaded to 200% of capacity (certified) up to a test force of 400t.
Display:
6 digits, ½" (12mm) liquid crystal display. Overload warnings (100%/130%), low battery indication, Gross/Net. Refresh rate 1Hz.
Sampling Rate:
200 per second.
Functions:
Zero, Tare, Battery level indication, Low battery warning, Max. (peak hold).
Units:
User selectable units (metric tons, short tons, kgs., Ibs.,Newtons, Deca-Newtons, Kilo-Newtons.
Indicator/Load Cell Housing:
High quality ABS.
Temperature Range:
Load cell: -15°F to +175°F (-25°C to +80°C), Indicator: -4°F to +158°F (-20°C to +70°C)
Environmental:
Load Cell: IP67, Indicator: IP65

  **Note: Use shackles with S.W.L (Safe Working Load) EQUAL TO, OR GREATER THAN SYSYTEM'S FULL RANGE

Technical Specifications

Key Features

• Highly Accurate: ± 0.1% of full range - important for early overload detection
• Resistant: IP67 Offshore protection for load cell
• Robust: Heavy duty designs with shock absorbing mechanisms
• Minimal Headroom Loss: Smallest on the market - important for indoor applications
• Meets Standards: All Eilon Engineering load cells are Fatigue Rated according to ASME BTH-1-2017, ASME B30.26 and IEC 61508
