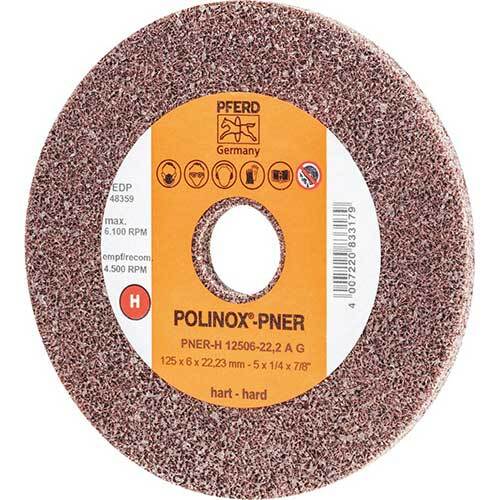

Pferd Polinox PNER Unitized Grinding Wheel

• POLINOX Ring Wheels Unitized Discs
• POLINOX unitized wheels PNER and unitized discs PNER consist of multiple layer, strongly compressed non-woven material, bonded with a special grit resin system.
• Type for straight grinders, flexible shafts and bench grinders: Particularly suitable for work on smaller surfaces

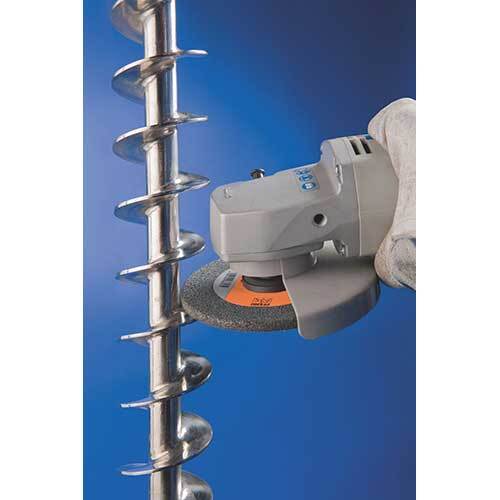

• Type for speed-adjustable angle grinders and fillet weld grinders: They are especially suitable for work on fillet welds and very hard-to-reach slots or indentations.

• Roughening
• Deburring
• Surface work
• Cleaning
• Structuring (matt finishing, brush matting and satin finishing)
• Fine grinding in multiple steps

Drive types:

• Flexible shaft drive
• Straight grinder
• Bench grinder
• Stationary machines

• When working on materials with poor heat conductivity, e.g. titanium and stainless steel, significantly reduce the cutting speed
• Flexible shafts, electric and air-powered straight grinders as well as angle grinders and fillet weld grinders can be used as tool drives
• Designed for use on straight grinders and flexible shaft drives. Particularly suitable for work on small surfaces of stainless steel (INOX) and titanium alloy components.
• Unmounted grinding wheels with diameter 150 mm can also be used on grinding blocks, for reworking surgical instruments for example.
• Abrasives: A = Aluminium oxide C = Silicon carbide (SiC)
• POLINOX unitized wheels PNER achieve their best performance at a cutting speed of 15̐35 m/s. This provides an ideal compromise between stock removal, surface quality, themal load on the workpiece and tool wear.

Safety notes

• For safety reasons, it is imperative to remain within the stated maximum permitted rotational speed at all times

Materials that can be worked:

• Aluminium
• Cobalt-based alloys
• Other non-ferrous metals
• High-temperature-resistant materials
• Nickel-based alloys (e. g. Inconell and Hasteloy)
• Bronze
• Hard non-ferrous metal
• Titanium
• Titanium alloys
• Copper
• Soft non-ferrous metal
• Brass
• Zinc
• Stainless steel (INOX)
• Thermoplastics
• Fibre-reinforced duroplastics (GRP, CRP)
• Hardened, heat-treated steels over 1,200 N/mm2 (over 38 HRC)
• Steel materials with a hardness over 54 HRC
• Steel, cast steel
• Steels up to 1,200 N/mmÅ’_ (< 38 HRC)
• Cast steel
