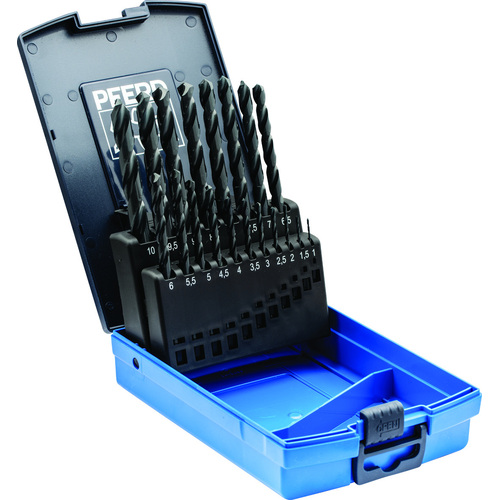

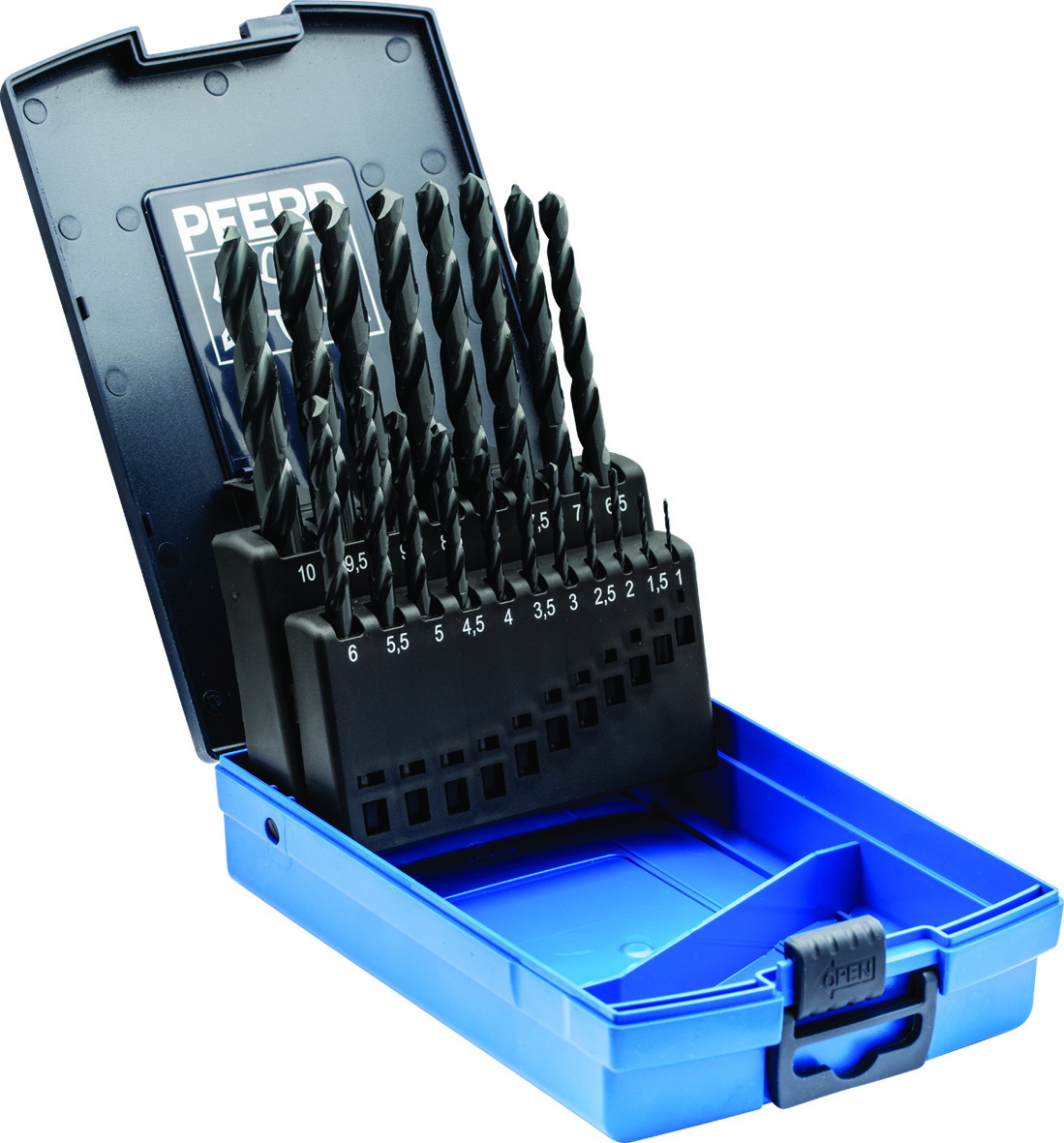

Pferd Drill Bit Set HSSG N Steel - 25203701

  • Full ground drill bits with cross grinding.
  • Diameter in mm: 1.0, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0, 6.5, 7.0, 7.5, 8.0, 8.5, 9.0, 9.5, 10.0.

DIN 338 HSSG N STEEL Drill Bit Sets

  • Includes a sturdy plastic box that protects the drills.
  • Easy drill selection & storage.
  • High-speed steel twist drill bits.
  • Suitable for general use on steel, cast steel, grey cast iron, annealed cast iron, bronze, brass, aluminium.
  • Easy centring, long tool life & good chip removal.
  • High-performance drilling tools in the STEEL in HSSG (M2) type for industrial uses.
  • Fully ground, right-hand turning version with cross grinding.
  • They are precision ground both in the chip flute and the guide chamfer as well as at the drill tip.
  • They also have cross-grinding.
  • These drills are suitable for highly precise positioning on workpieces and support centring during drilling.

Recommendations for use

  • Observe the recommended rotational speed.
  • When drilling metals, use a high-quality cutting oil or cooling lubricant, if possible.
  • This facilitates smooth running and extends the drill tool's life. Exception: when working on aluminium, use kerosene instead of cutting oil.
  • In order to avoid corrosion, remove any particles which develop when working on stainless steel (INOX) from the workpiece.
  • Clean the workpiece chemically or mechanically (etching/polishing, etc.).

Specifications

  • AIMS SKU A0178598
  • Brand Pferd
  • Model Number 25203701
  • Barcode Number 4007220168172
  • Type Burr
SKU: A0178598

Pferd Drill Bit Set HSSG N Steel 1 - 10mm, 19 Pieces - 25203701

Pferd Drill Bit Set HSSG N Steel - 25203701

$121.69
