Description

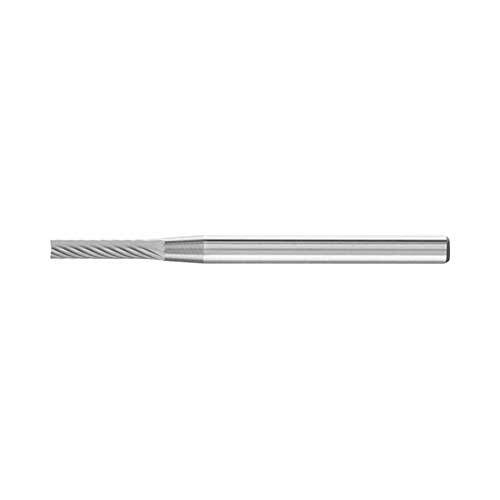

Pferd Burr Miniature Shank Cylindrical End Cut ZYAS C5

  • Miniature Burr ZYAS Shank - Cylindrical End Cut ZYAS
  • Cylindrical burr according to DIN 8032 with circumferential and end cut according to DIN 8033.

  • GL = total length (solid tungsten carbide)

Cut Applications
  • Fine machining of cast iron, steel < 60 HRC, stainless steel (INOX) and high-temperature-resistant materials such as nickel-based and cobalt-based alloys
Burr Applications
  • Deburring
  • Contouring
  • Edge chamfering/rounding
  • Milling out in preparation for build up welding
  • Preparation of weld seams/weld dressing
  • Cleaning cast material
  • Modification of workpiece geometry



Materials that can be worked:

  • Hard aluminium alloys
  • Hard non-ferrous metal
  • Bronze
  • Other non-ferrous metals
  • Titanium
  • Titanium alloys
  • Stainless steel (INOX)
  • Steel, cast steel
  • Hardened, heat-treated steels over 1,200 N/mm2 (over 38 HRC)
  • Case-hardened steels
  • Tool steels
  • Steel
  • Steels up to 1,200 N/mmŒ_ (< 38 HRC)
  • Cast steel

Applications:

  • Milling out
  • Leveling
  • Deburring
  • Cutting out holes
  • Surface work
  • Milling
  • Weld dressing

Drive types:

  • Flexible shaft drive
  • Straight grinder
  • Stationary machines
  • Robot applications
  • Machine tool

Classification

profi class 5.0 AAC147c013
eclass 8.1 21180609
eclass 7.0 21180609
eclass 4.1 21010504

Specifications

  • AIMS SKU A0151271
  • Brand Pferd
  • Model Number 21200153
  • Barcode Number 4007220049464
  • Shank Diameter 3 mm
  • Head Size (Diameter x Length) 2 x 10 mm
  • Overall Length 40 mm
  • Type Burr
  • Cut C5 - Premium - Hard Materials
SKU: A0151271

Pferd Burr Miniature 3mm Shank Cylindrical End Cut 2 x 10mm C5 21200153

Pferd Burr Miniature Shank Cylindrical End Cut ZYAS C5

$24.95
RRP $27.45
SAVE $2.50 (9%)
