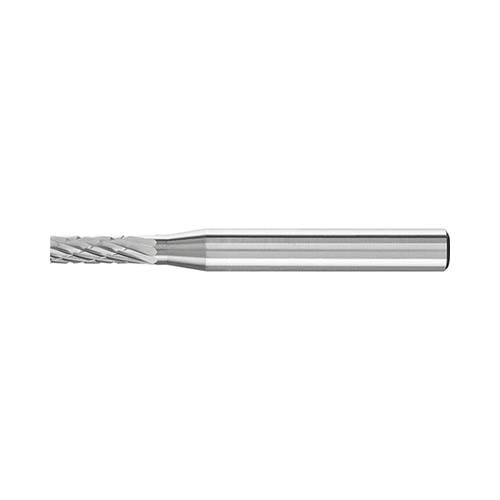

Pferd Burr Cylindrical Shank ZYA C3 Plus

• Cylindrical Burr ZYA Shank ZYA C3 PLUS
• Cylindrical burr according to DIN 8032 with cut conforming to DIN 8033.
• GL = total length (solid tungsten carbide)
• SL = shank length (long steel shank)

Materials that can be worked:

• Hard aluminium alloys
• High-temperature-resistant materials
• Cobalt-based alloys
• Other non-ferrous metals
• Nickel-based alloys (e. g. Inconell and Hasteloy)
• Stainless steel (INOX)
• Cast iron
• Grey/nodular cast iron (GG/GJL, GGG/GJS)
• Annealed cast iron
• Black cast iron (GTS, GJMB)
• White annealed cast iron (GTW, GJMW)
• Steel, cast steel
• Hardened, heat-treated steels over 1,200 N/mm2 (over 38 HRC)
• Case-hardened steels
• Tool steels
• Steel
• Steels up to 1,200 N/mm≈í_ (< 38 HRC)
• Cast steel

Drive types:

• Flexible shaft drive
• Straight grinder
• Stationary machines
• Robot applications
• Machine tool

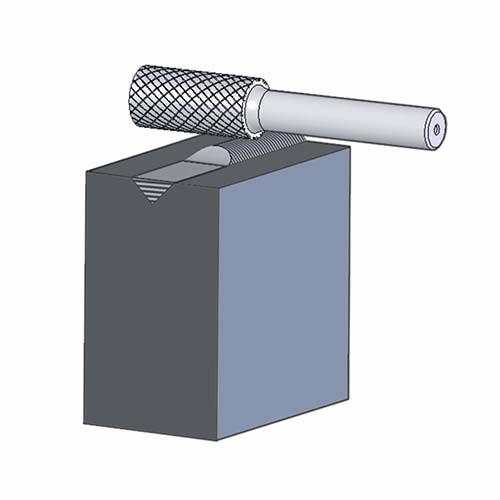

Cut Applications

• Machining of cast iron, steel < 60 HRC, stainless steel (INOX), nickel-based alloys and titanium alloys
• High stock removal

Burr Applications

• Deburring
• Contouring
• Edge chamfering/rounding
• Milling out in preparation for build up welding
• Preparation of weld seams/weld dressing
• Cleaning cast material
• Modification of workpiece geometry

Applications:

• Milling out
• Leveling
• Deburring
• Cutting out holes
• Surface work
• Milling
• Weld dressing
