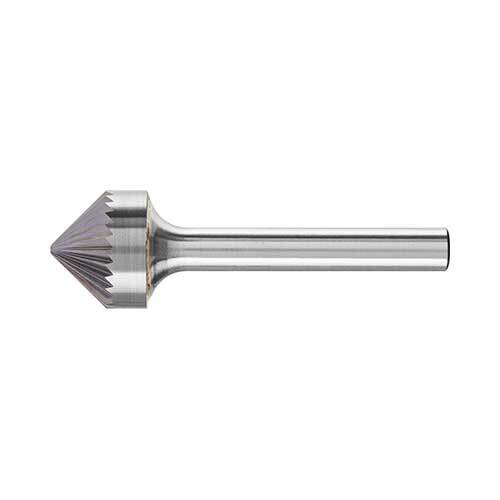

Pferd Burr Conical (Included Angle) Shank KSK C3

• Conical (Included Angle) Burr
• Conical counterbore burr according to DIN 8032 with cut conforming to DIN 8033, with angle (90ŒÁ). The KSK 0603/6 (double-ended) type is cut and usable on both sides. Suitable for flexible counterboring and chamfering.

•  Machining of cast iron, steel < 60 HRC, stainless steel (INOX), nickel-based alloys and titanium alloys
• High stock removal

• Deburring
• Contouring
• Edge chamfering/rounding
• Milling out in preparation for build up welding
• Preparation of weld seams/weld dressing
• Cleaning cast material
• Modification of workpiece geometry

Materials that can be worked:

• Hard aluminium alloys
• Soft aluminium alloys
• Hard non-ferrous metal
• Bronze
• Other non-ferrous metals
• soft non-ferrous metal
• Copper
• Soft non-ferrous metal
• Brass
• Zinc
• Stainless steel (INOX)
• Cast iron
• Grey/nodular cast iron (GG/GJL, GGG/GJS)
• Annealed cast iron
• Black cast iron (GTS, GJMB)
• White annealed cast iron (GTW, GJMW)
• Steel, cast steel
• Hardened, heat-treated steels over 1,200 N/mm2 (over 38 HRC)
• Case-hardened steels
• Tool steels
• Steel
• Steels up to 1,200 N/mmŒ_ (< 38 HRC)
• Cast steel

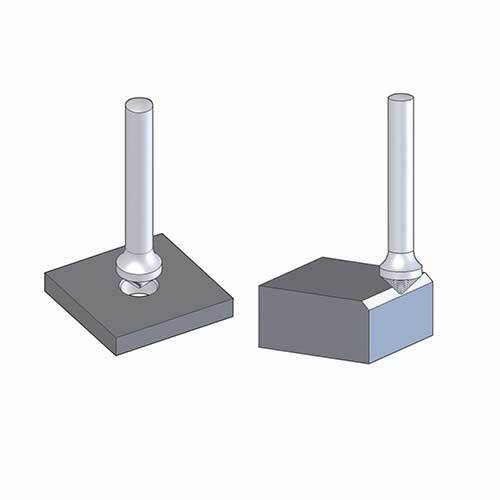

Applications:

• Deburring
• Milling
• Work on edges
• Chamfering
• Countersinking

Drive types:

• Flexible shaft drive
• Straight grinder
• Stationary machines
• Robot applications
• Machine tool
