Description

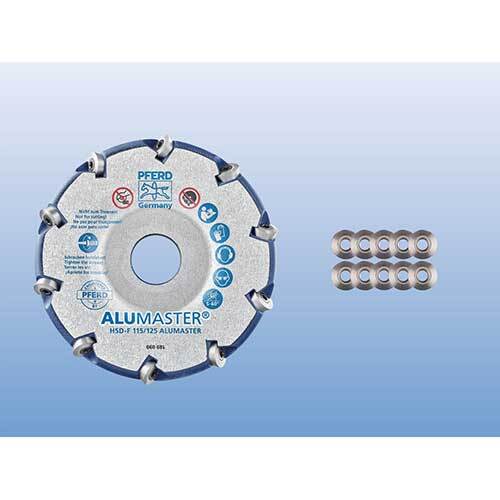

Pferd Alumaster High Speed Disc
- ALUMASTER High Speed Disc HSD-F 115/125 ALUMASTER
- The innovative ALUMASTERå¬ High Speed Disc is a unique tool with an extremely high stock removal performance, which was specially developed for use on angle grinders.
- The latest new development from PFERD is ideal for processing aluminium as it does not generate hazardous or explosive dust.
- The special design of the tool also guarantees maximum safety.
- It consists of ten specially developed tungsten carbide cutting inserts, which are fixed to the very light, but extremely robust GRP disc.
- The innovative geometry of the disc and the possibility of turning or replacing the cutting inserts when they are worn allow the very long and cost-effective use of this uniquely safe solution for processing aluminium.
Advantages:
- Extremely high stock removal performance
- Maintains the user's health as no hazardous or explosive dust is generated
- Maximum safety thanks to the innovative cut geometry and the integrated depth gauge
- Very light and still extremely robust tool thanks to the innovative GRP disc (weight similar to that of reinforced grinding wheels)
- Can be used on all standard angle grinders (dia. 115/125 mm)
- Can be used in almost any location as you do not need an extractor unit
- Extremely long tool life because of the innovative disc geometry as well as the specially developed turnable and replaceable tungsten carbide cutting inserts
- The tool does not clog up even on lubricating materials
- Cost-effective and eco-friendly alternative to reinforced grinding wheels and flap wheels
Recommendations for use:
- For cost-effective use, preferrably use on air angle grinders with a power output of at least 1,000 watts or electric angle
grinders with a nominal power of at least 1,400Ì_watts. - Do not exert unnecessarily high force on the angle grinder: The ALUMASTERå¬ High Speed Disc already works with low forces. The weight of the angle grinder is enough.
- Use the tool at an angle of 5Ì30åÁ, in special cases of up to 60åÁ.
- Avoid deep penetration. The milling disc is not a cutting tool.
- Process workpiece edges along and not against the workpiece edge.
- Do not decelarate the tool on the workpiece. The cutting inserts might break.
Application fields:
- Ship- and yacht building
- Construction of railway wagons
- Silo and tank construction
- Vehicle construction Application examples:
- Work on butt and fillet welds
- Work on edges/chamfering
- Modification of geometries
Safety notes:
- The tool is designed for use on aluminium, wrought aluminium alloys and cast aluminium only.
- The flange nut has to be tightened with the appropriate tool, e.g. face wrench.
- Clamping systems which are tightened without additional tools, i.e. only manually, by design are not permitted.
- Tighten the fastening screws of the cutting inserts with the torx wrench included.
- Alternatively, you can use a torque wrench with a tightening torque of 4 Nm.
- Loose cutting inserts might break during use.
- Check whether they are attached securely on a regular basis.
- Do not use damaged cutting inserts! They might break!
- Only use original accessories from PFERD.
Specifications
- Size: 115 / 125mm
Specifications
- AIMS SKU A0155569
- Brand Pferd
- Model Number 22000009
- Barcode Number 4007220026106
- Type Disc
