Description

Descriptions

  • P&N Workshop Jobber Drills feature a Titanium tip for added wear resistance
  • The highest wear is incurred at the drill tip and cutting edges to depths twice the drill diameter
  • The P&N Workshop drill range with its TiN coated tip is protected where it matters

Features

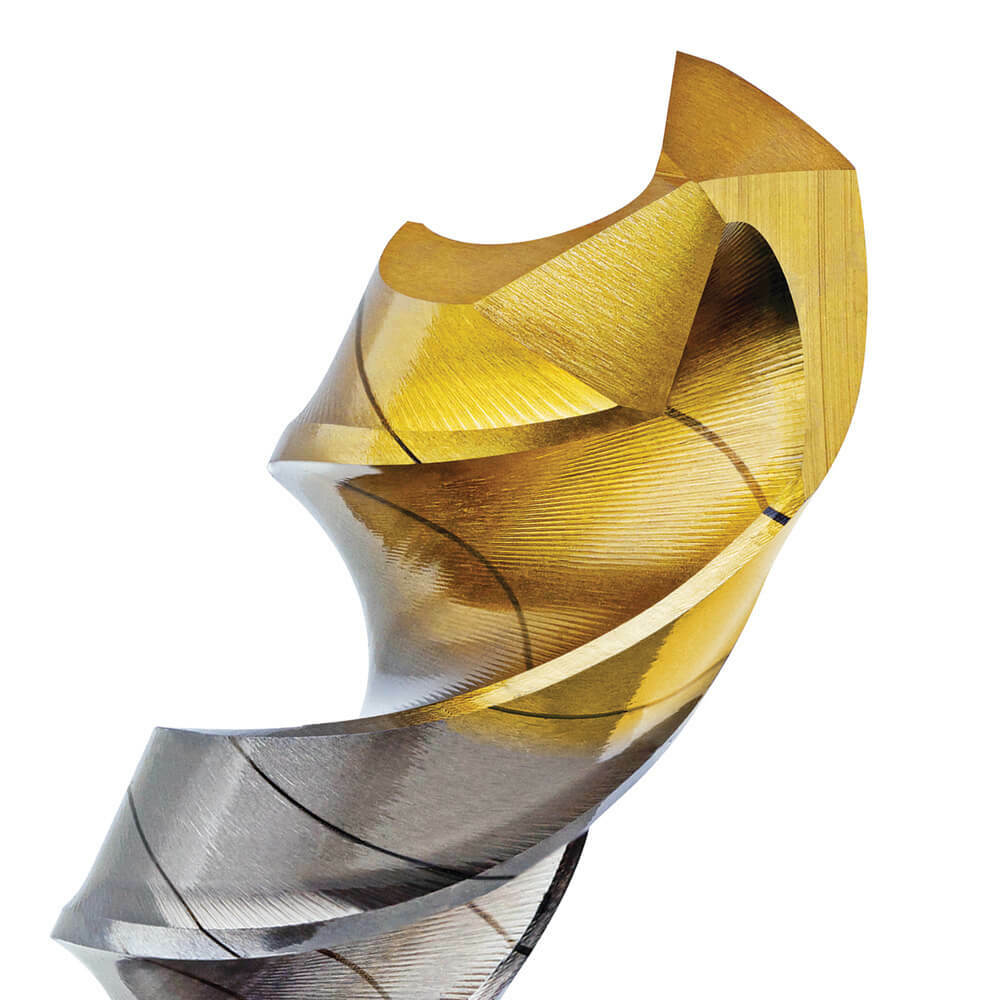

  • 135° split point enables accurate positioning and less drilling pressure
  • Parabolic flute design for increased chip evacuation
  • Drill depth indicator clearly identifies drilling depth
  • Precision engineered parallel shank for accurate hole size
  • Made from HSS Co. The 5% cobalt formula improves abrasive & heat resistance, for increased strength at higher cutting temperatures
  • TiN coated tip for 3 x longer life

Specifications

  • Designation: N
  • Material: High Speed Steel
  • Finish: TiN
  • Maximum Cut Depth: 5XD
  • Shank Form: A
  • Helix Angle: R30
  • X: als
  • Point Tolerance: h8
  • Point Angle: 118°
  • Cutting Edges: ul

Specifications

  • AIMS SKU A0001671
  • Brand P&N
  • Model Number 165320394
  • Barcode Number 9311744442492
  • Thread Diameter (mm) 1
  • Overall Length (mm) 34
  • Flute Length (mm) 12
  • Group Code 1653
  • Type Jobber Drill Bit
  • System of Measurement Metric
  • Material High Speed Steel (HSS)
  • Finish Titanium Nitride (TiN)
  • Helix Angle R30
  • Point Tolerance h8
  • Shank Form A
  • Maximum Cut Depth 5XD
  • Point Angle 118
SKU: A0001671

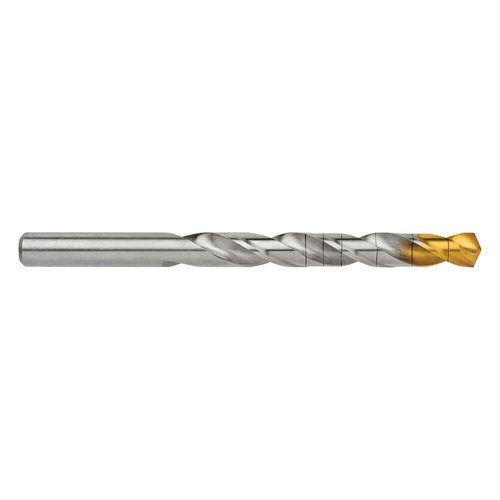

P&N 165320394 Workshop 1.00mm Jobber Drill Bit - HSS TiN Titanium Tip Twin Pack

P&N Workshop Jobber Drill Bits

$4.20
RRP $7.16
SAVE $2.96 (41%)
