Specifications

AIMS SKU A0105353
Brand NACHI
Model Number NU306/NACHI

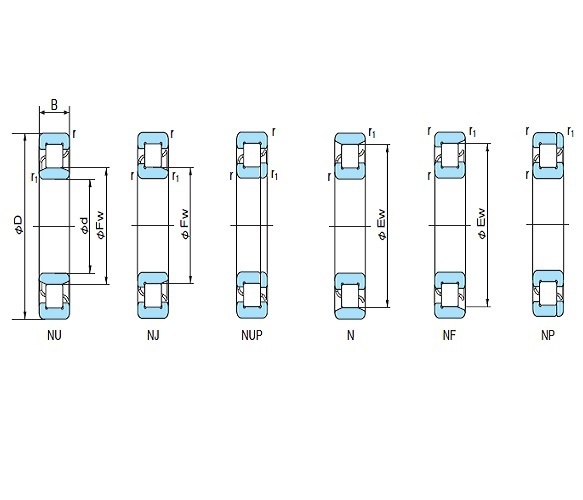

Bore Diameter x Outer Diameter x Width (mm) 30 x 72 x 19
R (min) 1.1
Basic Dynamic Load Rating (n) 38500
Basic Static Load (N) 35000
Limiting Speed (rpm) Grease Lubrication 8500
Limiting Speed (rpm) Oil Lubrication 11000

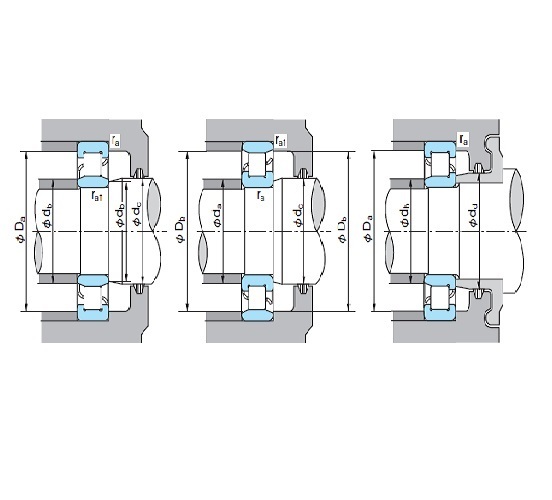

Abutment And Fillet Dimension Da (min) Mm 37
Abutment And Fillet Dimension Da (max) Mm 65
Abutment And Fillet Dimension Ra (max) Mm 1

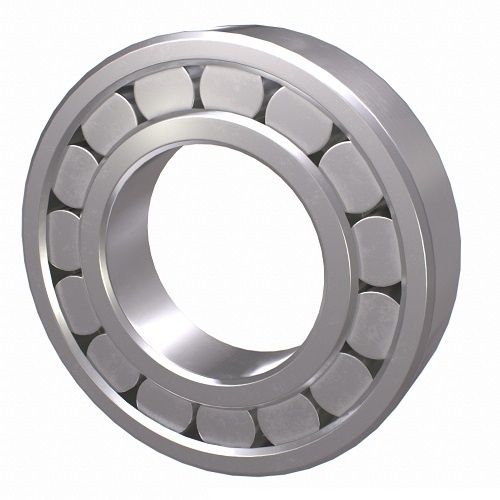

• Type Cylindrical Roller Bearings
• System of Measurement Metric
• Series No. 200 - 300
