Description

Tapered Roller Bearings

  • Tapered roller bearings are roller bearings with conical rollers.
  • These bearings are designed to support heavy radial loads and heavy thrust loads in one direction.

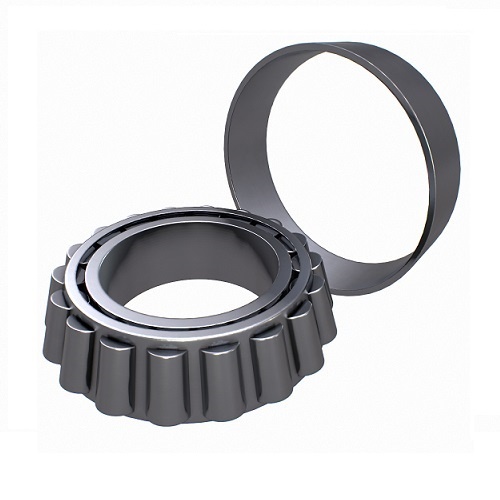

  • Tapered roller bearings are generally separable; for example, the cone, consisting of the inner ring with roller assembly, can be mounted separately from the cup (outer ring).
  • Single Row Imperial Dimensions Tapered Roller Bearing designed to accommodate combined loads, i.e. simultaneously acting radial and axial loads.

Specifications

  • AIMS SKU A0105009
  • Brand NACHI
  • Model Number 30316J/NACHI
  • Limiting Speed (rpm) Grease Lubrication 2300

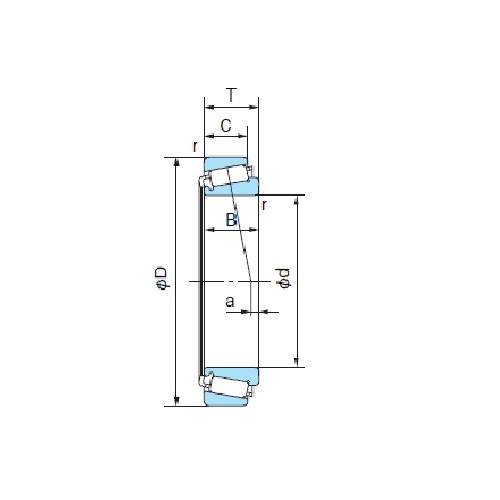

  • Bore Diameter x Outer Diameter x Width (mm) 80 x 170 x 42.5

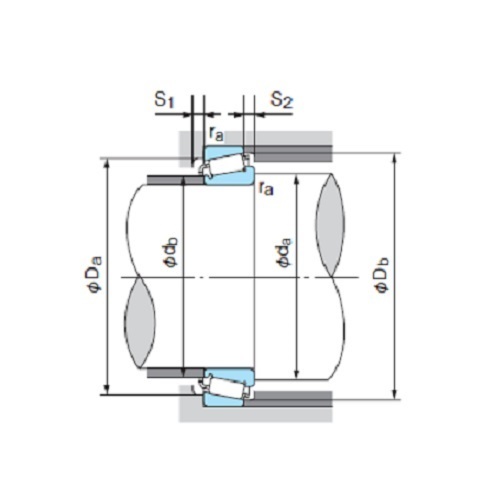

  • Abutment And Fillet Dimension Da (min) Mm 94
  • Basic Static Load (N) 355000
  • Limiting Speed (rpm) Oil Lubrication 3100
  • Basic Dynamic Load Rating (n) 294000
  • Type Tapered Roller Bearings
  • System of Measurement Metric
  • Series 30203-32311
SKU: A0105009

NACHI 30316J Tapered Roller Bearings 30300 Series 80 x 170 x 42.5mm

Tapered Roller Bearings Metric 30300 Series

$215.86
