Description

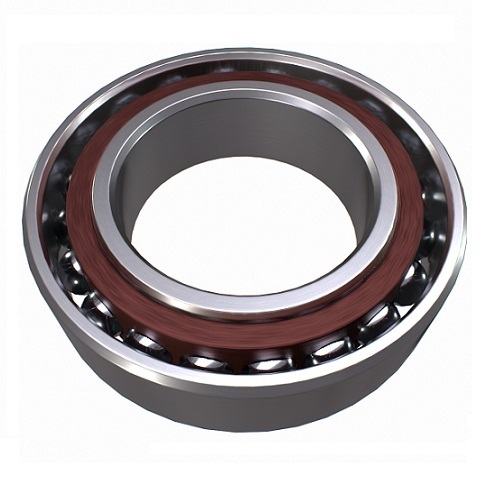

Angular Contact Ball Bearings

  • Single row extra light, light & medium series bearings for combined radial and one directional axial load.
  • Angular contact ball bearings can sustain combined loads of simultaneously acting radial and axial loads because they have a contact angle.

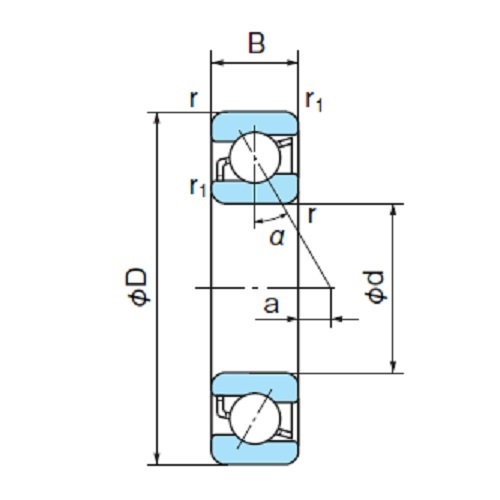

  • The contact angle is defined as the angle between the line joining the points of contact between the ball and the raceways in the radial plane.

Specifications

  • AIMS SKU A0105416
  • Brand NACHI
  • Model Number 7017CYDU/GLP4/NACHI
  • Bore Diameter x Outer Diameter x Width (mm) 85 x 130 x 22
  • R (min) 1.1
  • Basic Dynamic Load Rating (n) 60500
  • Basic Static Load (N) 59000
  • Limiting Speed (rpm) Grease Lubrication 7400
  • Limiting Speed (rpm) Oil Lubrication 10000
  • Type Angular Contact Ball Bearings
  • System of Measurement Metric
  • Series No. 7000 - 7200
SKU: A0105416

NACHI 7017CYDU Angular Contact Ball Bearings 7000-7200 Series 85 x 130 x 22mm

Angular Contact Ball Bearings 7000-7200 Series
