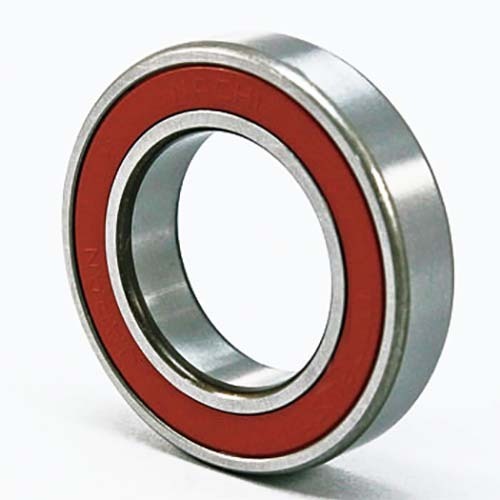

NACHI 6308-2NSEC3 Sealed Deep Groove Ball Bearing 40x90x23 mm, C3
Available
The NACHI 6308-2NSEC3 is a single row deep groove ball bearing with two contact rubber seals (2NSE). It measures 40 x 90 x 23 mm (bore x outer diameter x width) and carries a basic dynamic load rating of 40,500 N and a basic static load rating of 24,100 N.
Deep groove bearings are the most widely used ball bearing type: they carry radial, axial and combined loads and run at high speed with high running accuracy. This one has a radial internal clearance of C3 (15 to 33 µm radial).
Where this product is used
- Electric motors and generators
- Pumps, fans and blowers
- Gearboxes and industrial transmissions
- Conveyor rollers, idlers and pulleys
- Power tools, appliances and general industrial machinery
Features
- Two contact rubber seals (2NSE) retain the factory grease fill and give excellent dust and water proofing, including in severe dust environments
- Seal contact adds friction torque, so limiting speed is lower than the equivalent open or shielded bearing
- C3 radial internal clearance (15 to 33 µm for a 40 mm bore), larger than Normal
- Basic dynamic load rating 40.5 kN, static 24.1 kN, with NACHI boundary dimensions to the ISO/JIS standard plan
Key specifications
| Specification | Detail |
|---|---|
| Model | 6308-2NSEC3 |
| Type | Single row deep groove ball bearing |
| Bore d | 40 mm |
| Outer diameter D | 90 mm |
| Width B | 23 mm |
| Seals / shields | Two contact rubber seals (2NSE) |
| Radial internal clearance | C3 (15 to 33 µm radial) |
| Basic dynamic load rating Cr | 40,500 N |
| Basic static load rating Cor | 24,100 N |
| Limiting speed, grease | 5,300 rpm |
| Mass | 0.633 kg |
| Shaft shoulder diameter da (min) | 49 mm |
| Housing shoulder diameter Da (max) | 81 mm |
| Fillet radius ra (max) | 1.5 mm |
Selecting the right option
Contact-sealed bearings (NSE, NSL, NS) give the best dust and water proofing of the three closure types and can run in severe dust. The trade-off is higher friction torque and a lower limiting speed. The filled grease can leak at high speed or high temperature, or if the outer ring rotates. For standard filled grease the recommended temperature range is -25 to 100 °C.
Fitting and use
Check the load and speed against the catalogue figures in the table before ordering, and apply a suitable safety factor. These bearings must always carry a minimum radial load so the balls roll rather than slide, and heavy axial loads should be checked with AIMS before ordering.
Press the ring that is being fitted, not the other ring or the balls: force goes through the side face of the inner ring on a shaft and the outer ring in a housing.
Sealed bearings are built for inner ring rotation, so they are not suited to high speed outer ring rotation. Do not wash or heat sealed bearings before mounting.
Related products
The same NACHI deep groove range is also available with other closures: NACHI open C3 deep groove ball bearings (28 sizes) and NACHI double shielded C3 deep groove ball bearings (1 size).
