Description

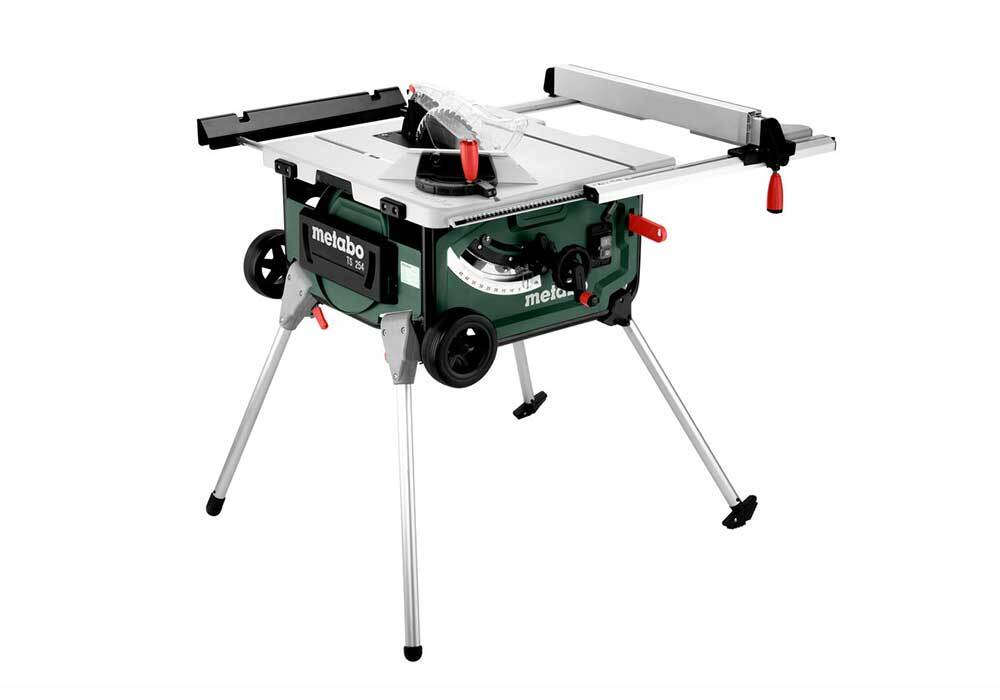

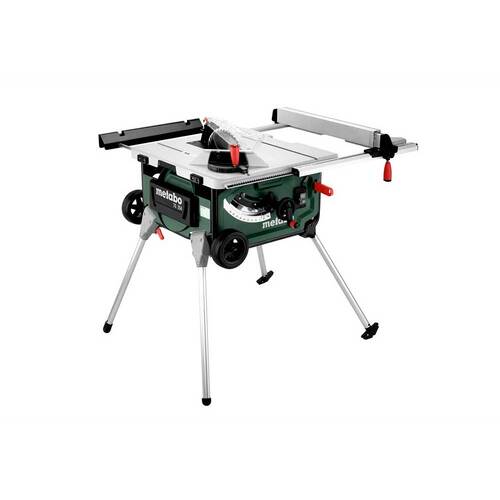

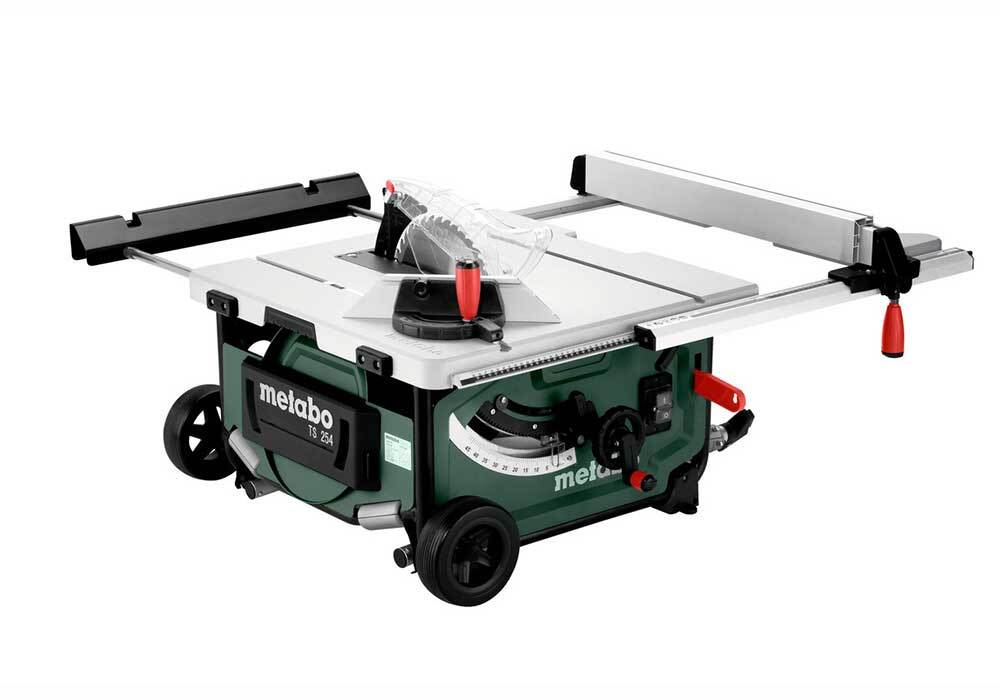

Metabo Table Saw - TS 254 (600668190)

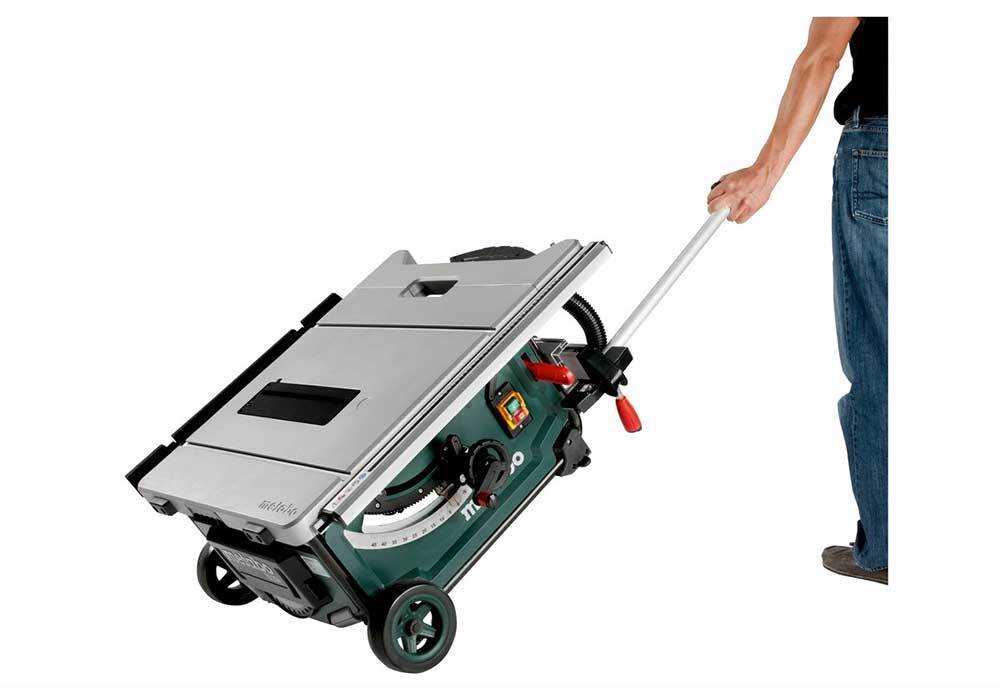

Extremely light table saw with trolley function for more mobility on the construction site.
Integrated stand made from stable die-cast aluminium (patented): unfolded in a matter of seconds with secure stand.
Very compact with folded stand for comfortable transport and space-saving storage.
Second working height for working near ground level.
Anti-twist tubular frame construction for the highest demands on the building site and during installations.
Cables and all add-on components for transport can be stored on the casing.
Powerful motor with electronic overload protection.
Motor brake for quick stop of the saw blade in 3 seconds.
Restart protection: prevents unintentional start-up after a power supply interruption.
Soft start for the long service life of motor and drive.
Precise rip fence with double clamping and quick fastening.

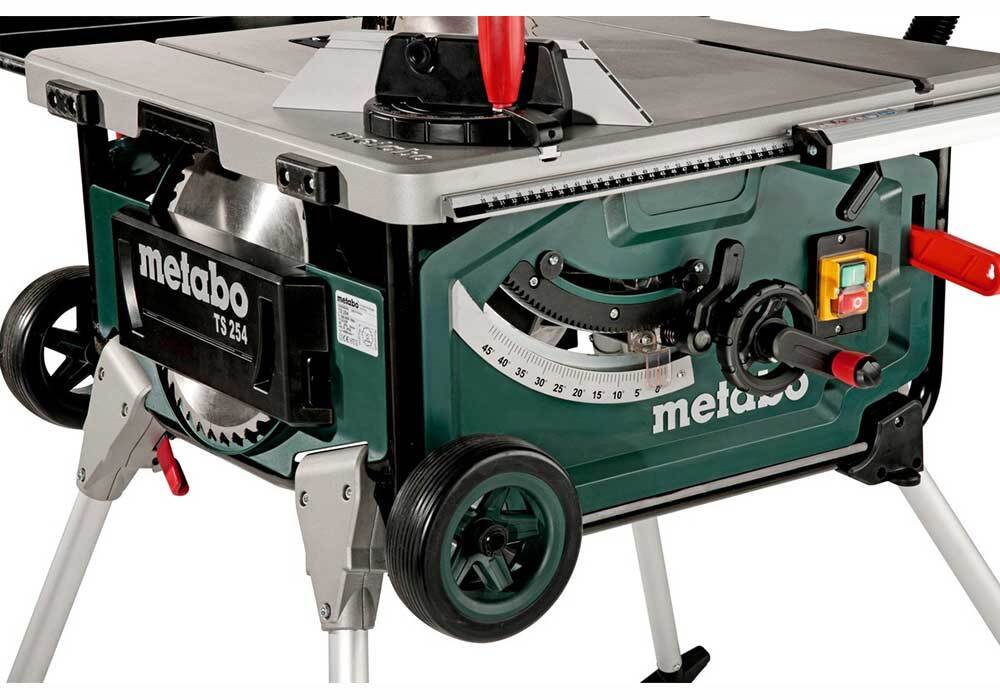

Precise saw blade inclination via gear guide.
Automatic resetting to 0 – 45 ° after undercuts.
Easy saw blade change with spindle lock.
Splitting wedge can be lowered without tools for hidden cuts and transport.
Precise, extendable table width extension for extra large working surfaces.

Note

The machine shown may differ in equipment and technical details depending on the configuration.
Kindly pay attention to the content and product description.
Accessories are included only if listed in the contents.

Contents

Technical Data

Characteristics

Dimensions	740 x 750 x 355 mm // 2.5 x 2.5 x 1.2 ft
Max. support surface	970 x 995 mm // 38 3/16 x 39 3/16 "
Working height	850 / 355 mm // 33 1/2 / 14 "
Cutting height	0 - 87 mm // 0 - 3 3/8 "
Maximum cutting height 90/45°	87 / 54 mm // 3 7/16 / 2 "
Maximum cutting width at rip fence	630 mm / 24 3/4 "
Maximum material width at mitre fence	200 mm / 7 7/8 "
No-load speed	4200 rpm
Cutting speed	56 m/s / 184 ft/s
Saw blade	254 x 30 mm // 10 x 1.181 "
Saw blade swivel range	-1.5 - 46.5 °
Mains voltage	220 - 240 V
Rated input power	2000 W
Rated input power S1 100%	1700 W
Rated input power S6 20%	2000 W
Weight	33.4 kg / 73.6 lbs
Cable length	3.1 m / 10 ft
